Trigger connections
This apparatus provides two standard 12v trigger output ports, used for connecting other units with TRIGGER INPUTS. This enables
a remotely triggered system.
If you have a Quad Artera system, we advise connecting the Trigger IN and OUT. This will enable all Artera units to be brought in
and out of standby at the same time.
To connect the Triggers, you will need a cable terminated with 3.5mm jack plugs. One end plugs into the TRIG IN of the slave unit

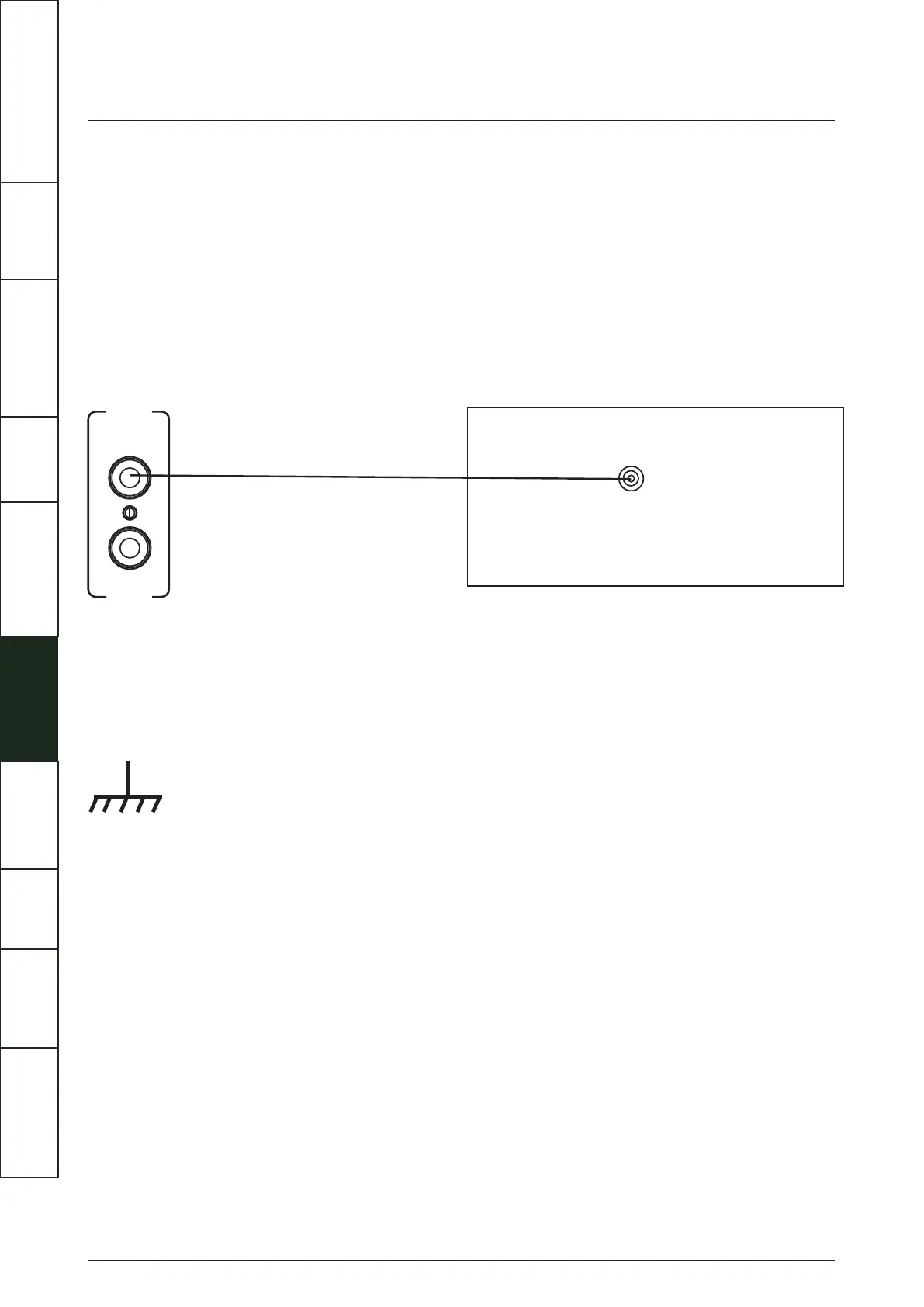

and the other to the TRIG OUT of the master control unit. In the diagram below we show how you can use the Artera Pre TRIG
OUT to switch the Artera Stereo Power Amplifier using its TRIG IN.
The GND terminal
The GND terminal should be used where you are connecting a turntable that is double-insulated and has a separate ground wire
connected to its tonearm. Please note that this terminal should only be used to reduce ‘hum’ in a system – it is NOT a safe ground
plane.
If you are in any doubt, please consult your dealer for advice.
