August 3, 2015
7037-135L
Page 13
4300 Wood Stove Series (ACC)
NOTE:
• Illustrations and photos refl ect typical installations and are FOR DESIGN PURPOSES ONLY.
• Illustrations/diagrams are not drawn to scale.
• Actual installation may vary due to individual design preference
• Hearth & Home Technologies reserves the right to alter its products.
Figure 13.3
Figure 13.1
Figure 13.2
Step-Top Uni-Body Model
USA
USA
CANADA

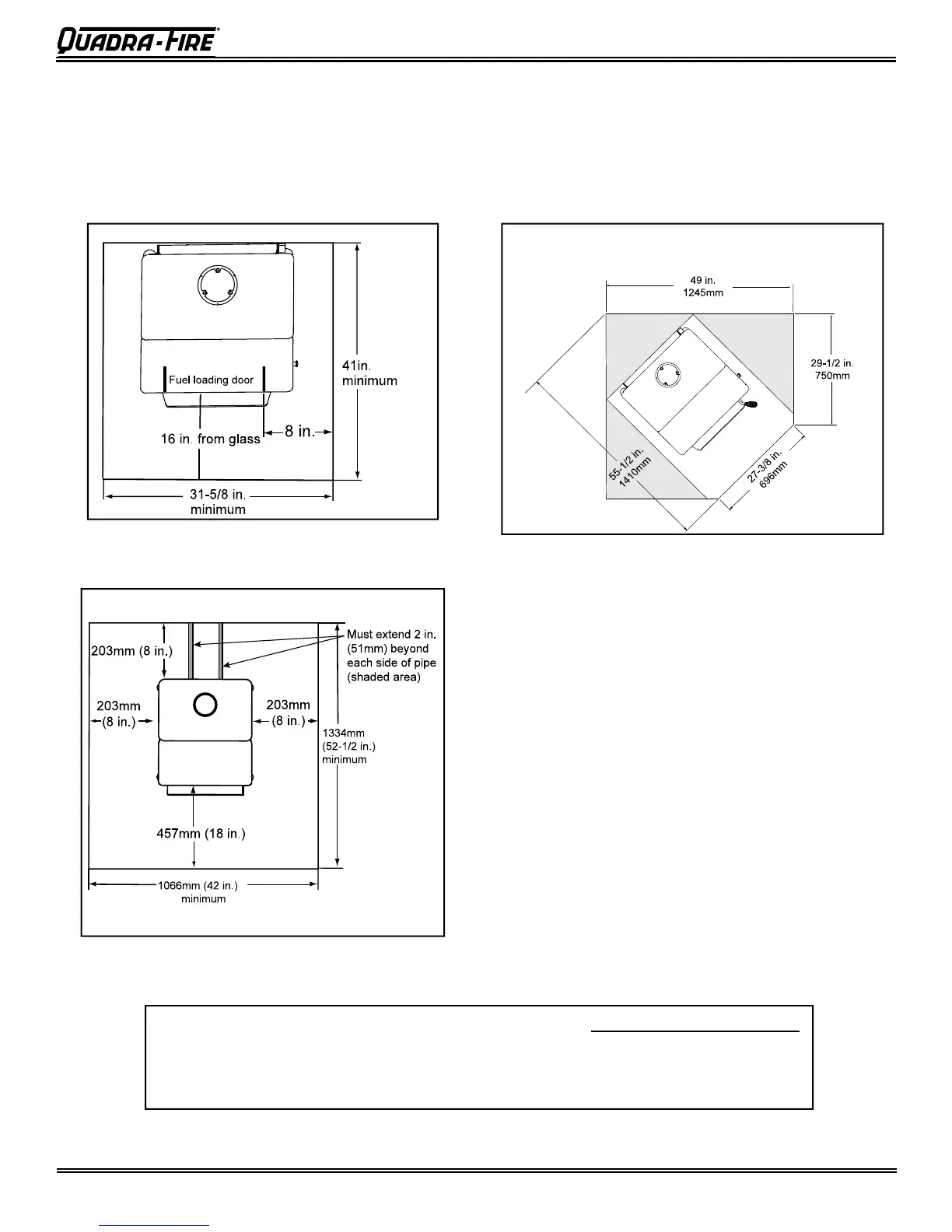

A. Hearth Protection Requirements (Cont’d)
Corner hearth pad dimensions with
single wall and double wall pipe
