Quadra-Fire 4300 - Typical Stove System

Page 8
7037-135L
August 3, 2015
4300 Wood Stove Series (ACC)

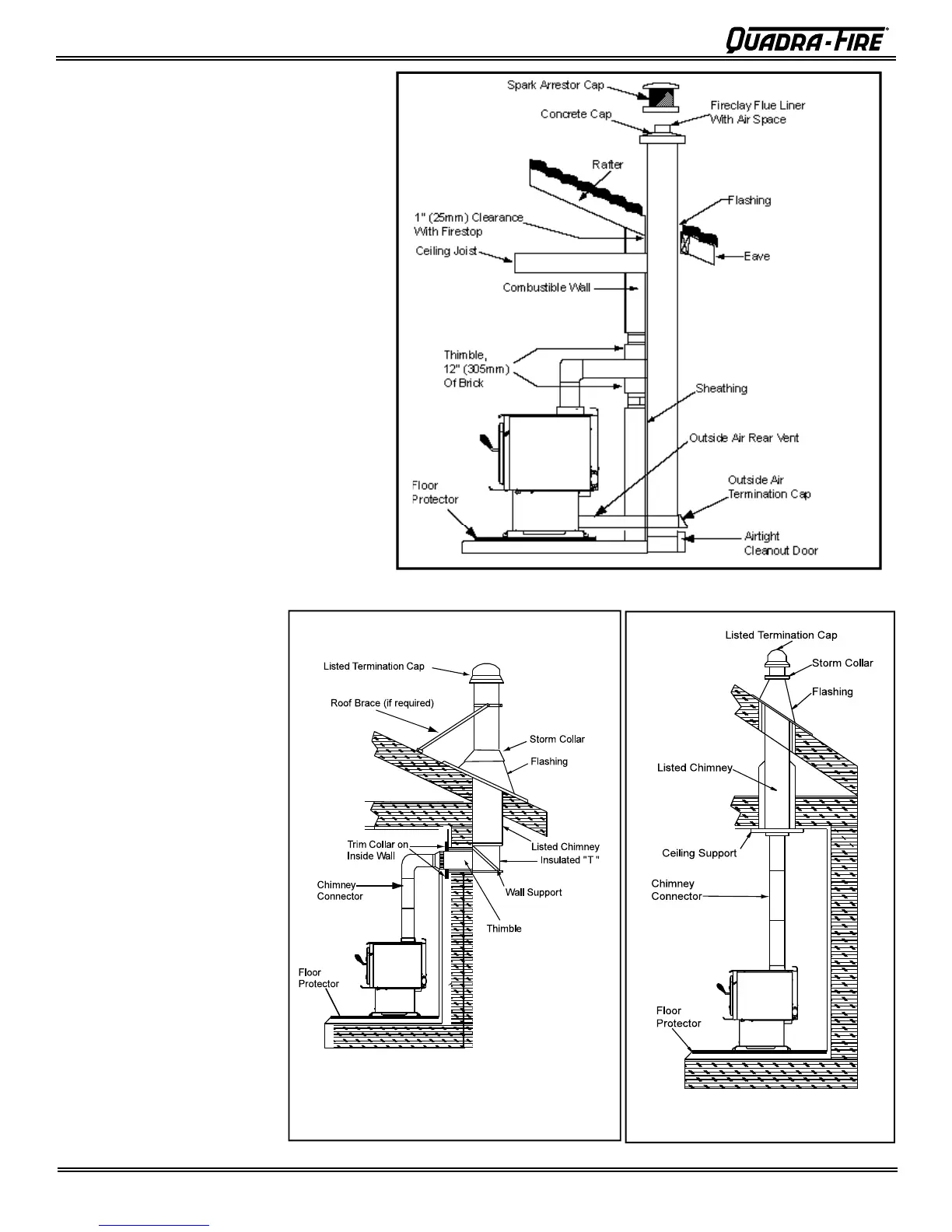

Figure 8.3 Interior Prefabricated ChimneyFigure 8.2 Exterior Prefabricated Chimney
Figure 8.1 Masonry Chimney
H. Typical Stove Systems
Stove system with masonry chimney
consists of:
• Stove
• Chimney Connector (stove pipe)
• Thimble
• Masonry Chimney
• Hearth Pad Floor Protection
• Stove
•
Chimney Connector
(stove pipe)
• Thimble (for exterior
chimney)
• Firestops
• Insulations Shields
• Storm Collar and Flashing
• Termination Cap
• Hearth Pad Floor Protec-
tion
Stove system with prefabricated
metal chimney consists of:
