Quadra-Fire 4300 - Baffl E Removal; Snap Disc Replacement

Page 36
7037-135L
August 3, 2015
4300 Wood Stove Series (ACC)
D. Baffl e Removal
1. Remove all ash from the fi rebox, and extinguish all hot
embers before disposal into a metal container.
2. The baffl e board has 2 pieces. With the ceramic blanket
still in place, slide one baffl e piece over the top of other one
and pull out top piece through the door opening and then
remove bottom baffl e piece.

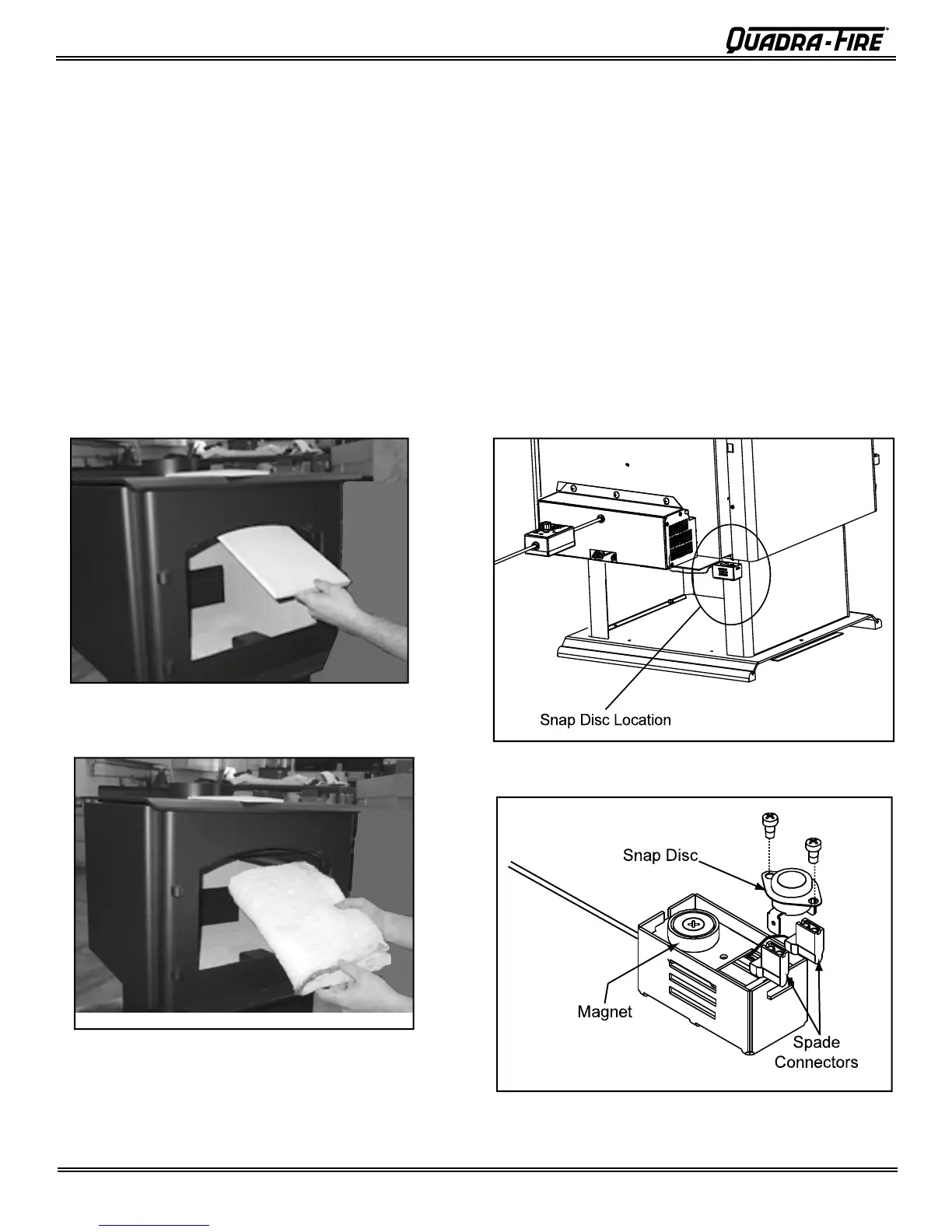

Figure 36.1.
3. Remove the ceramic blanket.
4. Re-install the baffl e pieces one piece at a time. Be sure
the baffl e boards are even with the front manifold tube and
is resting on all tubes.
Figure 29.1 on page 29.
5. To re-install the ceramic blanket, it is easier to fold it in
half fi rst. Place on top of baffl e board, open up and fl atten
and smooth out the blanket. Re-check the baffl e board for
correct positioning.
Figure 36.2.
Figure 36.1 - Baffl e
Figure 36.2 - Ceramic Blanket
E. Snap Disc Replacement
Figure 36.3
1. Locate the snap disc bracket assembly at the bottom left
rear corner of the stove.
Figure 36.3.
2. A magnet holds the bracket to the stove. Pull the bracket
down away from the stove to expose the snap disc.
3. Pull the snap disc and spade connectors up and out of
bracket as shown in
Figure 36.4.
4. Using a Phillips head screw driver, remove the 2 screws
from the snap disc and then remove the snap disc from
the spade connectors. Replace with new snap disc and
re-connect to spade connectors.
5. Push the snap disc and spade connectors back inside
bracket and re-attach the bracket to the stove.
Figure 36.4
