4300 Wood Stove Series (ACC)
Replace the fi rebrick if they become crumbly and/or if there
is a 1/4 inch (6.35mm) gap between the bricks.
Inspect the fi rebrick after each ash removal.
The fi rebox is lined with high quality fi rebrick, which has
exceptional insulating properties. There is no need to use a
grate; simply build a fi re on the fi rebox fl oor. Do not operate
appliance without fi rebrick.
1. After the coals have completely cooled, remove all old
brick and ash from unit and vacuum fi rebox.
2. Remove new brick set from box and lay out to diagram
shown.
3. Lay bottom bricks in unit.
4. Install rear bricks on the top of the bottom bricks. Slide
top of bricks under clip on back of fi rebox wall and push
bottom of brick back.
5. Install side bricks. Slide top of brick under clips on side
of fi rebox and push the bottom of the brick until it is fl ush
with the side of the appliance.
C. Firebrick Replacement
Use Part 832-0550 when ordering individual brick. Provide brick
dimension or copy this page, mark the desired brick and take it to
your authorized dealer.

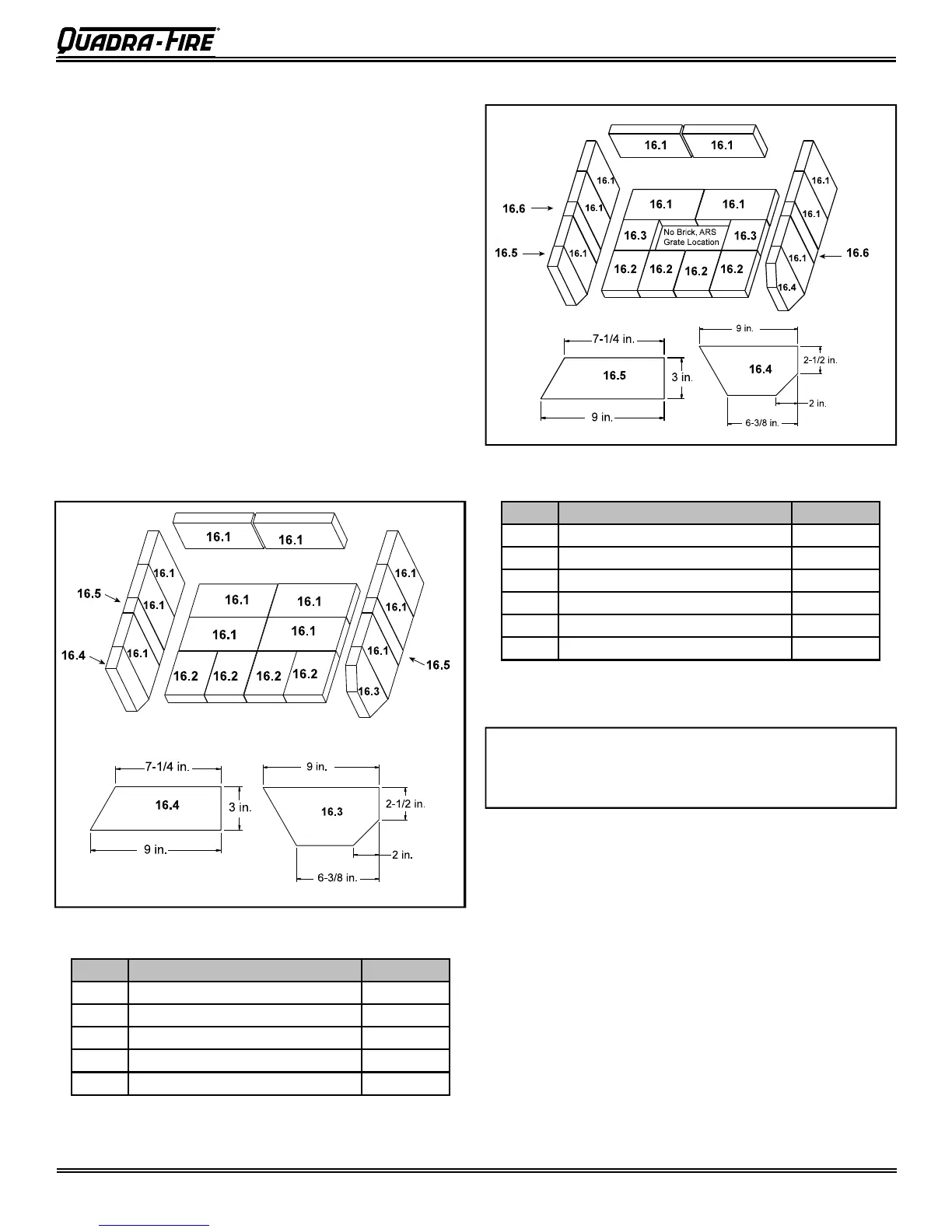

Figure 35.2 - 4300 Step Top Brick Assembly
NOTE: The Ash Removal System is only
available for the Step Top Model and not for
the Millennium Model.
Figure 35.1 - 4300 Millennium Top Brick Assembly
No. Brick Size Qty
1 9 x 4-1/2 x 1-1/4 12
26 x 4-1/2 4
3 9 x 4-1/2 with angles 1
4 9 x 3 with angle 1
5 9 x 2 x 1-1/4 2
No. Brick Size Qty
1 9 x 4-1/2 x 1-1/4 10
26 x 4-1/2 4
3 4-1/2 x 4-1/2 x 1-1/4 2
4 9 x 4-1/2 with angles 1
5 9 x 3 with angle 1
6 9 x 2 x 1-1/4 2
