Page 22
7037-135L
August 3, 2015
4300 Wood Stove Series (ACC)
Pedestal and Ash Removal System (Cont’d)

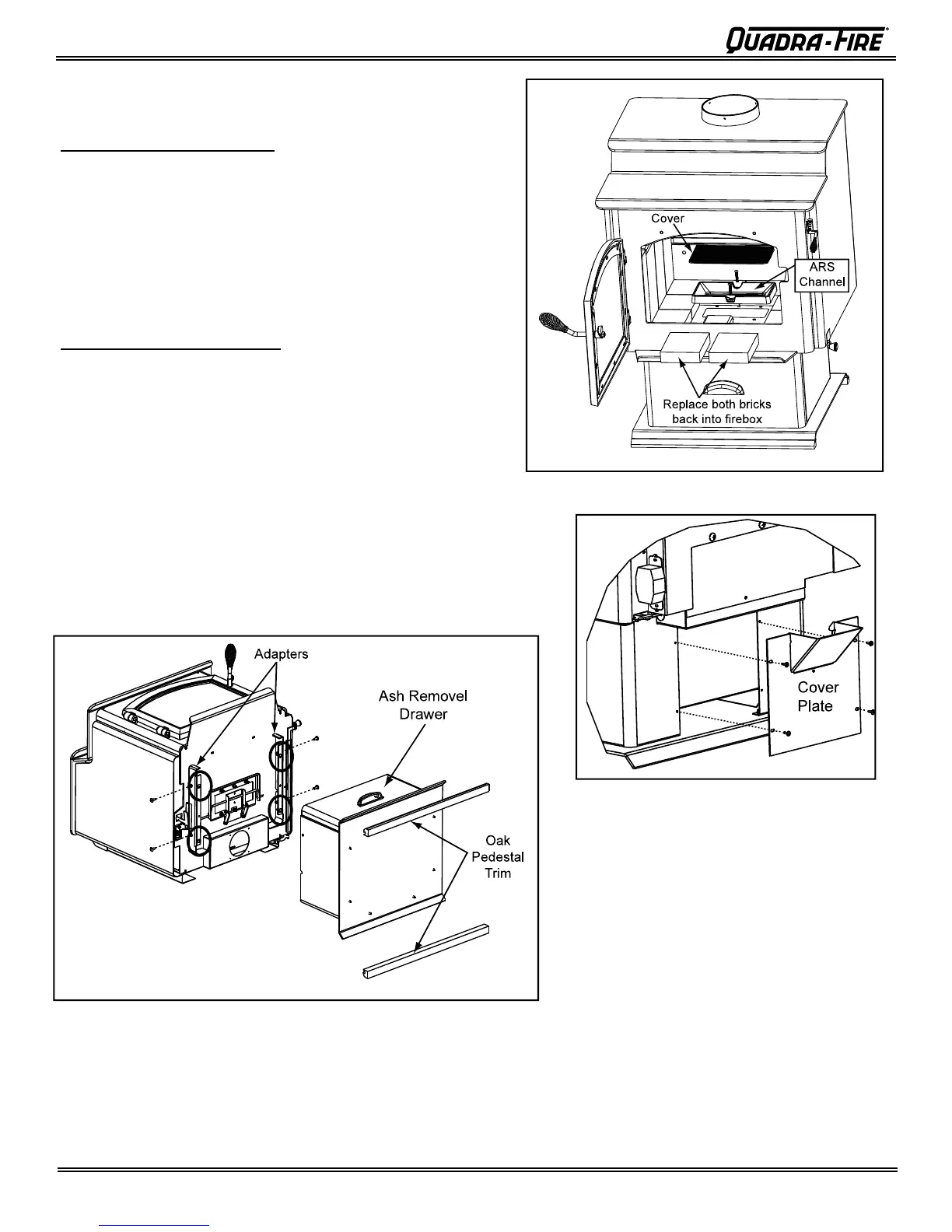

Figure 22.3
Figure 22.2
Figure 22.1
Installing Pedestal Assembly
1. Remove screws on adapter and slide pedestal over
adapter on bottom of stove. Figure 22.1.
2. Line up holes in sides of pedestal with holes in adapter.
3. Securely tighten pedestal into place.
4. Carefully stand stove up and place in desired location.
5. Slip wooden decorative strips onto pedestal edges.
Finishing the ARS Installation
1. Re-install the ARS channel that was removed in Step 3 on
page one
and secure with 2 bolts previously removed.
S
et the cover into the ARS channel Replace the 2
front cut bricks.
Figure 22.2.
2. Install the ash drawer.
3.
Check to make sure baffl e boards and ceramic blanket are
in their proper locations.
(see page 29)
.
NOTE:
If installing a fl oor installation of an outside air kit on a
Step Top model with a pedestal assembly you must attach
the enclosed cover plate to the back of the stove. Other
wise you may discard this piece.
Figure 22.3.
