Quadra-Fire CAB50-C User Manual

10 09/207074-803C

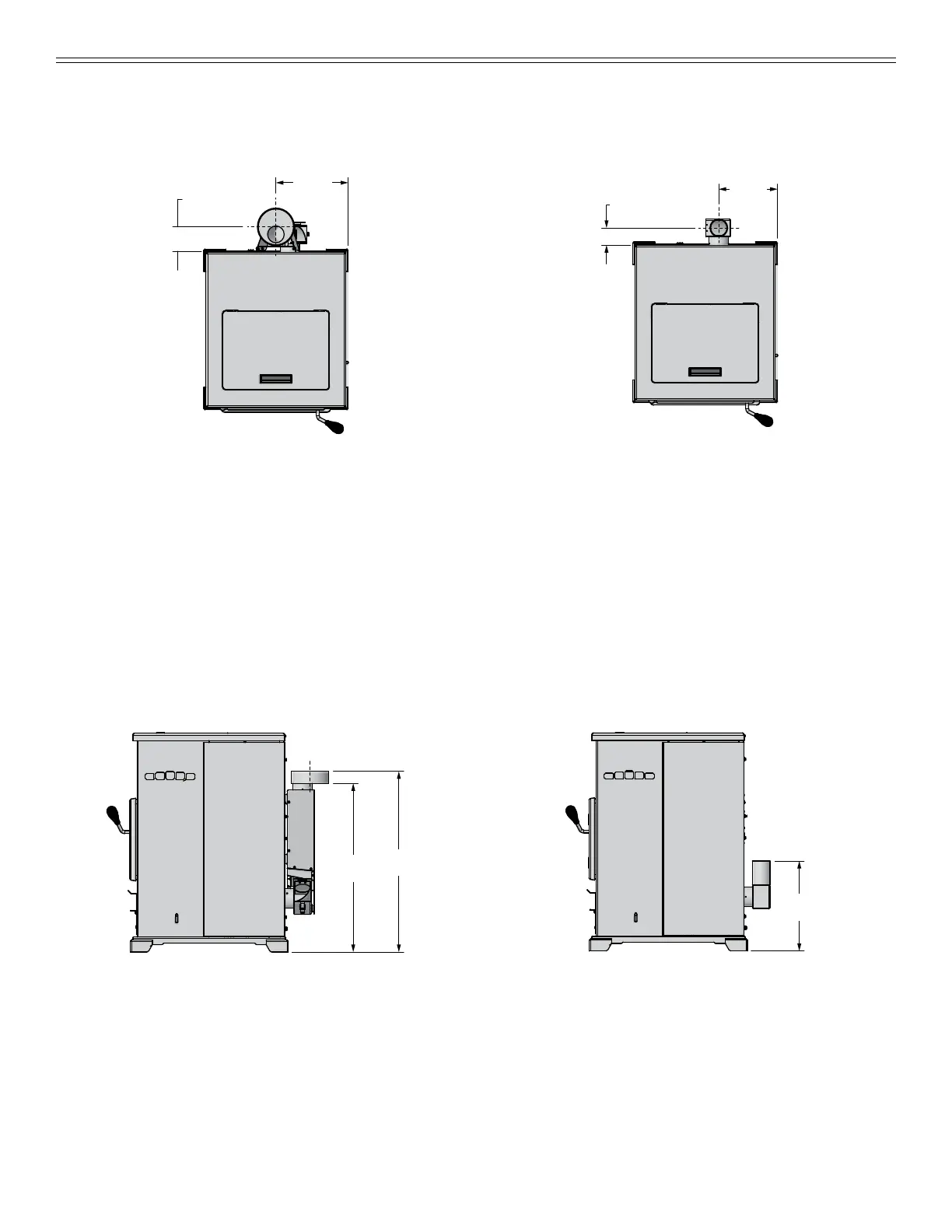

Figure 10.1 - Top View w/ Top Vent Adapter (TPVNT-5) &
3 to 6 inch O󰀨set Adapter (812-3570)
Figure 10.2 - Side View w/ Top Vent Adapter (TPVNT-5) &
3 to 6 inch O󰀨set Adapter (812-3570)
12-1/4 in
(311mm)
12-1/4 in
(311mm)
4-1/8 in
(103mm)
4-1/8 in
(103mm)
28-1/8 in
(714mm)
28-1/8 in
(714mm)
30-1/8 in
(765mm)
30-1/8 in
(765mm)
Figure 10.3 - Top View w/ Top Vent Adapter (TPVNT-6)
Figure 10.4 - Side View w/ Top Vent Adapter (TPVNT-6)
9-7/8 in
(252mm)
9-7/8 in
(252mm)
2-7/8 in
(73mm)
2-7/8 in
(73mm)
15-1/8 in
(383mm)
15-1/8 in
(383mm)
