Quadra-Fire Expression 36 - Installing Non-Combustible Facing Material

Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/1122
Fire Risk.
• Follow these instructions exactly.
• Facing materials must be installed properly to
prevent fi re.
• No materials may be substituted without
authorization by Hearth & Home Technologies.
WARNING
APPLY FASTENERS FROM
FASTENER PACKET IN
THESE AREAS
NON-COMBUSTIBLE
FACING MATERIAL
(SUPPLIED ATTACHED
TO BACK OF APPLIANCE).
STEEL BACK SUPPORT
(SUPPLIED ATTACHED TO
TOP OF APPLIANCE).

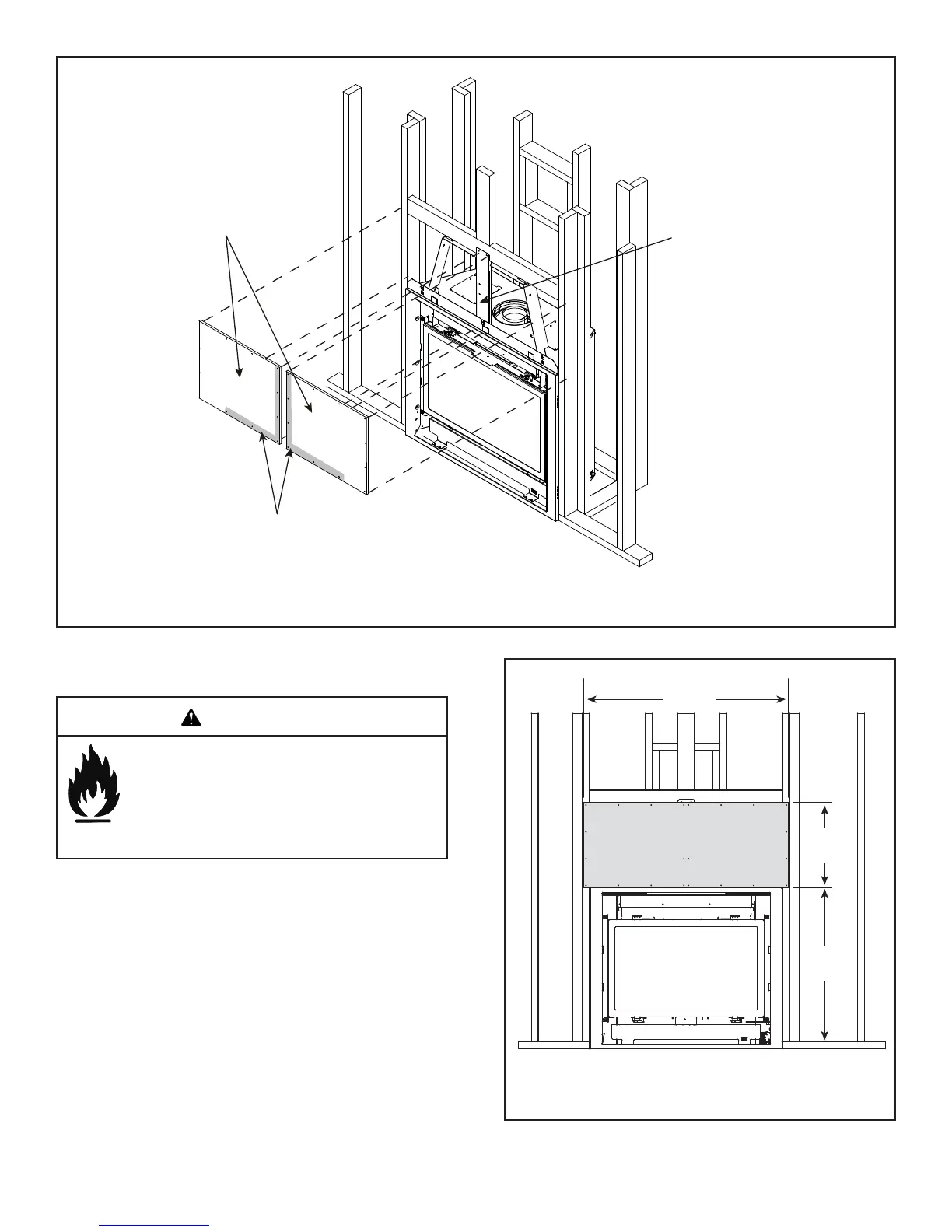

Figure 7.9 Attaching Non-combustible Facing Material
D. Installing Non-combustible Facing Material
• Center and attach two top boards to the framing
members. See Figure 7.10.
• Use fasteners from fastener packet (in manual bag) in
shaded areas.
• Use regular sheetrock screws in non-shaded areas.
• Use a wet or dry towel or soft brush to remove dust or
dirt from facing material.
• Apply a non-combustible adhesive to attach tile,
stone or other non-combustible fi nishing materials per
manufacturer’s instructions.
Figure 7.10 Complete Installation of Non-combustible
Facing Material
44 in.
1117 mm
18-1/4 in.
463 mm
34-5/8 in.
879 mm
Non-combustible
Zone
