Quadra-Fire Expression 36 - 3 Framing and Clearances; Selecting Appliance Location

Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/118
A
D
E
1/2 in.
F
B
C
F
3
3
Framing and Clearances
Note:
• Illustrations reflect typical installations and are FOR
DESIGN PURPOSES ONLY.
• Illustrations/diagrams are not drawn to scale.
• Actual installation may vary due to individual design
preference.
Fire Risk
Provide adequate clearance:
• Around air openings
• To combustibles
• For service access
Locate appliance away from traffi c areas.
A. Selecting Appliance Location
When selecting a location for your appliance it is important to
consider the required clearances to walls (see fi gure 3.1).

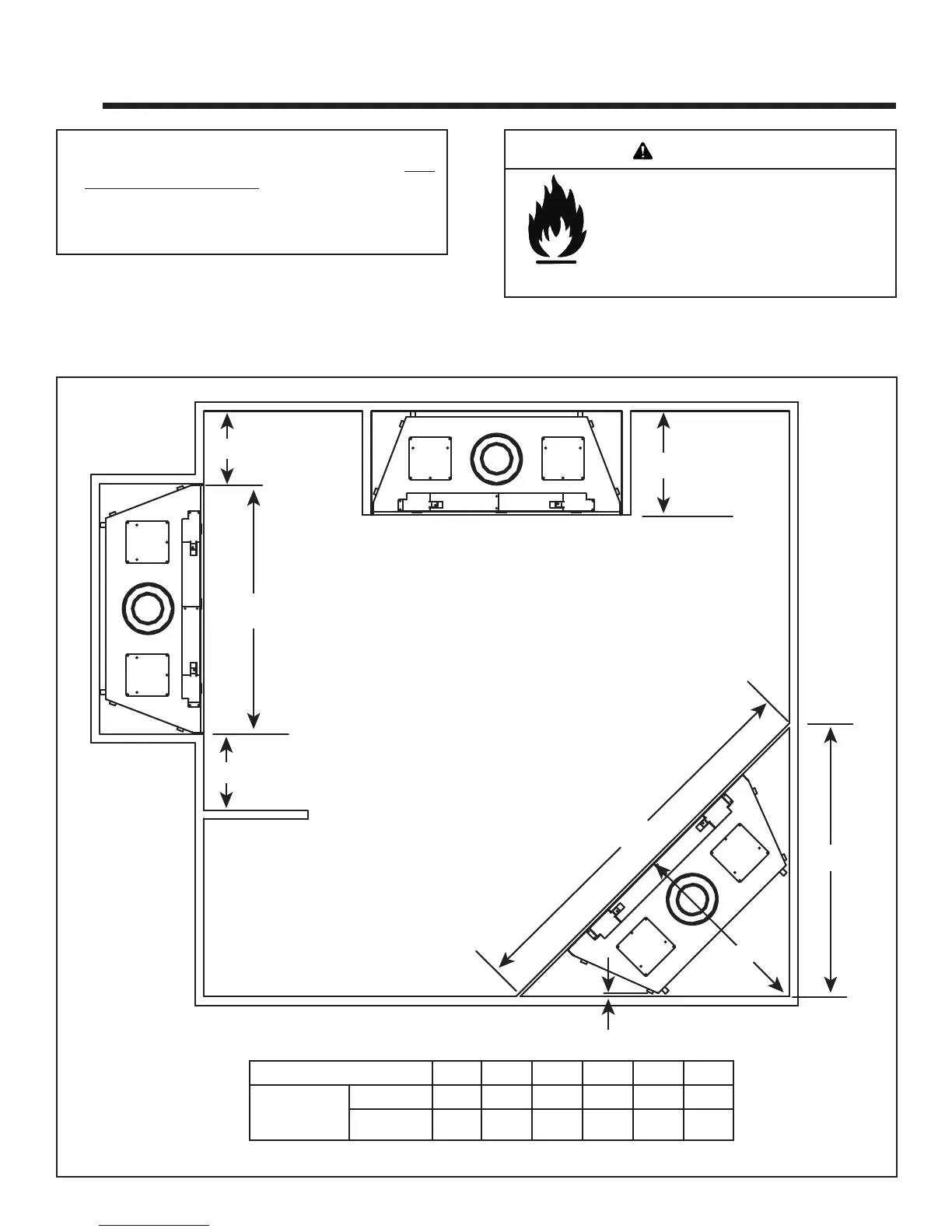

Figure 3.1 Appliance Locations
Note: For actual appliance dimensions refer to Sec-
tion 16.
In addition to these framing dimensions, also reference the following sections:
• Clearances and Mantel Projections (Sections 3.C and 3.D)
• Vent Clearances and Framing (Section 6).
WARNING
Model A B C D E F
Expression 36
(QV36A-FB)
Inches 41-1/2 17-1/4 32 45-1/4 64 12
Millimeters 1054 439 813 1150 1626 305
