Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/1150
16
16
Reference Materials
H
L
K
P
R
O
A
S
J
I
ø
F
C
G
E
V
U
T
B
D
M
Q
GAS
LINE
ACCESS
ELECTRICAL
ACCESS

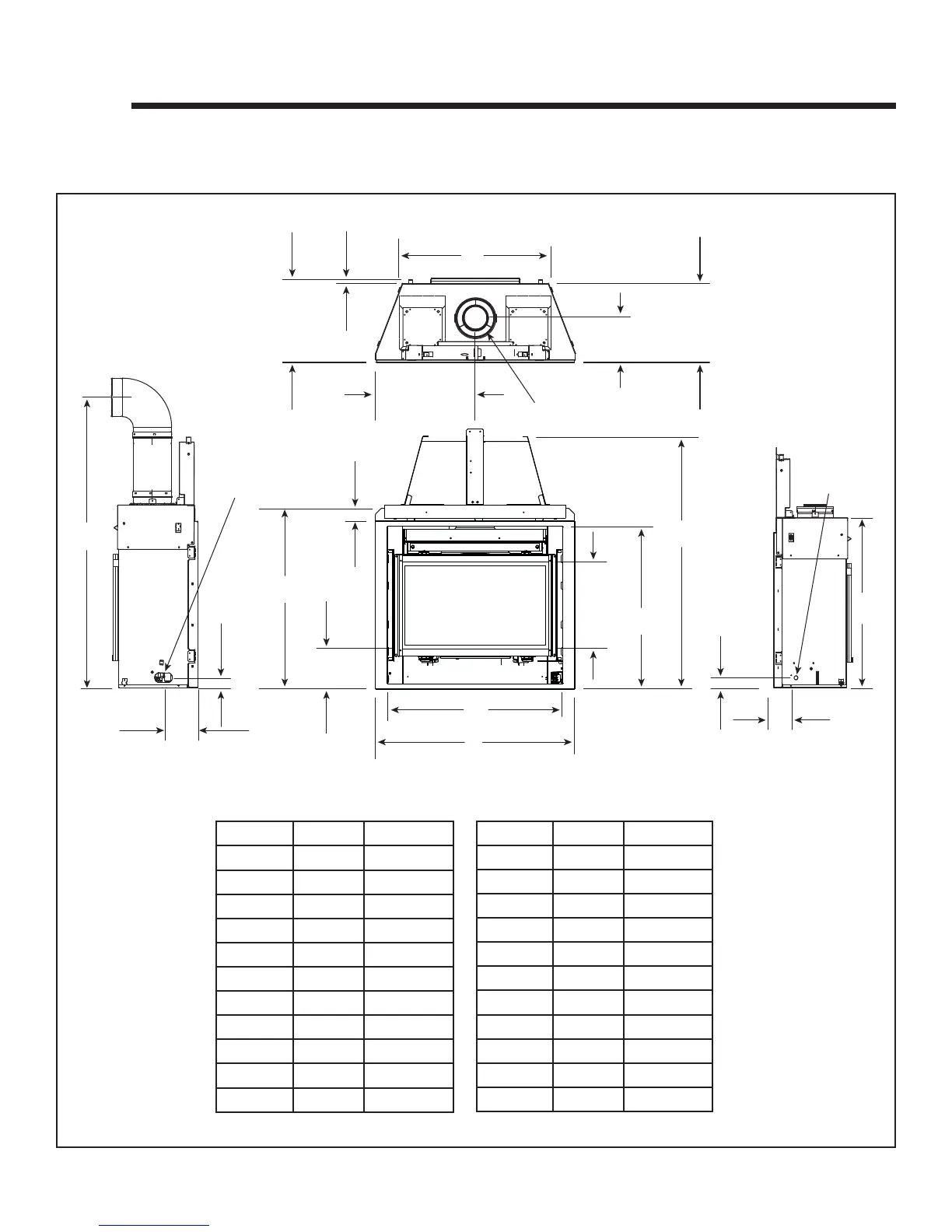

A. Appliance Dimension Diagram
Dimensions are actual appliance dimensions. Use for reference only. For framing dimensions and clearances refer to Section 3.
Figure 16.1 Appliance Dimensions
Location Inches Millimeters
L 37-1/4 945
M 8-3/8 212
N 30-1/2 776
O 36-1/8 916
P 41 1043
Q 17-7/8 455
R 33-1/2 852
S 52 1321
T 2-1/4 56
U 5 126
V 34-1/2 876
Location Inches Millimeters
A 17-1/4 437
B1 24
C 31-3/8 798
D 16-1/4 413
E 9-3/8 238
F 8 202
G 20-1/2 521
H 53-3/4 1365
I 2-1/8 54
J 7 177
K 2-5/8 67
