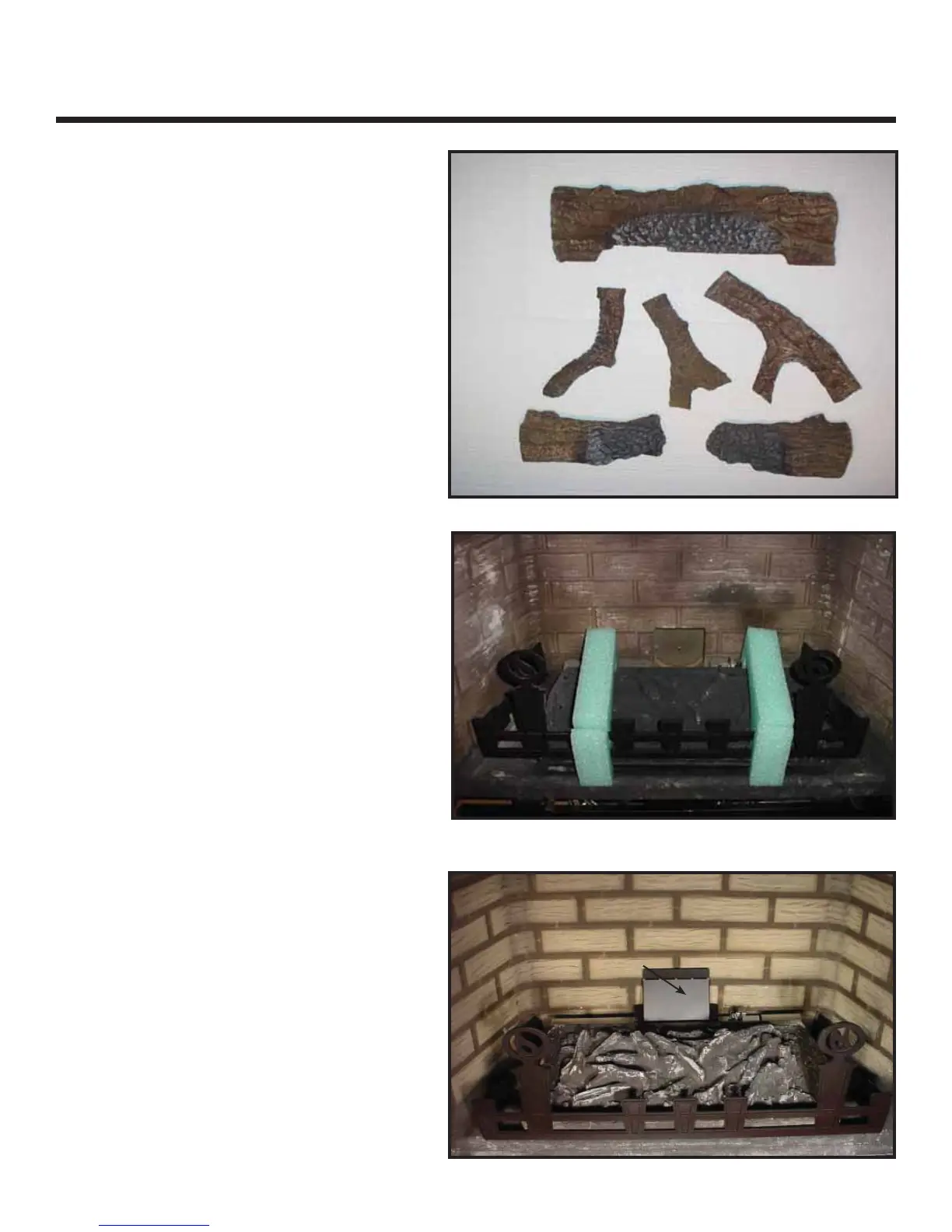

E. Positioning the Logs
Carefully remove the logs from the packaging.
CAUTION: Logs are fragile!
Figure 12.1
1
1
6
6
5
5
4
4
3
3
2
2
Carefully remove the grate from the foam sup-
ports and then remove the foam supports from
around the burner.
Figure 12.2
Place grate on the base of the fi rebox surround-
ing the burner. The grate should be centered on
the burner and pushed back until it contacts the
burner.
Figure 12.3
AIR
BAFFLE
