Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/1128

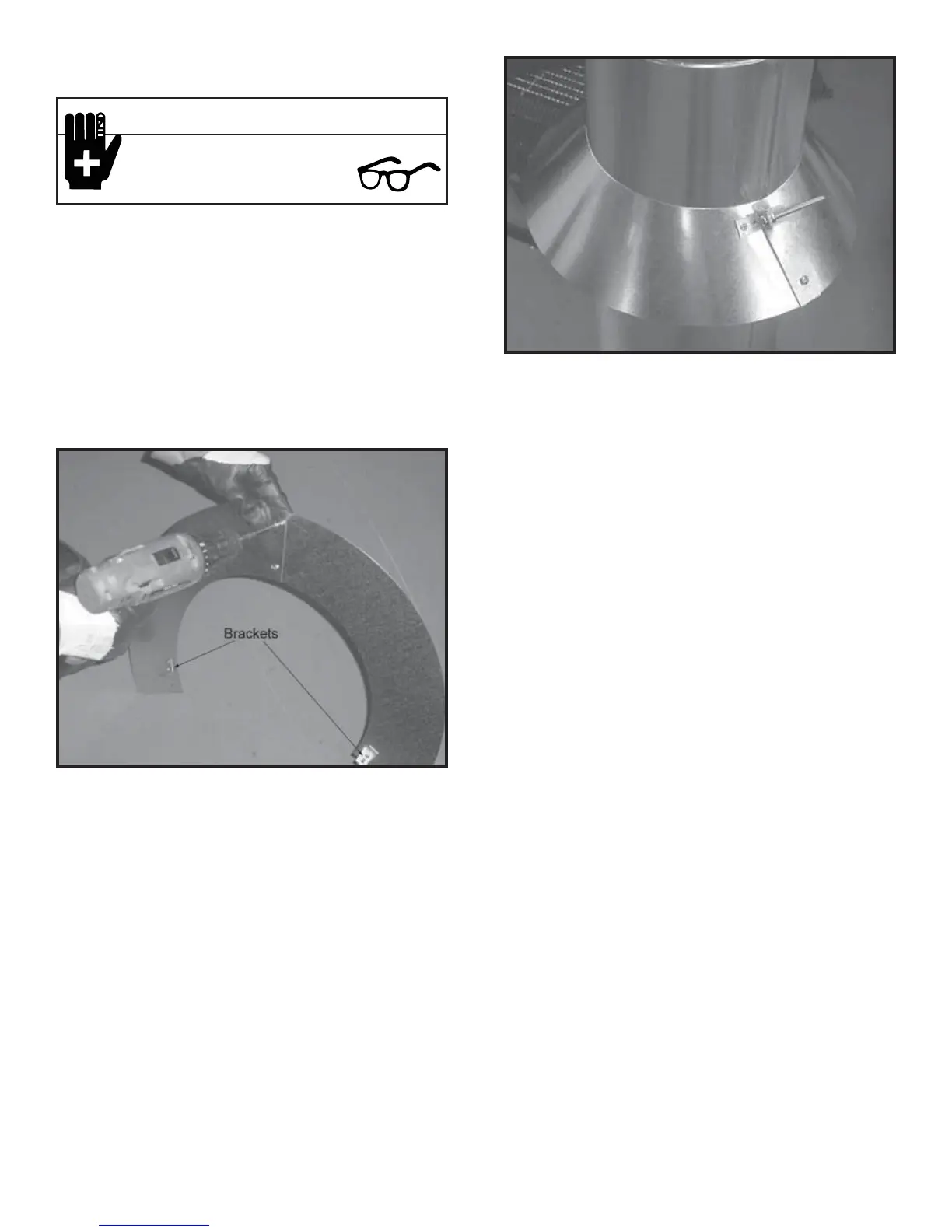

Figure 8.17 Assembling the Storm Collar
Figure 8.18 Assembling the Storm Collar Around the Pipe
Connect both halves of the storm collar with two screws
(see Figure 8.17).
Wrap the storm collar around the exposed pipe section
and align brackets. Insert a bolt (provided) through the
brackets and tighten nut to complete storm collar assem-
bly (see Figure 8.18).
Slide the assembled storm collar down the pipe section
until it rests on the roof fl ashing.
Caulk around the top of the storm collar (see Figure 8.15).
Assembling and Installing Storm Collar
CAUTION
Sharp Edges
• Wear protective gloves and safety
glasses during installation.
