6
Customer Helpline 01904 727500
www.gardenservicecentre.co.uk

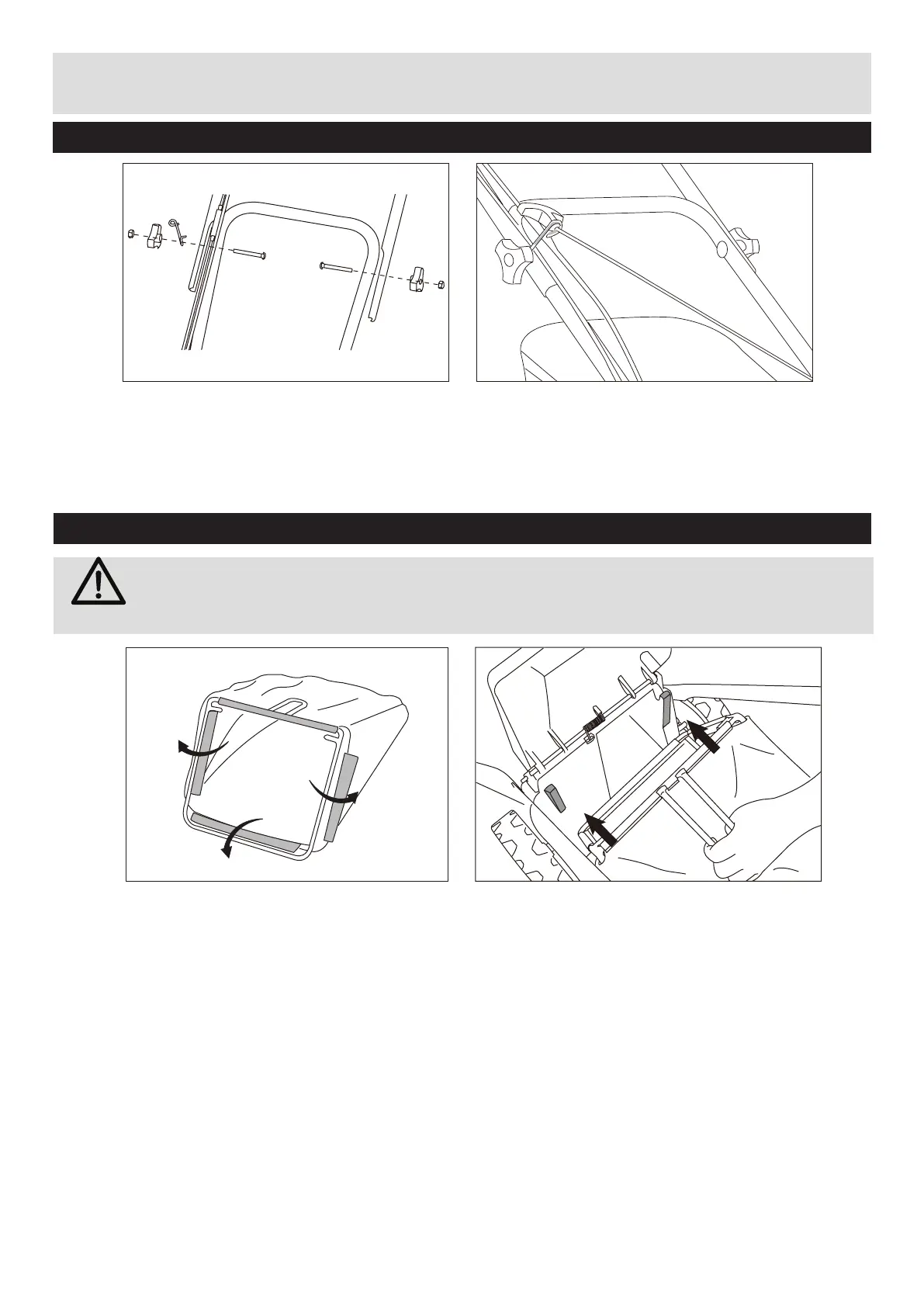

Step 3
Assembly
Step 4
3a. Firstly attach the grass bag to the frame by xing all plastic hooks.
3b. Raise the safety ap, and hook the collection bag onto the mower.
Release the safety ap.
3a 3b
2a
2b
Lift the upper handle, and lock in place using the quick release lever and tensioning bolts that are
attached to the handle.
Ensure the lower and upper handles are rmly connected. Attach guide rope and pull the rope
through it letting the pulley handle rest on it.
Ensure the rope guide is on the right handle, when you stand behind the mower.
IMPORTANT! Make sure the grass collection box is in place before starting the engine.
To Next Page
