Rear Panel

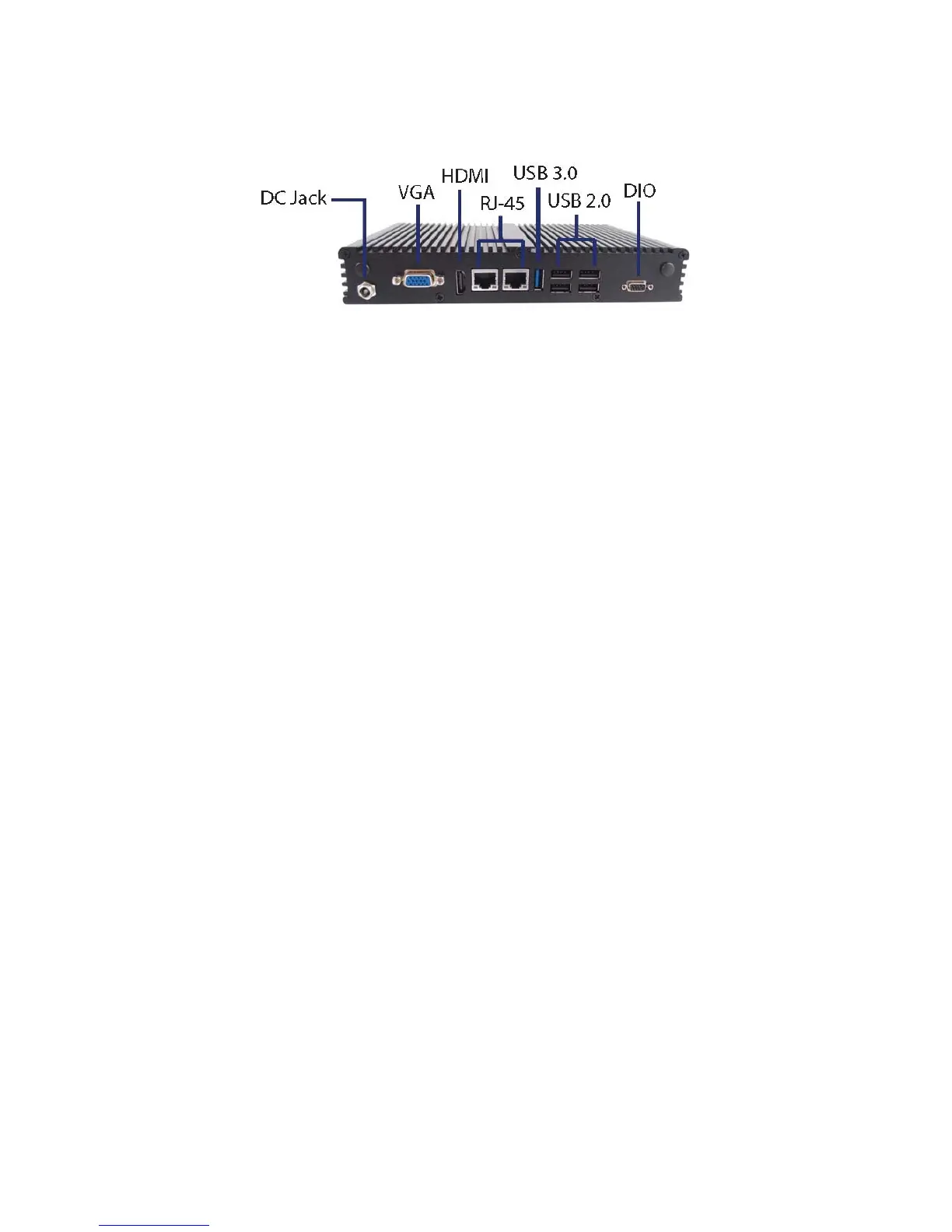

Figure 2 Rear Panel
DC Jack
The supplied power adapter converts AC power to DC for use with this jack.
Power supplied through this jack supplies power to the PC. To prevent damage
to the PC, always use the supplied power adapter.
Ethernet
The eight-pin RJ-45 LAN port supports a standard Ethernet cable for
connection to a local network.
USB
The USB (Universal Serial Bus) port is compatible with USB devices such as
keyboards, mouse devices, cameras, and hard disk drives. USB allows many
devices to run simultaneously on a single computer, with some peripheral
acting as additional plug-in sites or hubs.
VGA
D-Sub 15 pin VGA connector for display output
HDMI
HDMI connector for display output
Wireless LAN Antenna (Optional)
The reserved holes for wireless antenna connections.
Digital I/O
This interface used to connect digital signals for input and output purposes.
