IP01 and IP02 - Single Inverted Pendulum (SIP): User Manual
3. Single Pendulum Description
3.1. Component Description and Nomenclature

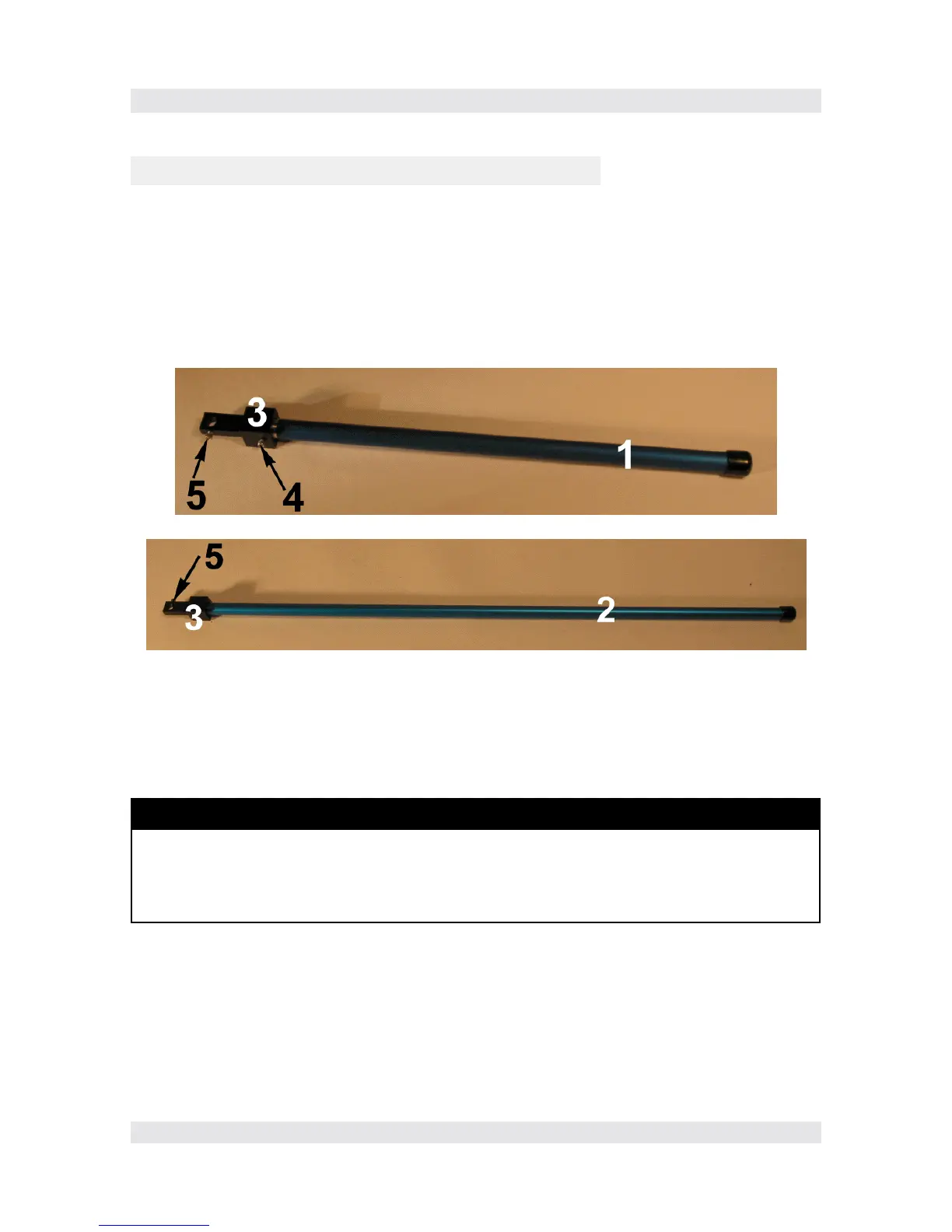

As shown in Figures 5 and 6, below, there are two kinds of single pendulums, depending on
their length. The "medium" pendulum is 12-inch long, in contrast with the "long" pendulum,
which has a length of 24 inches.
Figure 5 Medium Single Pendulum
Figure 6 Long Single Pendulum
As a component nomenclature, Table 2, below, provides a list of all the principal elements
composing both single pendulum systems. Each of these elements is located and identified,
through a unique identification (ID) number, on both medium and long single pendulum
systems as represented in Figures 5 and 6, above.
ID # Description ID #
Description
1
Medium-Length Rod
4
Rod Set Screw: (3/32)"
2
Long-Length Rod
5
Axis Set Screw: (3/32)"
3
Rod Socket (a.k.a. T-Fitting)
Table 2 Single Pendulum Component Nomenclature
Document Number: 511 ! Revision: 03 ! Page: 4
