QUANTA D51B-2U - System Rear View

ABOUT THE SYSTEM SYSTEM OVERVIEW
1-12
System Rear View

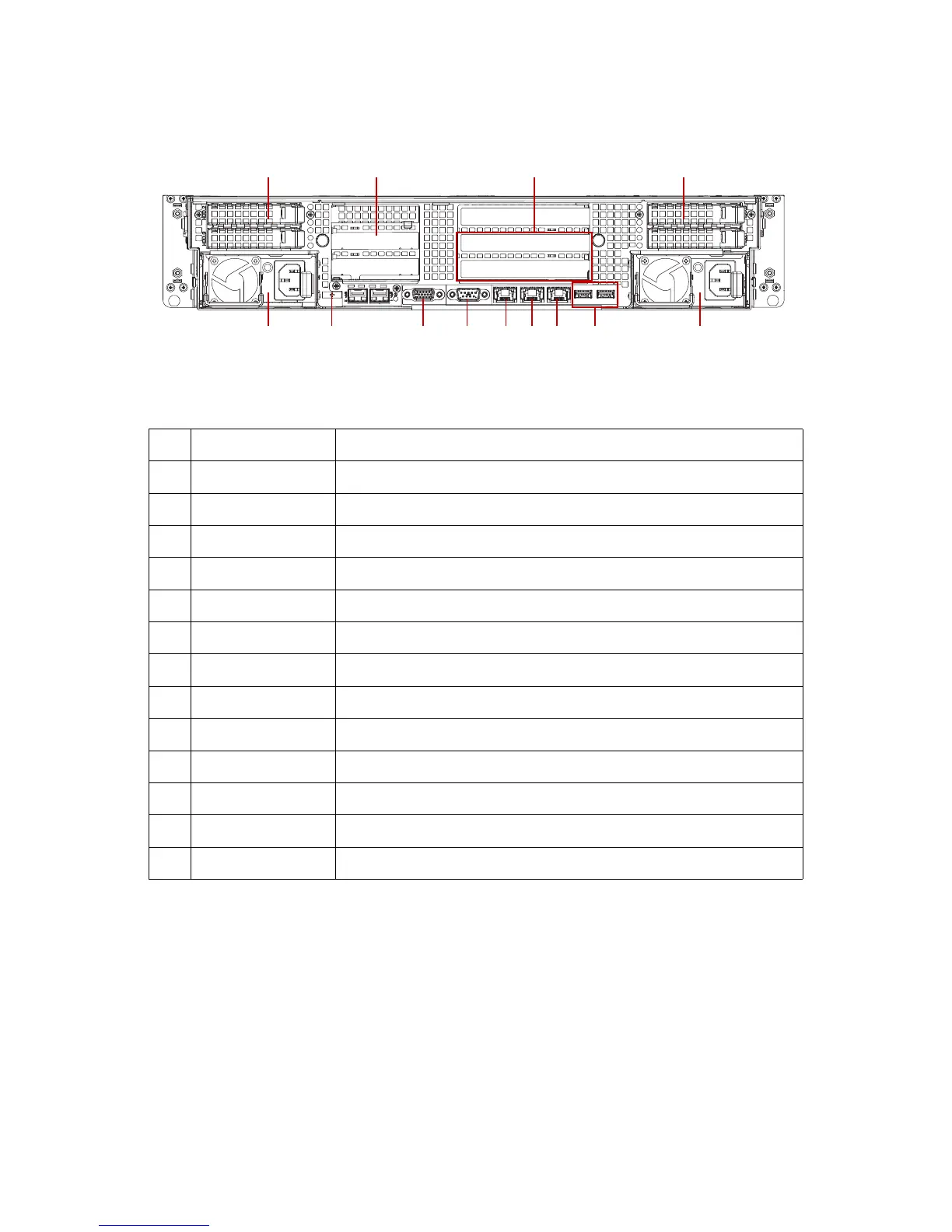

Figure 1-6. System rear view
Table 5: Rear Panel View
NO.NAME DESCRIPTION
1 Expansion Slot PCIe SSD optional expansion bay. (*only for QuantaGrid D51B-2U)
2 Expansion Slot PCIe expansion bay.
3 Expansion Slot Two PCIe expansion bays.
4 Expansion Slot SAS/SATA SSD optional expansion bay.
5 Power Sub-system Primary power supply unit (PSU1).
6 USB ports USB ports 0 - 1 (2.0 / 3.0)
7 Dedicated NIC Dedicated RJ45 connector
8NIC1 RJ45 connector
9NIC2 RJ45 connector
10 COM port A DB9 port (Serial_A) for debug or terminal concentrator
11 VGA connector Maximum display resolution: 1920x1200 32bpp@60Hz (reduced blanking)
12 OCP connector OCP debug connector (optional)
13 Power Sub-system Secondary power supply unit (PSU2)
13 8 5
4321
611 10 7912
