Quantech 3070TSE - Page 29

FORM QTC3-EG6 (1118)
QUANTECH
29
QTC3110TSE, QTC3090THE, QTC3100THE
LD26940
1177 [46.4]
2795 [110.0]
1678 [66.1]
POWER ENTRY
330.2 [13.00] WIDE X 177.8 [7.00] HIGH
(190mm x 120mm EUROPEAN BUILD)
035-24059-006 REV E
573 [22.5]
1669 [65.7]
561 [22.1]
CONTROL PANEL BOTTOM DETAIL
(28mm EUROPEAN BUILD)
21 [0.8]
1298mm EUROPEAN BUILD
822 [32.4]
254 [10.0]
269 [10.6]
35 [1.4]
3” VICTAULIC
INLET
3” VICTAULIC
INLET
MOUNTING
HOLES TYPE
MOUNTING
HOLES TYPE
35 [1.4]
WATER CONNECTIONS
1753 [69.0]194 [7.6]
2434 [95.8]
15.9 [0.63]
MOUNTING
HOLES TYPE
OVERALL LENGTH
FRAME LENGTH
3613 [142.2]
3244 [127.7]
3696 [145.5]
WATER CONNECTIONS
1222 [48.1]
1256 [49.5]
588 [23.1]
686 [27.0]
1276 [50.2]
(OPTIONAL HEAT
RECOVERY UNIT)
OPTIONAL
DISCONNECT SWITCH
(STANDARD ON CE)
OVERALL WIDTH
FRAME WIDTH
288 [11.3] OR 288.0 [11.34]
DIMENSION VARIES BASED
ON CHILLER SELECTED
2242 [88.3]
2254 [88.8]
(1497mm (50Hz))
1595 [62.8] (60Hz)
FRAME HEIGHT
2248 [88.5]
OVERALL HEIGHT DEPENDS ON BUILD LOCATION
REFER TO NOTES 5 ADN 6 ABOVE
2077 [81.8]
82 [3.2]
83 [3.3]

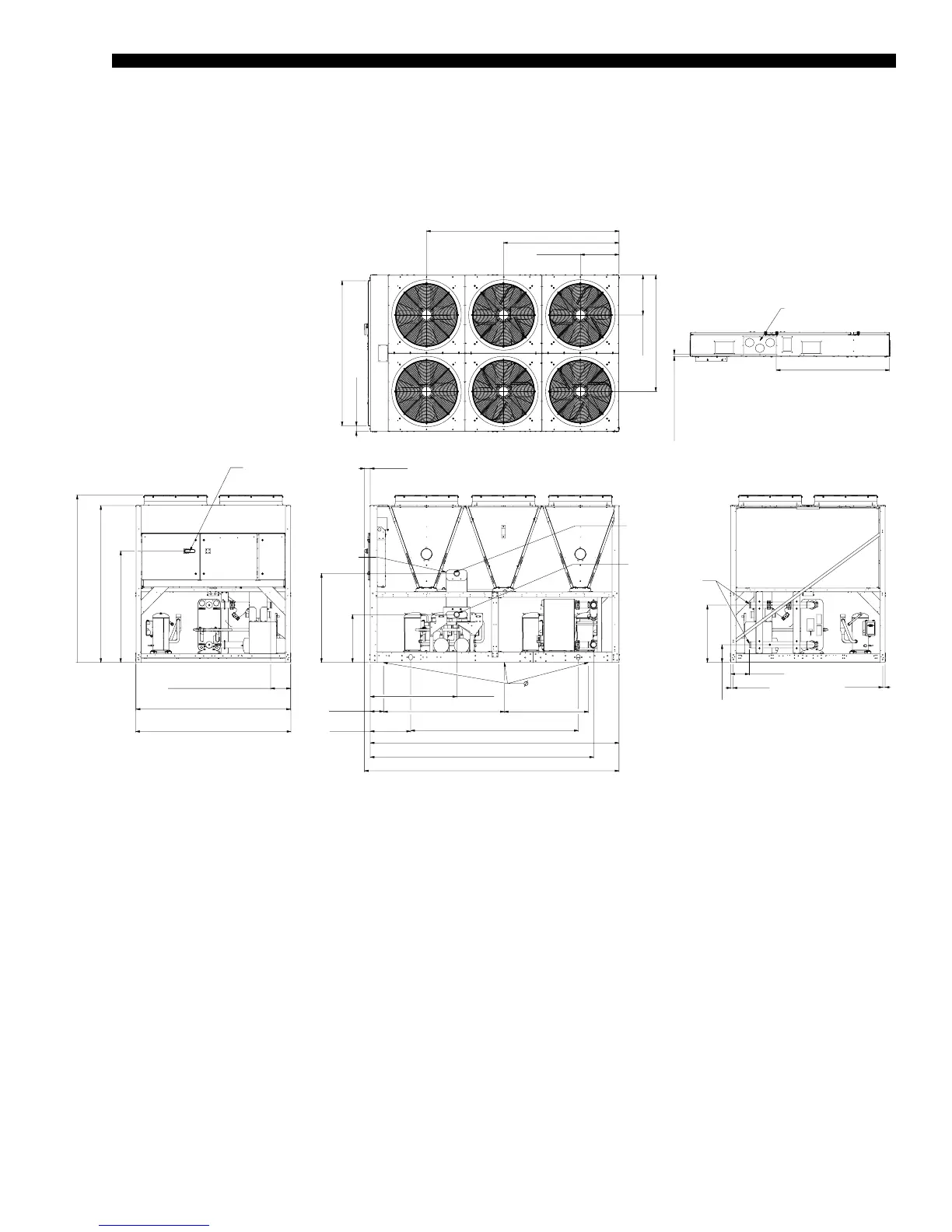

Unit Dimensions (Cont'd)
NOTE:
Placement on a level surface of free of obstructions (including snow, for winter operation) or air circulation ensures rated performance, reli-
able operation, and ease of maintenance. Site restrictions may compromise minimum clearances indicated below, resulting in unpredictable
airow patterns and possible diminished performance. The unit controls will optimize operation without nuisance high-pressure safety cut-
outs; however, the system designer must consider potential performance degradation. Access to the unit control center assumes the unit is
no higher than on spring isolators. Recommended minimum clearances: Side to wall – 6'; rear to wall – 6'; control panel to end wall – 4'0'';
top – no obstructions allowed; distance between adjacent units – 10'. No more than one adjacent wall may be higher than the unit.
