Quantech 3070TSE - Vibration Isolator Information

FORM QTC3-EG6 (1118)
QUANTECH
33
Isolator Locations
1.4
1.4

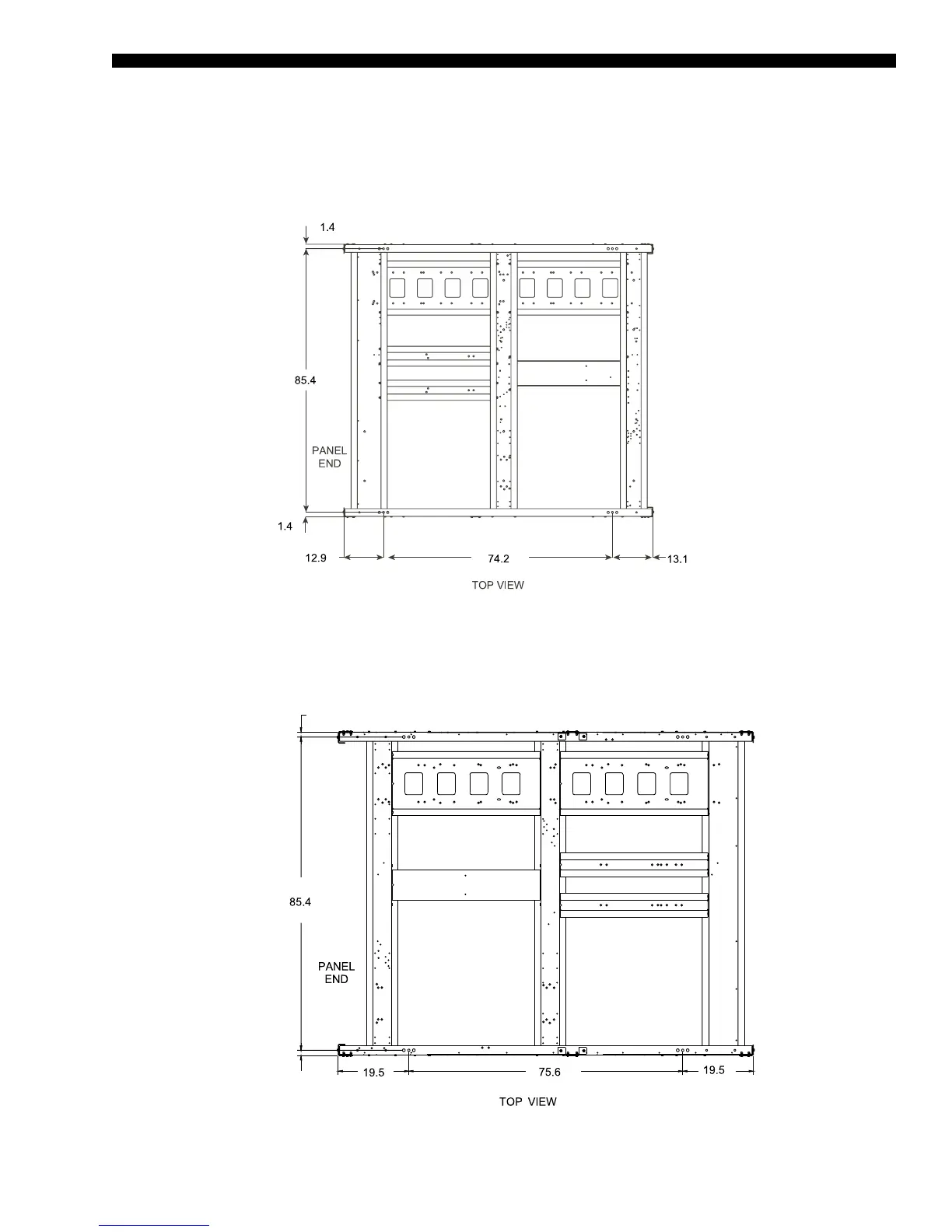

FOUR FAN ISOLATOR LOCATIONS FOR QTC3070TSE, QTC3075TSE, QTC3085TSE
All dimensions are inches unless otherwise specied.
Dimensions indicate isolator mounting centerlines.
LD18437
FOUR FAN ISOLATOR LOCATIONS FOR QTC3055THE, QTC3060THE, QTC3079THE
LD18438
