• Liquid solenoid valve status.
• Load & unload timer status.
• Water pump status.
COMMUNICATIONS
• Native communication capability for BACnet (MS/TP), Modbus and N2.
• Optional communication available for LON via eLink option.
BUILDING AUTOMATION SYSTEM INTERFACE
In addition to native BACnet, Modbus and N2, the QTC3 chiller accepts a 4-20 milliamp
or 0-10VDC input to reset of the leaving chilled liquid temperature. The standard unit ca-
pabilities include remote start-stop, remote water temperature reset via up to two steps of
demand (load) limiting depending on model. The standard control panel can be directly
connected to a building automated system via the standard on-board RS232 communica-
tion port. (Factory installed.)
POWER PANEL
• Each panel contains:
• Compressor power terminals.
• Compressor motor starting contactors per l.E.C.
• Control power terminals to accept incoming for 115-1-60 control power.
• Fan contactors & overload current protection.
Equipment Overview (Cont'd)

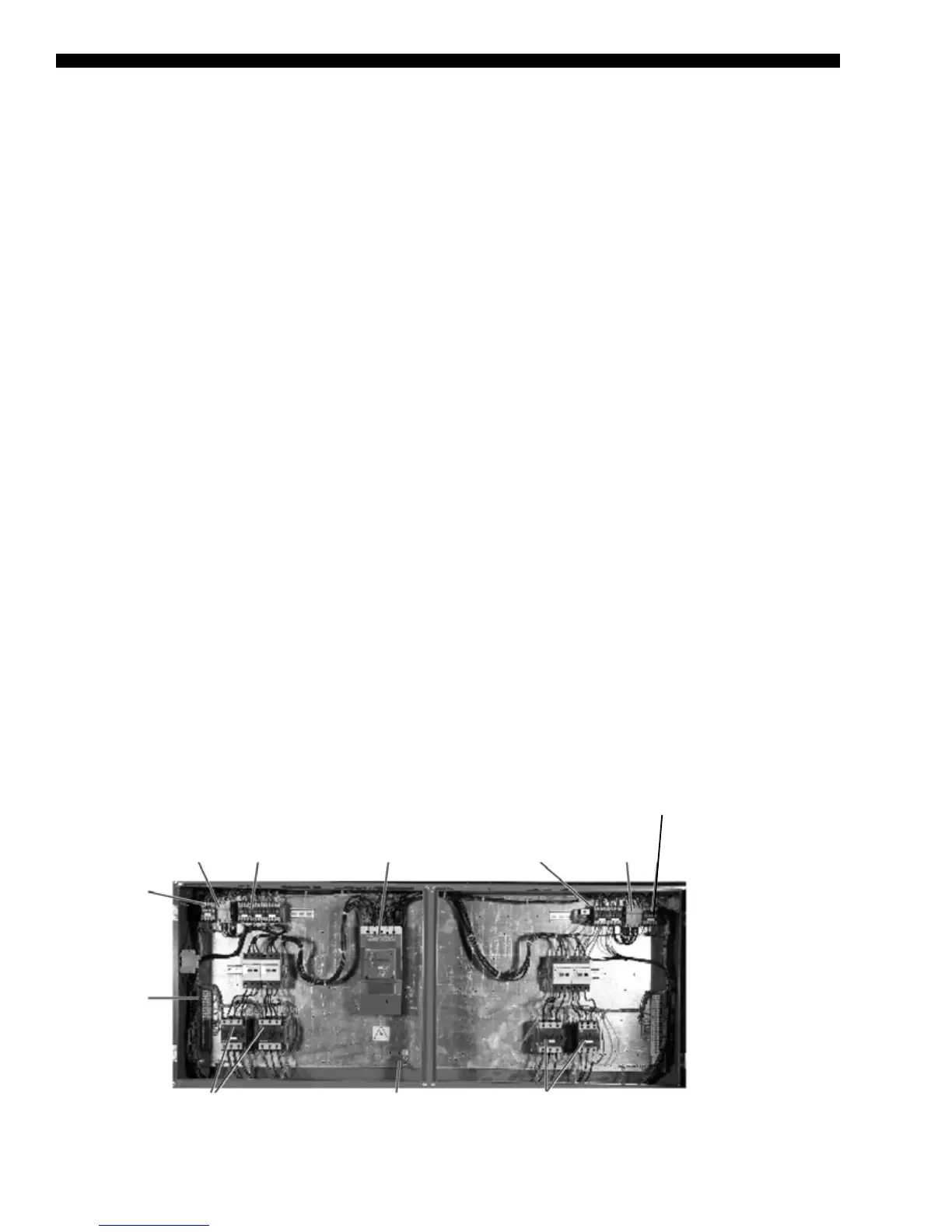

FAN
FUSE
FAN
CONTACTORS
DISCONNECT
SWITCH
FAN
FUSE
FAN
CONTACTORS
FAN
CONTACTORS
COMPRESSOR
CONTACTORS
GROUND
LUG
COMPRESSOR
CONTACTORS
FAN
CONTACTORS
XTBF1
LD18430A
To Next Page
