Isolator Details
TWO INCH DEFLECTION, SEISMIC SPRING ISOLATOR (Y2RS-)
MODEL Y2RSI-2D SEISMICALLY RESTRAINED VIBRATION ISOLATOR FOR 2" DEFLECTION
SEISMIC MOUNT
SIZE
RATED LOAD
LBS (KG)
RATED
DEFLECTION
IN (MM)
SPRING RATE
LBS/IN (N/M)
SOLID LOAD
LBS (KG)
COLOR CODE
ALLOWABLE
G RATING
HORIZONTAL
Y2RSI-2D-150
150 (68) 2.4 (61) 62 (7) 234 (106) WHITE 34.7
Y2RSI-2D-320
320 (145) 2.3 (58) 140 (16) 490 (222) YELLOW 16.3
Y2RSI-2D-460
460 (209) 2.3 (58) 200 (23) 688 (312) GREEN 11.3
Y2RSI-2D-710
710 (322) 2.2 (56) 330 (37) 1072 (486) DK BROWN 7.3
Y2RSI-2D-870
870 (395) 1.9 (48) 460 (52) 1312 (595) RED 6
Y2RSI-2D-1200N
1200 (544) 1.9 (48) 638 (72) 1818 (825) RED/BLACK 4.3
Y2RSI-2D-1450
1450 (658) 1.8 (46) 900 (102) 2450 (1111) TAN 3.6
Y2RSI-2D-1690
1690 (767) 1.7 (43) 1140 (129) 2892 (1312) PINK 3.1
Y2RSI-2D-2000N
2000 (907) 1.7 (43) 1318 (149) 3342 (1516) PINK/BLACK 2.6
Y2RSI-2D-2640N
2640 (1197) 1.5 (38) 1854 (209) 4283 (1943) PINK/GRAY 2
Y2RSI-2D-2870N
3080 (1397) 1.5 (38) 2004 (226) 4629 (2100)
PINK/GRAY/
ORANGE
1.7
Y2RSI-2D-3280N
3740 (1696) 1.8 (46) 2134 (241) 4930 (2236)
PINK/GRAY/DK
BROWN
1.4

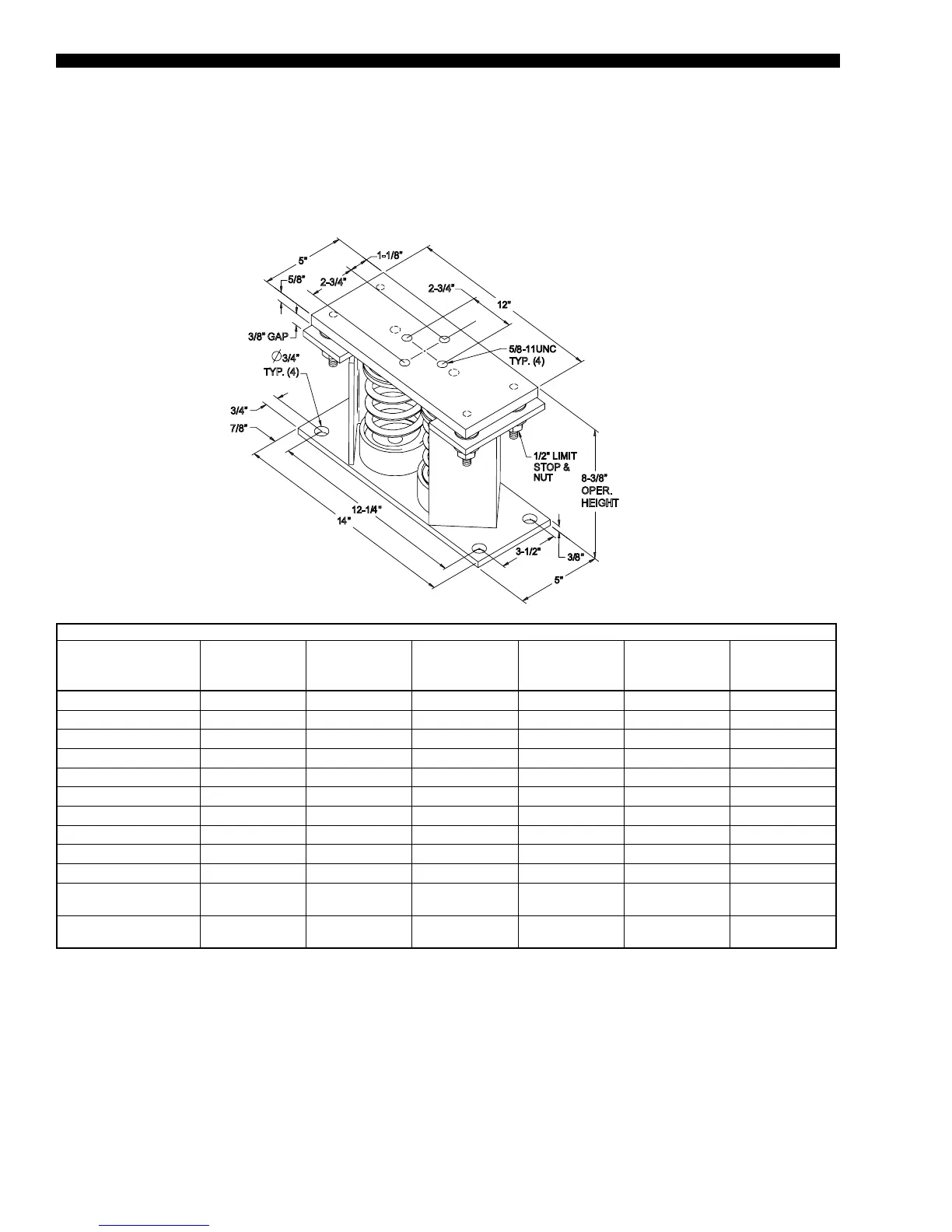

3/4”
7/8”
3/8”
GAP
3/4”
TYP. (4)
5/8”
2-3/4”
1-1/8”
2-3/4”
8
P
4
8
STOP &
8-3/8”
OPER.
HEIGHT
4
4
LD18443
