FORM QTC3-EG6 (1118)
QUANTECH
35
TOP
VIEW

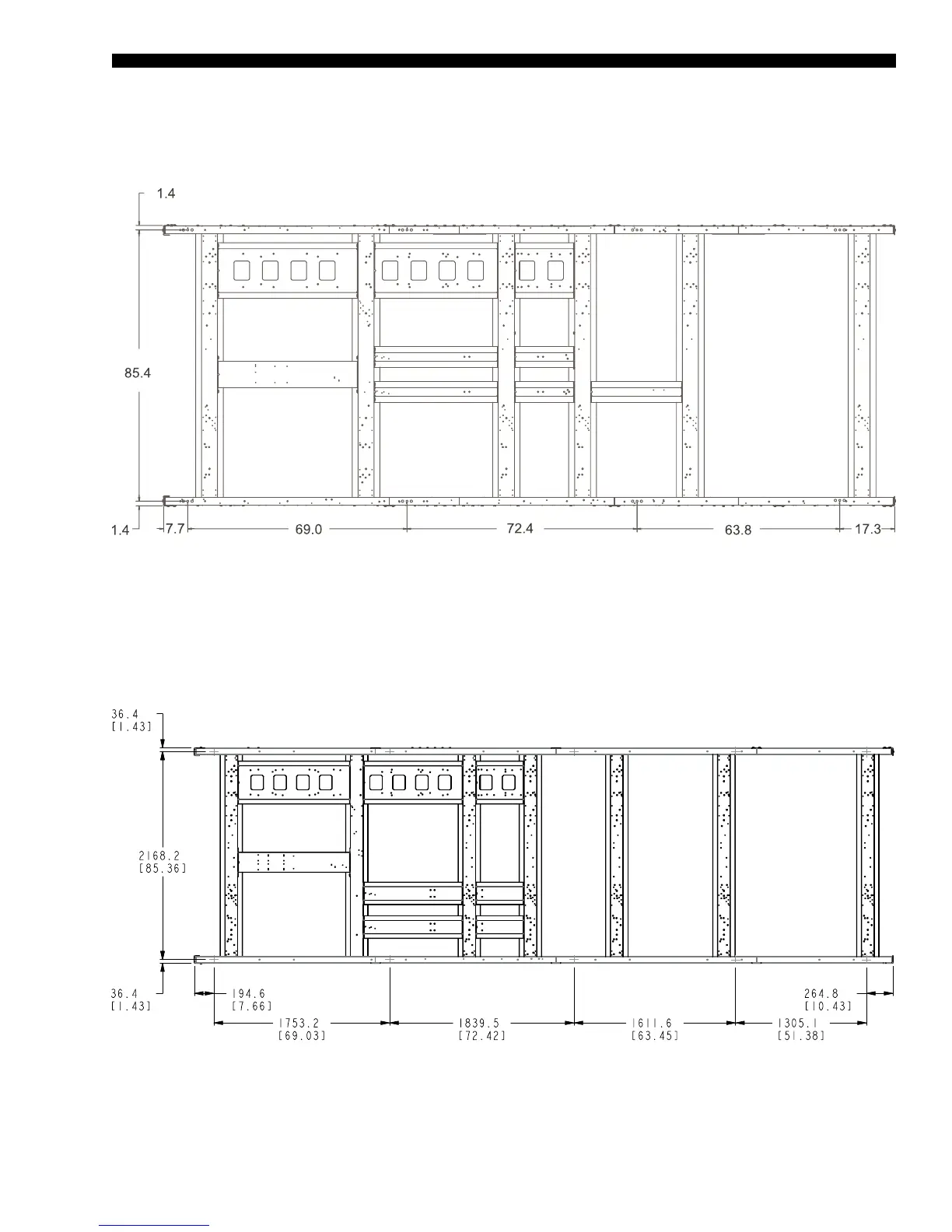

TEN FAN ISOLATOR LOCATIONS FOR QTC3160TSE, QTC3150THE, QTC3170THE
All dimensions are inches unless otherwise specied.
Dimensions indicate isolator mounting centerlines.
Isolator Locations (Cont'd)
LD18441
TWELVE FAN ISOLATOR LOCATIONS QTC3205THE, QTC3225THE
LD21040
TOP
VIEW
All dimensions are inches unless otherwise specied.
Dimensions indicate isolator mounting centerlines.
