2.3 Connecting the HDMI Source DUT to the 980
This subsection provides procedures on how to make the HDMI connection between an HDMI source device and
the 980 HDMI Protocol Analyzer module. The images below identify the locations of the HDMI Rx interface on the
980 HDMI Protocol Analyzer module when installed in the 980 and 980B.

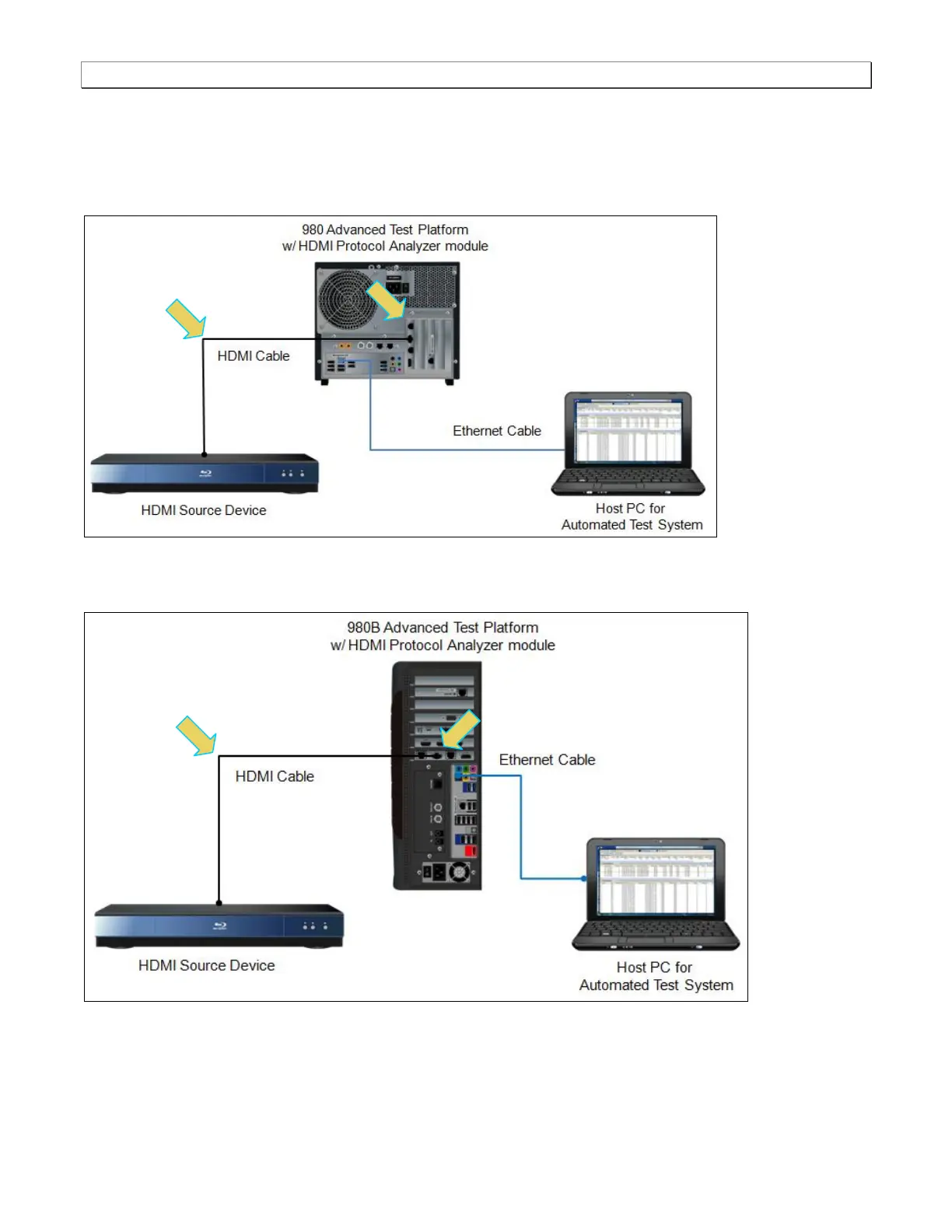

HDMI Connection from 980 HDMI Protocol Analyzer to Source Device Under Test
HDMI Connection from 980B HDMI Protocol Analyzer to Source Device Under Test
