III. YOUR POWER CHAIR
THE QUANTUM 6000
The Quantum 6000 has two main assemblies: the seat assembly and the power base assembly. See figure 5. Typically, the
seat assembly includes the armrests, seatback, and seat base. The power base assembly includes two motor/brake assem-
blies, two drive wheels, four caster wheels, two batteries, and wiring harnesses. See figures 5, 6, and 7.
SEATBACK
DRIVE WHEEL
CASTER WHEEL

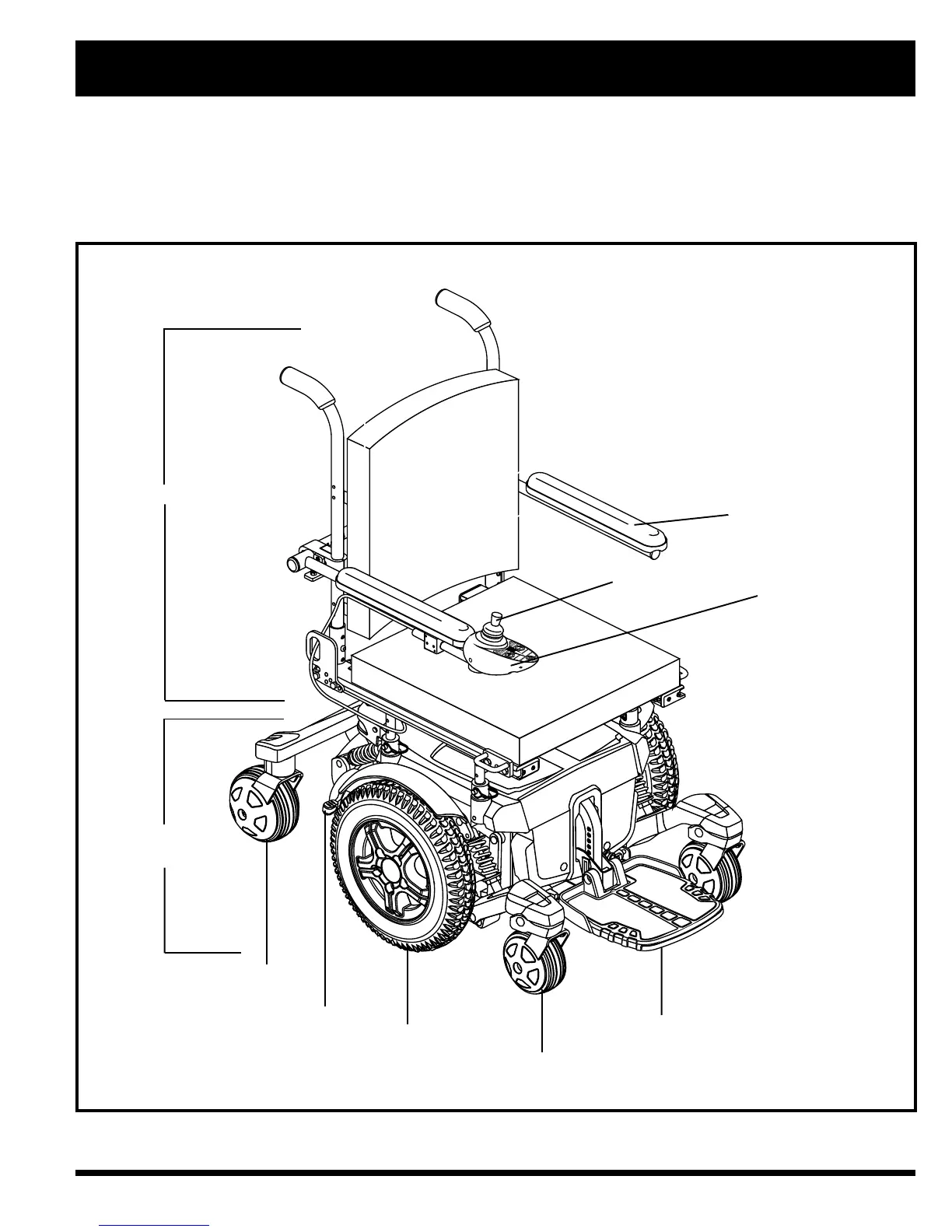

Figure 5. The Quantum 6000
POWER BASE
ASSEMBLY
SEAT ASSEMBLY
JOYSTICK
FOOT RIGGING
(FOOT PLATFORM SHOWN)
SEAT BASE
CONTROLLER
(REMOTE PLUS SHOWN)
CASTER WHEEL
MANUAL FREEWHEEL LEVER
ARMREST
