III. YOUR POWER CHAIR

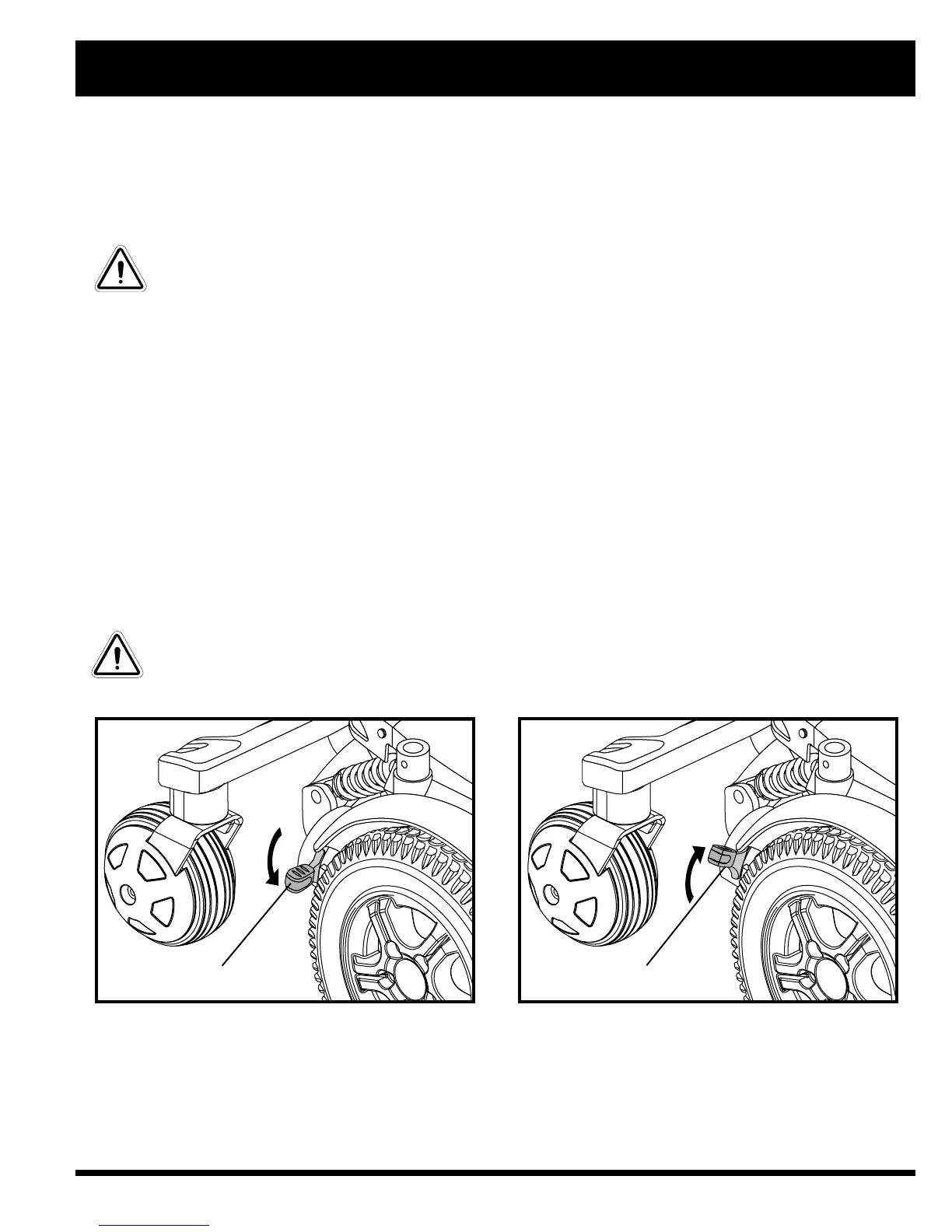

Figure 9. Drive Mode (Drive Engaged)Figure 8. Freewheel Mode (Drive Disengaged)
MANUAL FREEWHEEL LEVER
Dual Manual Freewheel Levers
For your convenience, your power chair is equipped with dual manual freewheel levers. The levers are located on each
motor, and allow you to disengage the drive motors and maneuver the chair manually.
WARNING! In freewheel mode, the braking system is disengaged. Only engage the freewheel
mode when on a level surface. Failure to comply could result in injury and/or damage to your
product.
WARNING! Prevent personal injury and/or equipment damage. Do not use the freewheel lever
handles as tie-down points to secure this product.
To operate the dual manual freewheel levers:
1. Push down both manual freewheel levers for freewheel mode (drive motor disengaged). See figure 8.
2. Pull up both manual freewheel levers for drive mode (drive motor engaged). See figure 9.
NOTE: You must turn off the power before disengaging the drive motors, otherwise you may get an error code
on the controller. To clear this code, turn off the controller, place the power chair in drive mode, then turn on
the controller. The error message should be cleared. If it is not cleared, contact your Quantum Rehab Special-
ist.
NOTE: The power chair will be significantly easier to push with the power off.
! Avoid applying excessive force to the manual freewheel levers.
WARNING! Do not use your foot to operate the manual freewheel levers. Do not stand on the
manual freewheel levers. Applying excessive force to the manual freewheel levers may result in
damage to the freewheel levers, motors, and brakes.
MANUAL FREEWHEEL LEVER
