Quantum 6000 www.quantumrehab.com 17
III. YOUR POWER CHAIR
Electrical Components
The electrical components consist of the controller assembly, the batteries, and the motors. The batteries, motors, and
controller power module (if equipped) are located on the power base assembly. The controller is located on the seat
assembly. Connectivity between the controller and the motors, batteries, and the battery charger is provided by one or
more wiring harnesses. See figure 7.
Controller Cable Connector: The controller cable connector is where the controller plugs into the power base. Each
controller uses a different type of harness. If the controller has a power module in the power base, the connector is a small
communications-type connector. Regardless of which type of controller is used, the harness must be secured to the seat
assembly and not allowed to drag on the floor.

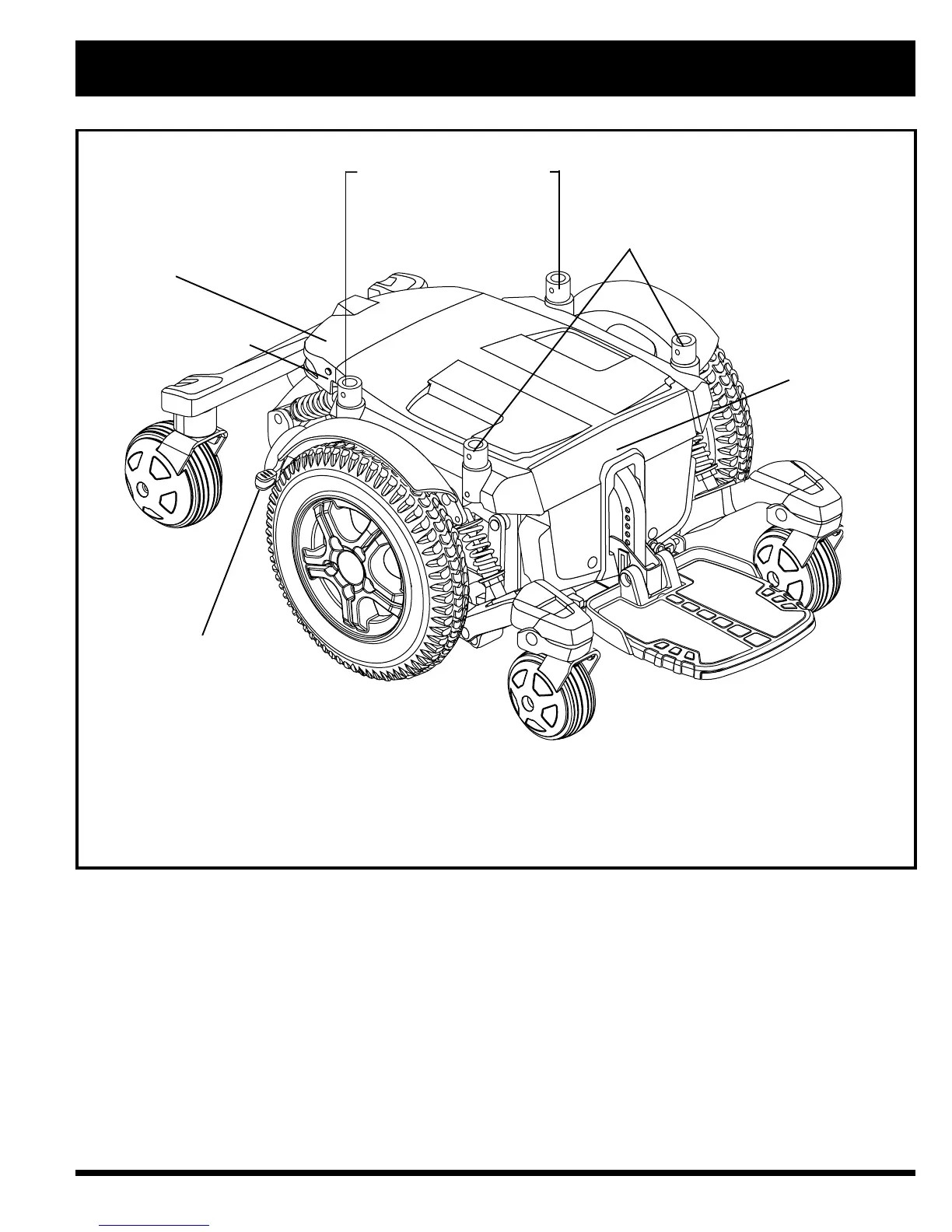

Figure 6. The Quantum 6000 Power Base
MANUAL FREEWHEEL LEVER
REAR SEAT MOUNT CONNECTORS
FRONT SEAT MOUNT CONNECTORS
FRONT COVER
REAR SHROUD FASTENER
(FASTENER ON OPPOSITE
SIDE NOT SHOWN)
REAR SHROUD
