DXi4700 Cable Drops

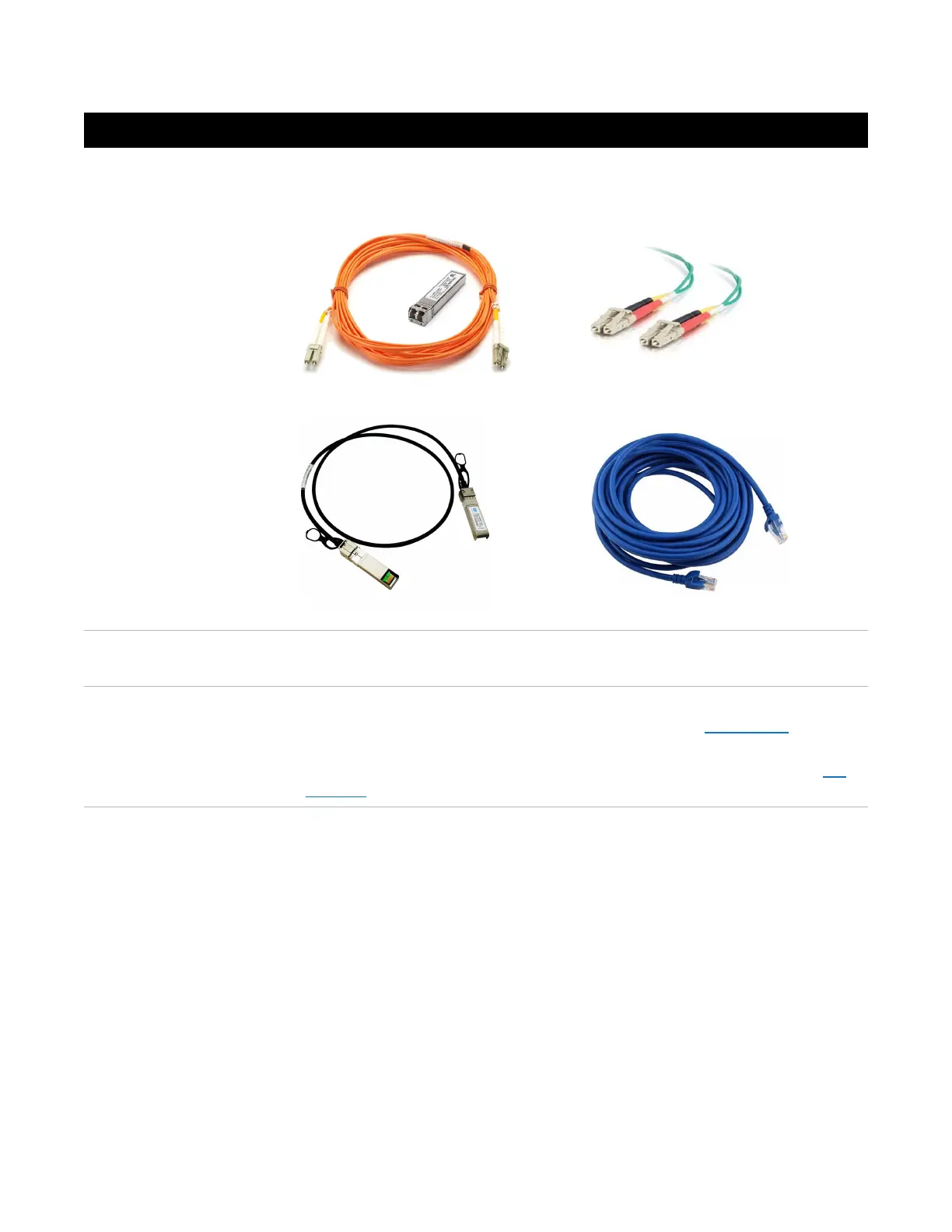

Ethernet Cables
1. 10GbE Optical Cable (DXi4700 G1) 2. 10GbE Optical Cable (DXi4700 G2)
3. 10GbE Copper (Twinax) Cable 4. 10GBase-T CAT6 Cable
Fibre Channel Drops
(DXi4700 VTL and Multi-Protocol configurations only) 1 to 2 Fibre Channel
connections for data transfer.
Power Outlets
Node - 2 USA type 3-prong power outlets (Nema 5-15) or 2 C13 type 3-prong
power outlets (IEC320 C13). For additional information, see on page 365.
Expansion Module (each) - 2 USA type 3-prong power outlets (Nema 5-15) or 2
C13 type 3-prong power outlets (IEC320 C13). For additional information, see on
page 365.
