Quantum DXi6802 and DXi690x: Rack Mount Rails Replacement
6-68446-01
April 2016
Replacing the DXi690x Array or Expansion Module Rails 13

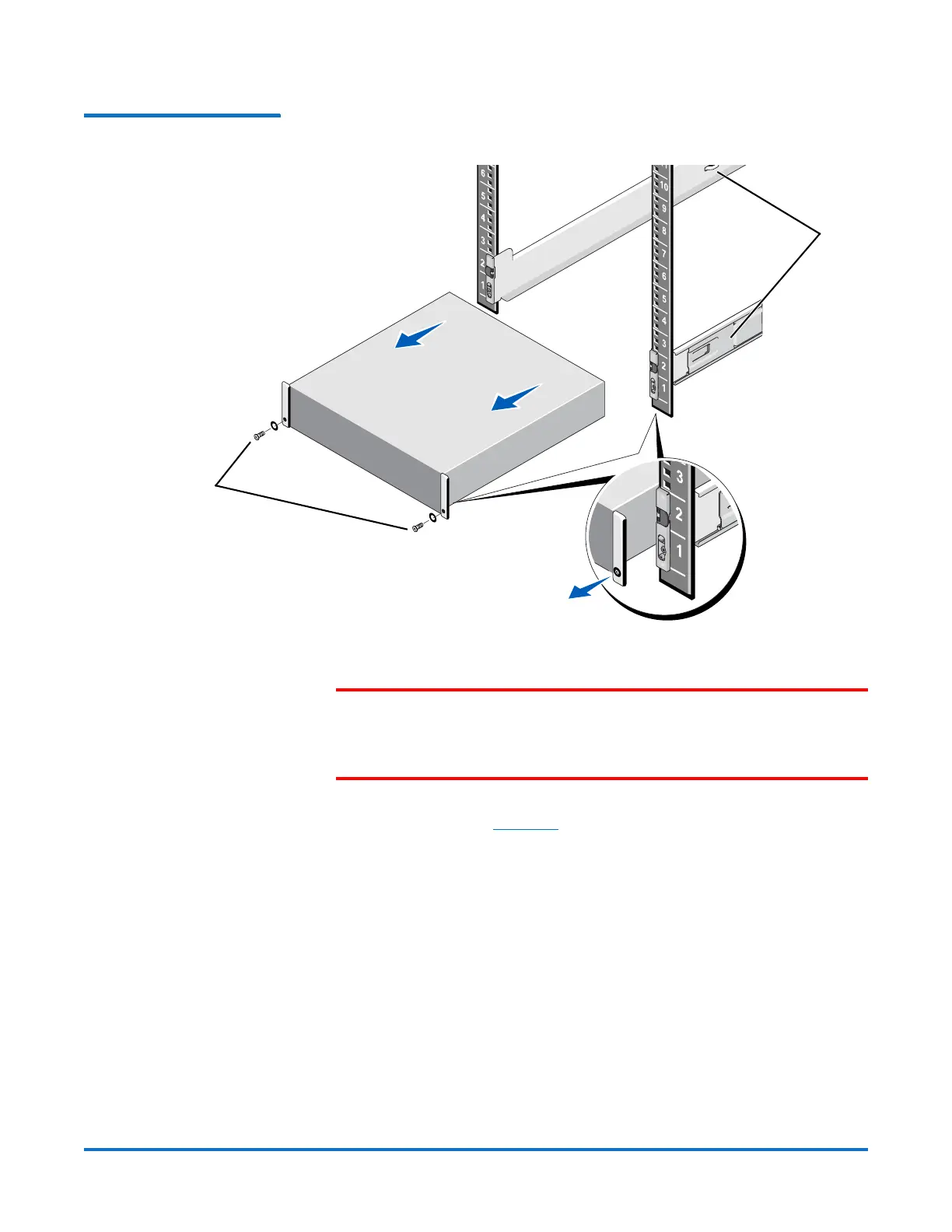

Figure 11 Removing the Array
or Expansion Module
5 Slide the Array or Expansion Module out of the rack and place it on a level
surface.
WARNING: The DXi690x Array Module and Expansion Module (including
hard drives) weigh 59.0 pounds (26.8 kg) and 57.0 pounds
(25.9 kg) respectively. A minimum of two people are required
to lift the chassis.
6 For each rail, pull on the blue release latch on each end piece and unseat the
rail from the rack (see
Figure 12).
Front of Array or
Expansion Module
10-32 x 3/4 in. screw
Rails
