Quantum DXi6802 and DXi690x: Rack Mount Rails Replacement
6-68446-01
April 2016
14 Replacing the DXi690x Array or Expansion Module Rails

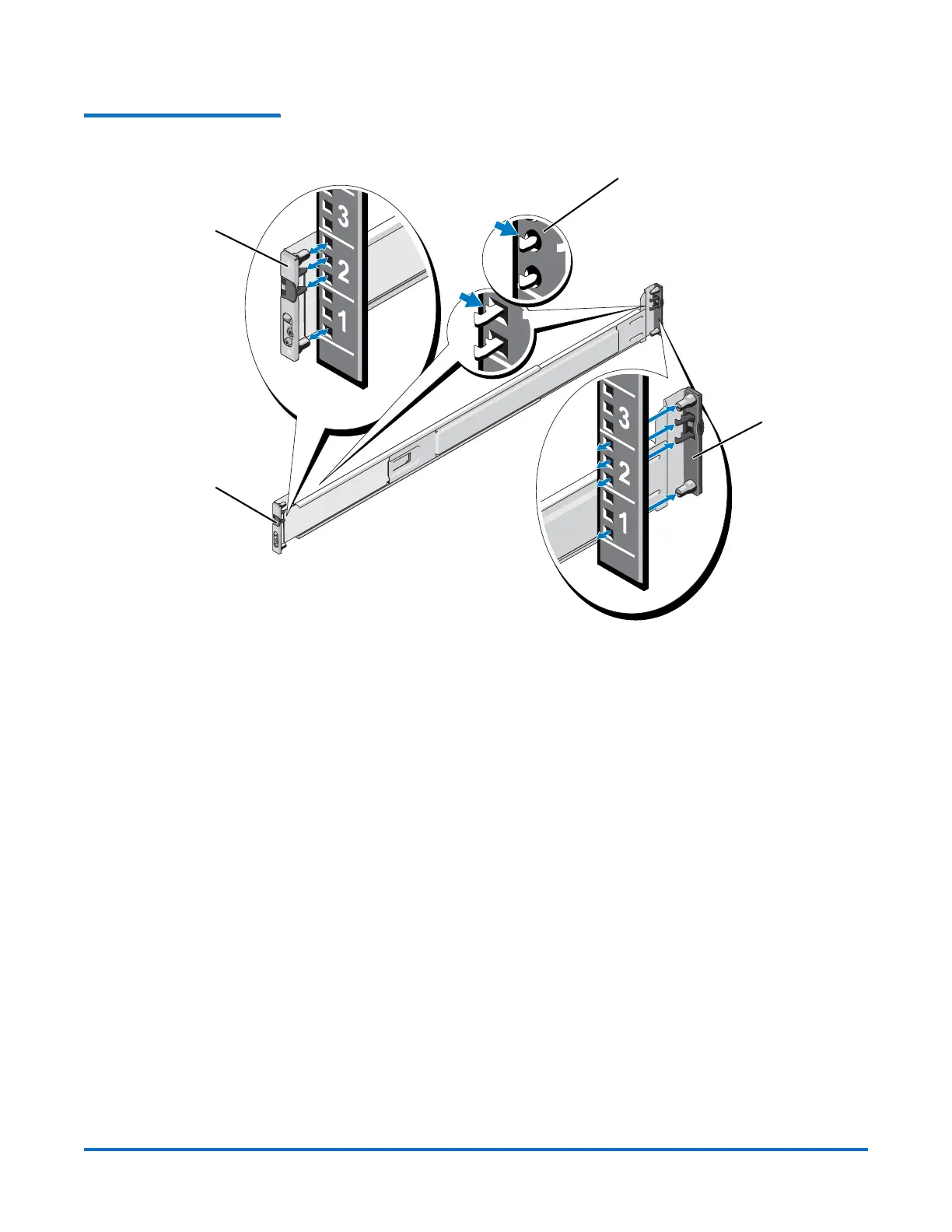

Figure 12 Removing the Array
or Expansion Module Rails
Rail front end
Rail back end
Latches click into place in rack flange
(round or square holes)
Latch release button
