Installation
QubEV QUBEV-UG-02 Installation and Operation Manual
Page 8 of 15 November 2020
Labelling
Installers must observe any/all warning labels displayed on the
equipment or inside the equipment enclosure.
Figure 2 Product Label
Schematics
Figure 3 EVON0010 - Schematic Diagram
EARTH IN
ACCORDANCE
WITH CURRENT
REGULATIONS
Installation
QUBEV-UG-02 Installation and Operation Manual QubEV
September 2020 Page 9 of 15

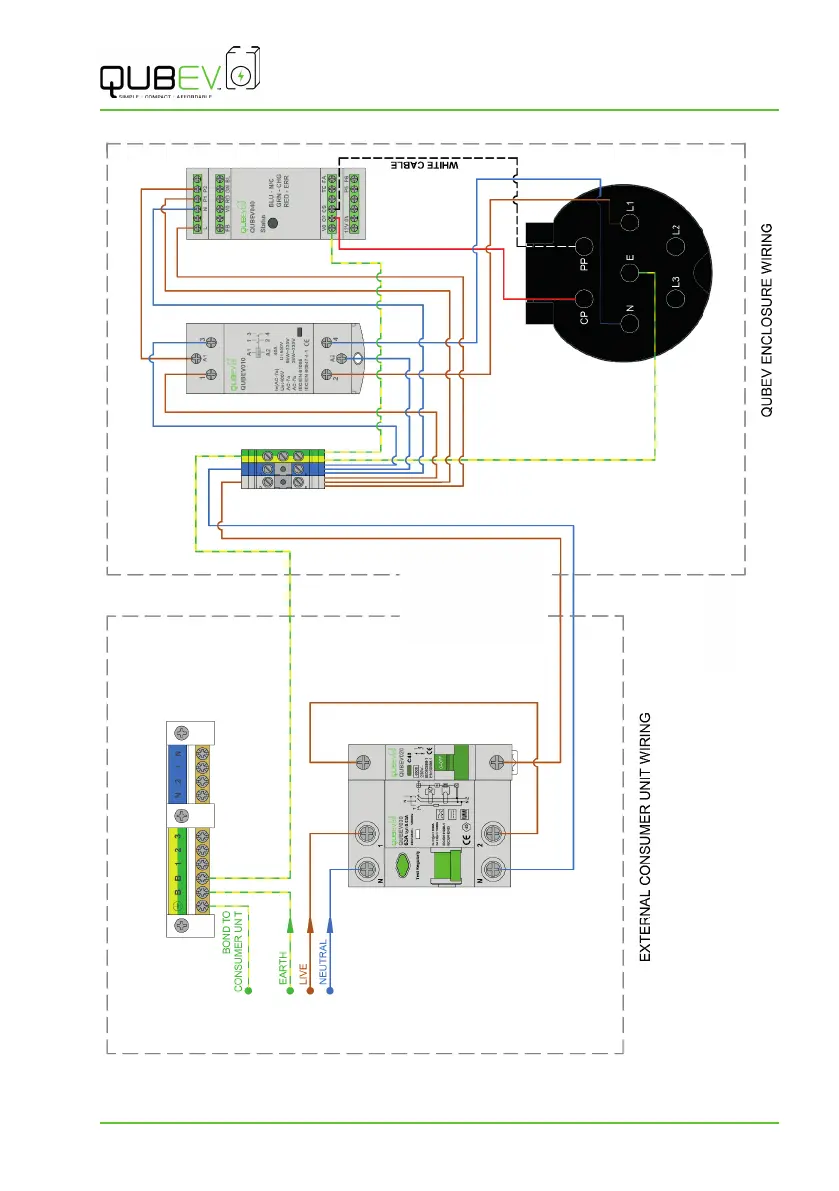

Figure 4 EVON0040 - Schematic Diagram
EARTH IN ACCORDANCE WITH CURRENT REGULATIONS
Appropriate
cabling
between the
consumer
unit and
charger must
be supplied
by the
installer
