Quectel 5G Module Series - Page 19

5G Module Series
5G-REDCAP_EVB_User_Guide 18 /
46

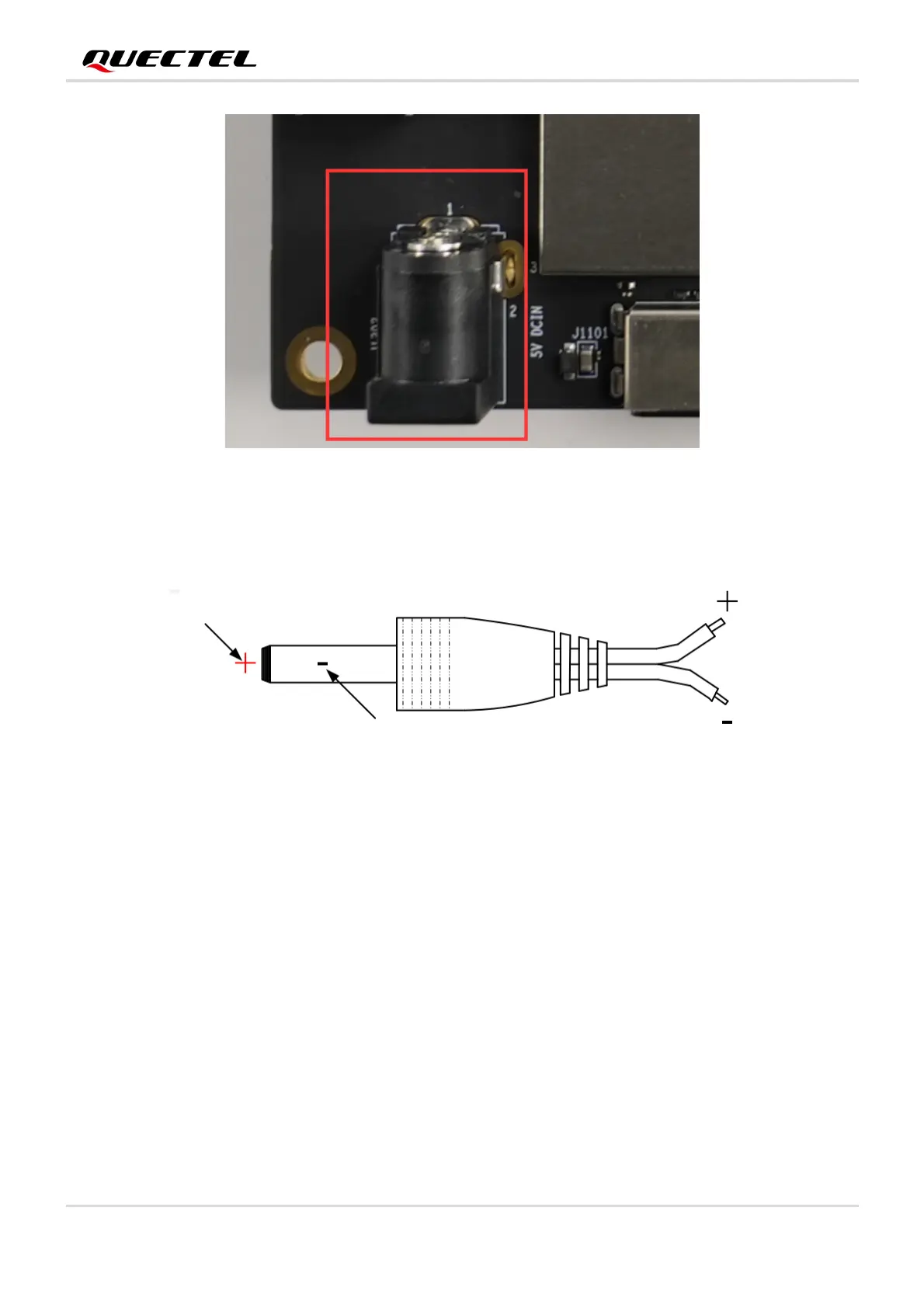

Figure 6: EVB Power Supply Interface
If the power jack is used for power supply, the power plug design of the adapter is shown as below.
Figure 7: Power Plug Design
Inner contact
Outer contact
