5G Module Series
5G-REDCAP_EVB_User_Guide 32 /
46

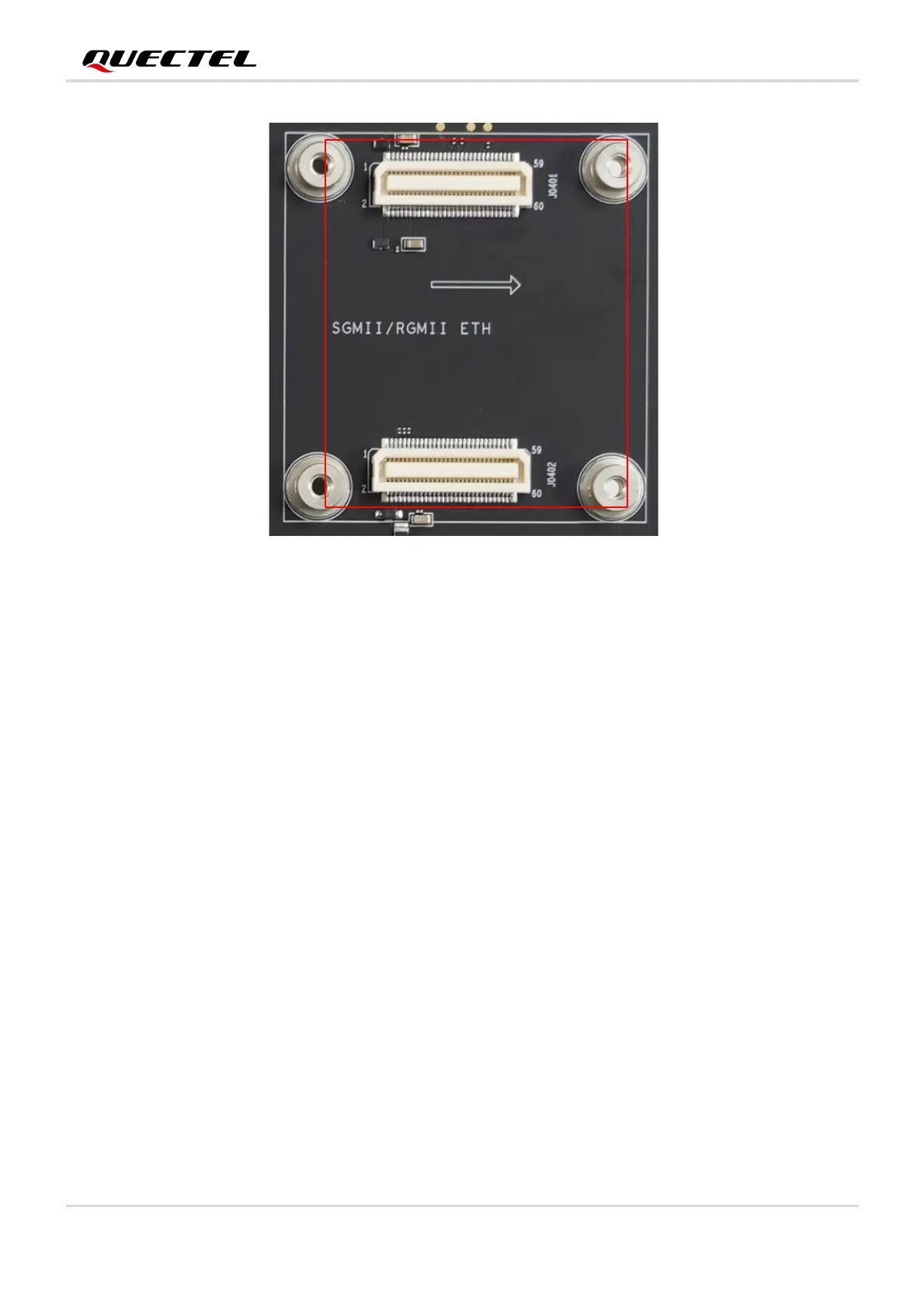

Figure 25: Connection Between PHY TE-A (SGMII/RGMII Interface) and EVB
J0401
PHY TE-A
SGMII / RGMII Interface
J0402
