3.13. Test Points
The 5G-REDCAP EVB provides test points which help you obtain the corresponding waveforms of some
signals. The following figures show the details of all test points.

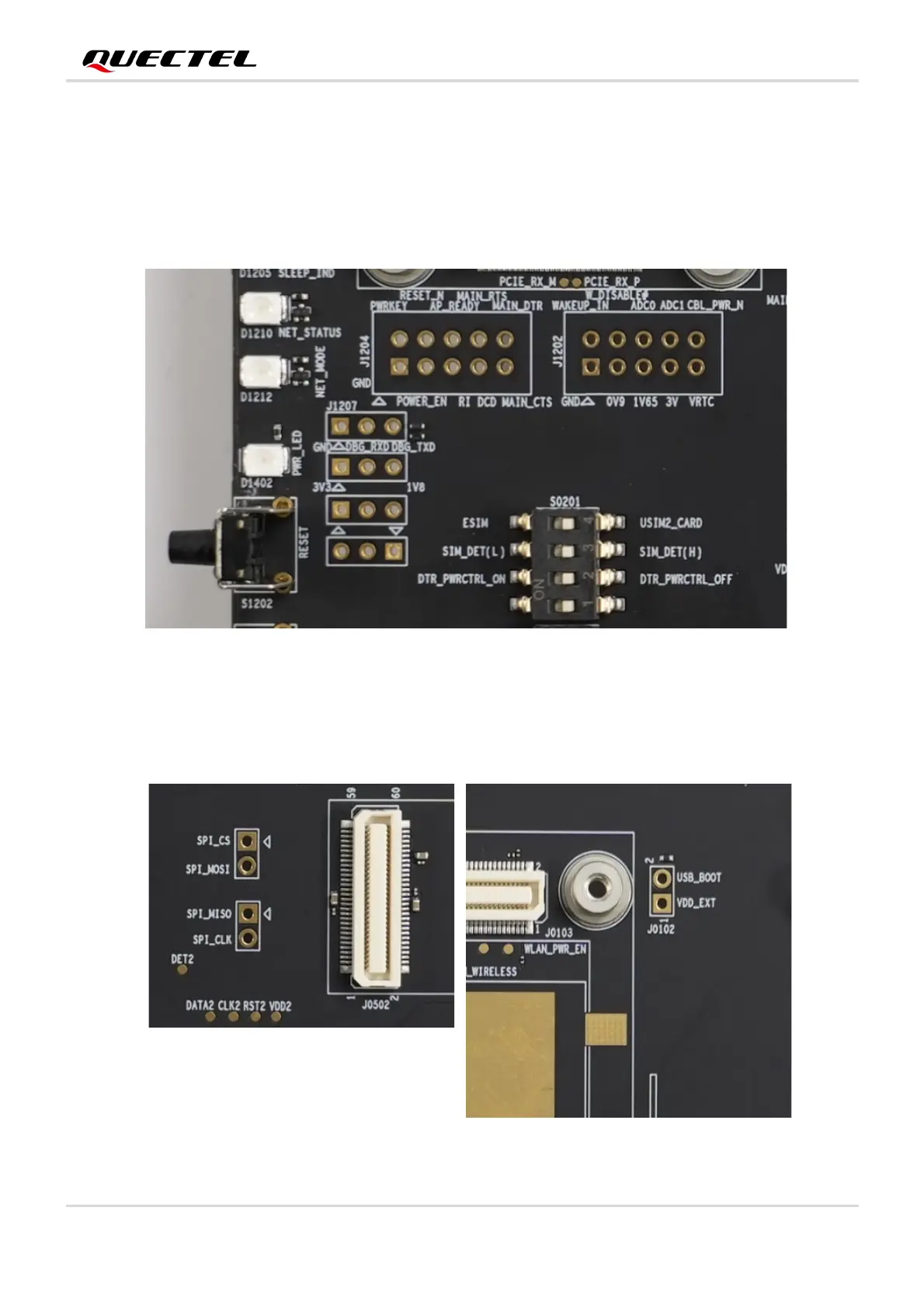

Figure 29: Test Points of J1202, J1203, J1204 and J1207
Figure 30: Test Points of J0102, J0104 and J0105
