Quectel BC66 User Manual

NB-IoT Module Series
BC66&BC660K-GL Compatible Design
BC66&BC660K-GL_Compatible_Design 21 / 30
4.7 kΩ
47 kΩ
VBAT
2.2 kΩ
BC66/BC660K-GL
NETLIGHT

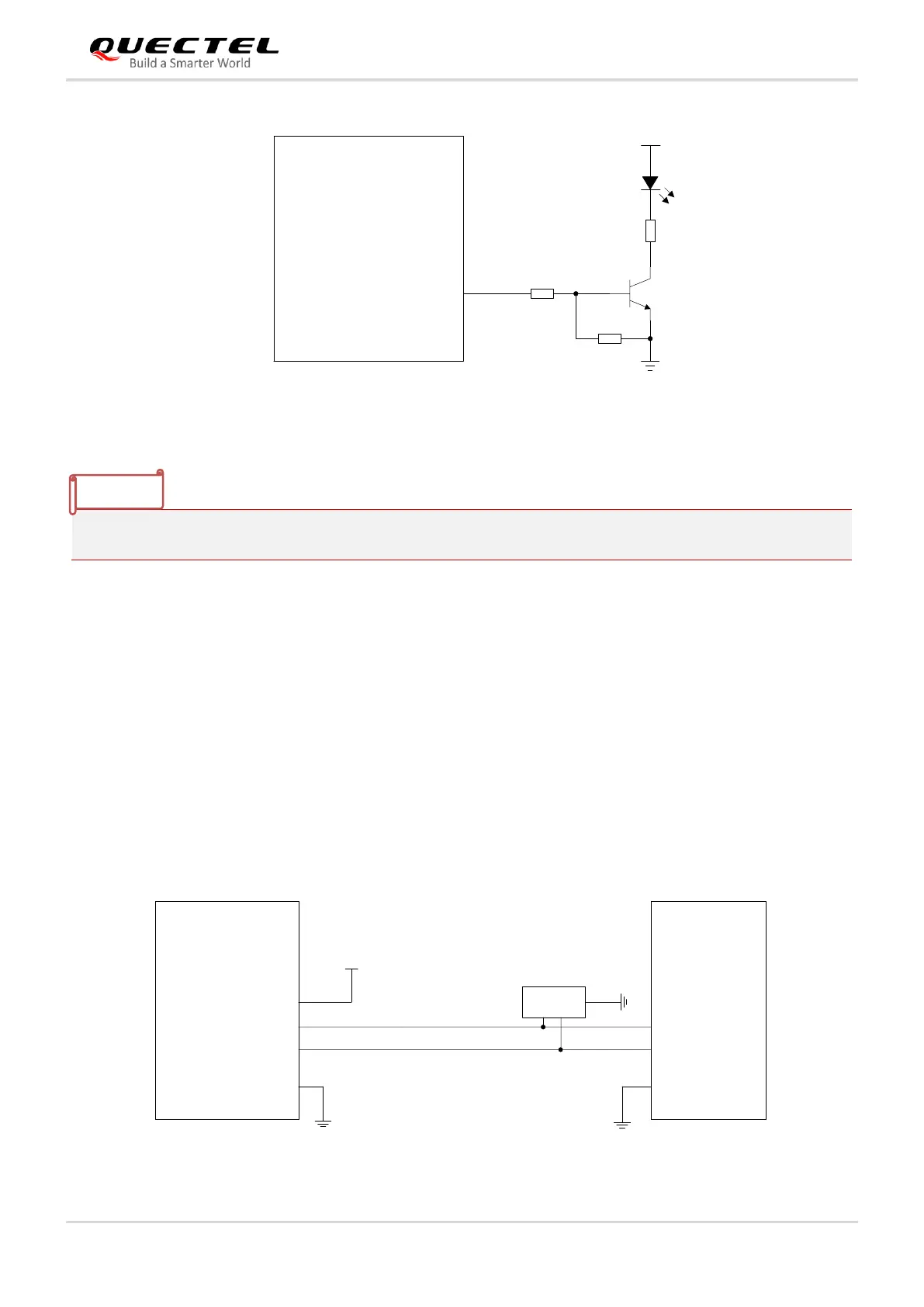

Figure 10: Compatible Reference Design for NETLIGHT
The NETLIGHT function of BC660K-GL is under development.
4.6. USB Interface
BC66 has a USB interface which conforms to USB 1.1 specifications and supports full speed (12 Mbps)
mode. Supporting USB serial drivers for Windows/Linux operating systems, the interface can be used for
software debugging and software upgrade. For more details, see document [1].
BC660K-GL does not support USB function.
The following is a reference design for the USB interface of BC66:
USB_DP RESERVED
USB_DM RESERVED
GND
USB_DP
USB_DM
GND
ESD Array
BC66/BC660K-GL
PC
VUSB_3V3 RESERVED
3.3 V
Figure 11: Compatible Reference Design for USB Interface
NOTE
