NB-IoT Module Series
BC66&BC660K-GL Compatible Design
BC66&BC660K-GL_Compatible_Design 26 / 30
5 Recommended Footprint and
Stencil Design
This chapter introduces the recommended compatible footprint and stencil design of BC66 and
BC660K-GL. All dimensions are measured in millimeter (mm), and the tolerance for dimensions is
±0.05 mm unless otherwise specified.
5.1. Recommended Compatible Footprint

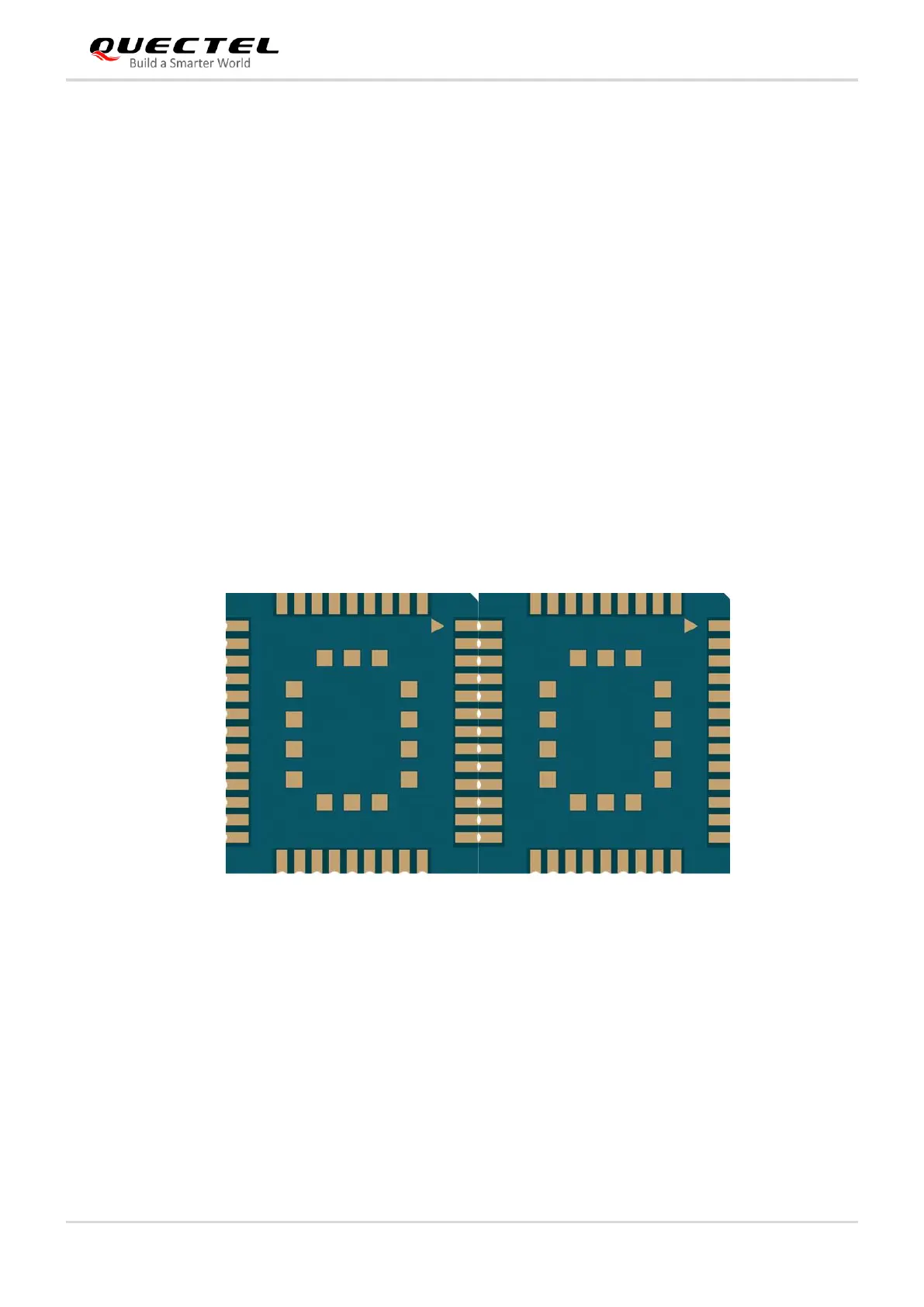

The following figure shows the bottom views of BC66 and BC660K-GL.
Figure 15: Bottom Views of BC66/BC660K-GL
