NB-IoT Module Series
BC95 Hardware Design
BC95_Hardware_Design Confidential / Released 21 / 51
Table 7: Reset Characteristics
Reset the module, active low

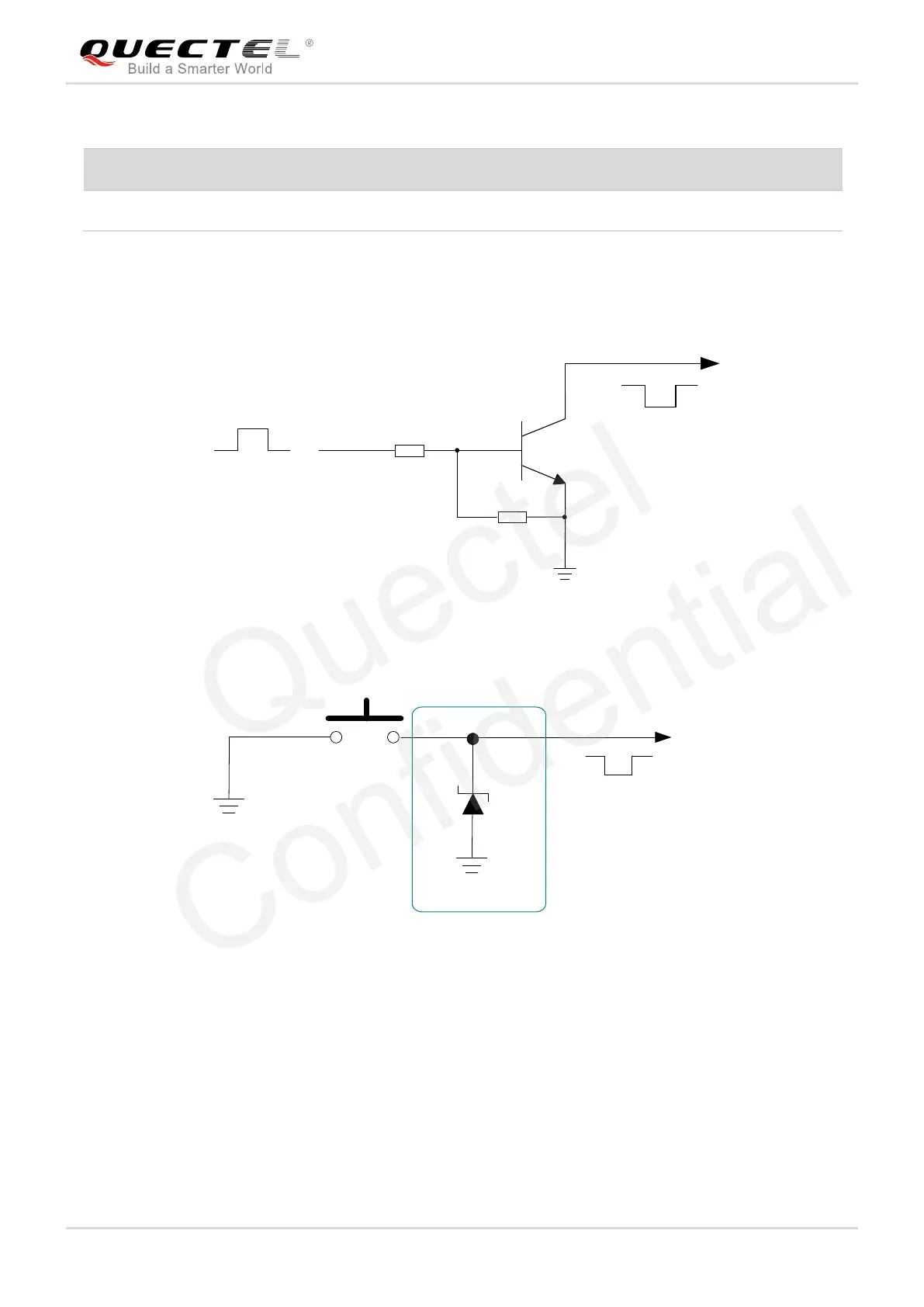

The recommended circuit of hardware resetting is shown as below. An open drain/collector driver or
button can be used to control the RESET pin.
Figure 6: Reference Circuit of RESET by Using Driving Circuit
Figure 7: Reference Circuit of RESET by Using Button
3.7. Power Saving
Based on system performance, the module consumes a maximum current of 5uA in PSM. PSM was
designed to reduce power consumption of the module and improve battery life. The following figure shows
the power consumption of the module in different modes.
