6 Mechanical Dimensions
This chapter describes the mechanical dimensions of the module. All dimensions are measured in mm.
The tolerances for dimensions without tolerance values are ±0.05mm.
6.1. Mechanical Dimensions of the Module

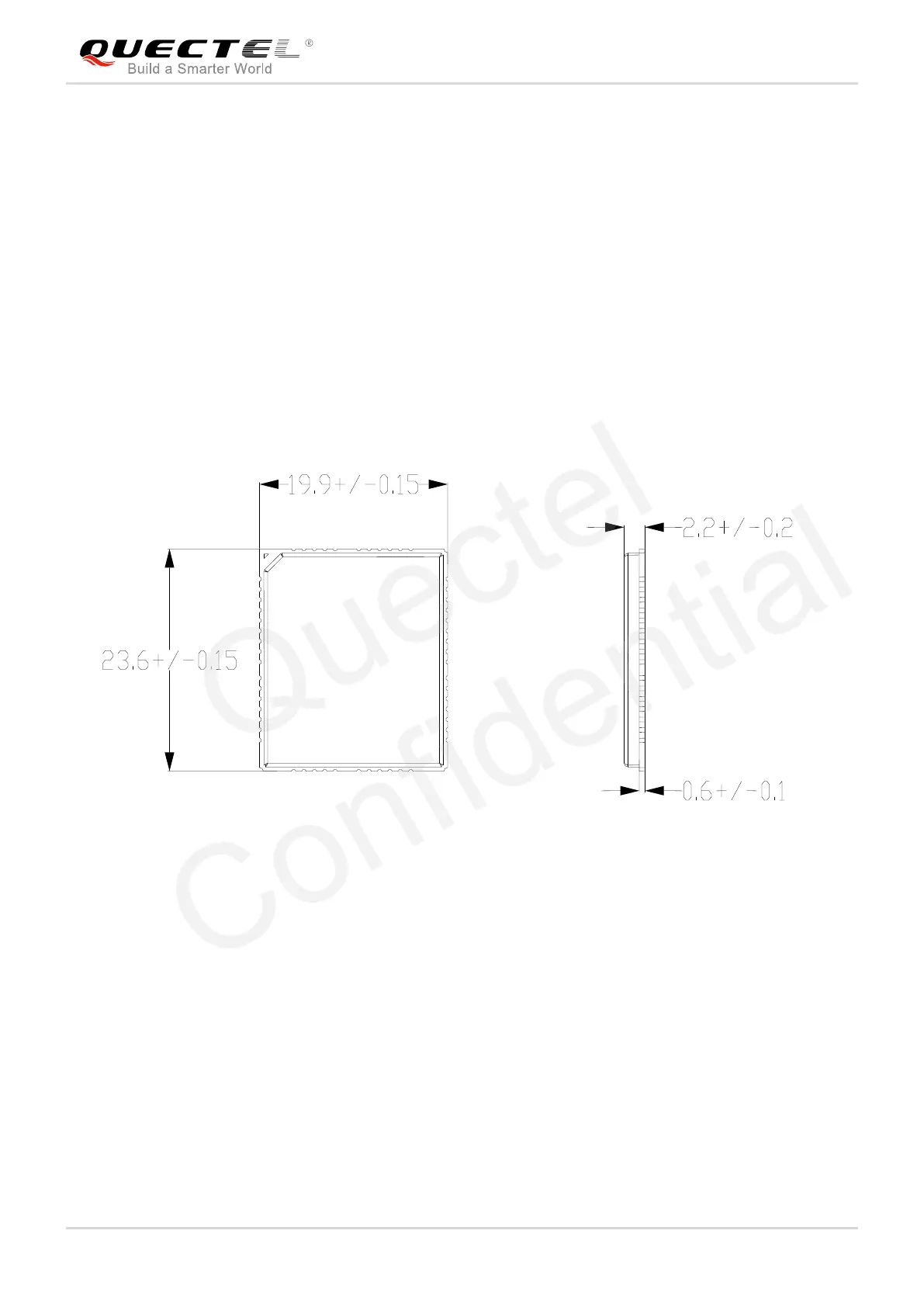

Figure 24: Module Top and Side Dimensions
