LTE Module Series
EM05 Hardware Design
EM05_Hardware_Design Confidential / Released 41 / 59
5 Antenna Interfaces
EM05 includes a main antenna interface, an Rx-diversity antenna interface which is used to resist the fall
of signals caused by high speed movement and multipath effect, and a GNSS antenna interface. The
antenna interfaces have an impedance of 50Ω. And the GNSS antenna interface is optional.
The antenna interfaces are shown below.

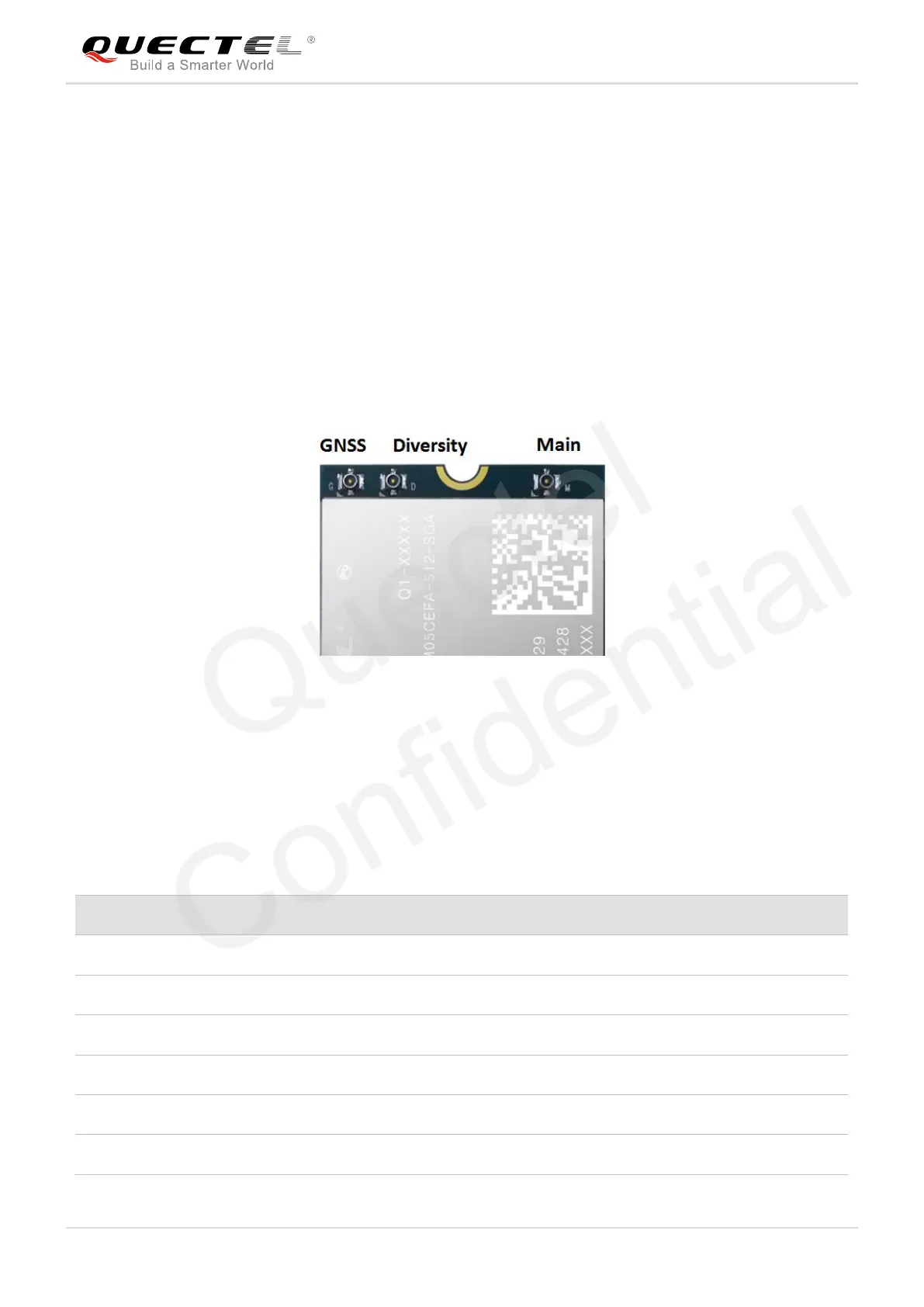

Figure 26: RF Antenna Connectors
5.1. Main/Rx-diversity Antenna Interfaces
Table 19: Module Operating Frequencies
3GPP Band
Transmit
Receive
Unit
B1
1920~1980
2110~2170
MHz
B3
1710~1785
1805~1880
MHz
B5
824~849
869~894
MHz
BC0
824~849
869~894
MHz
B8
880~915
925~960
MHz
B38
2570~2620
2570~2620
MHz
Quectel
Confidential
