43 / 50

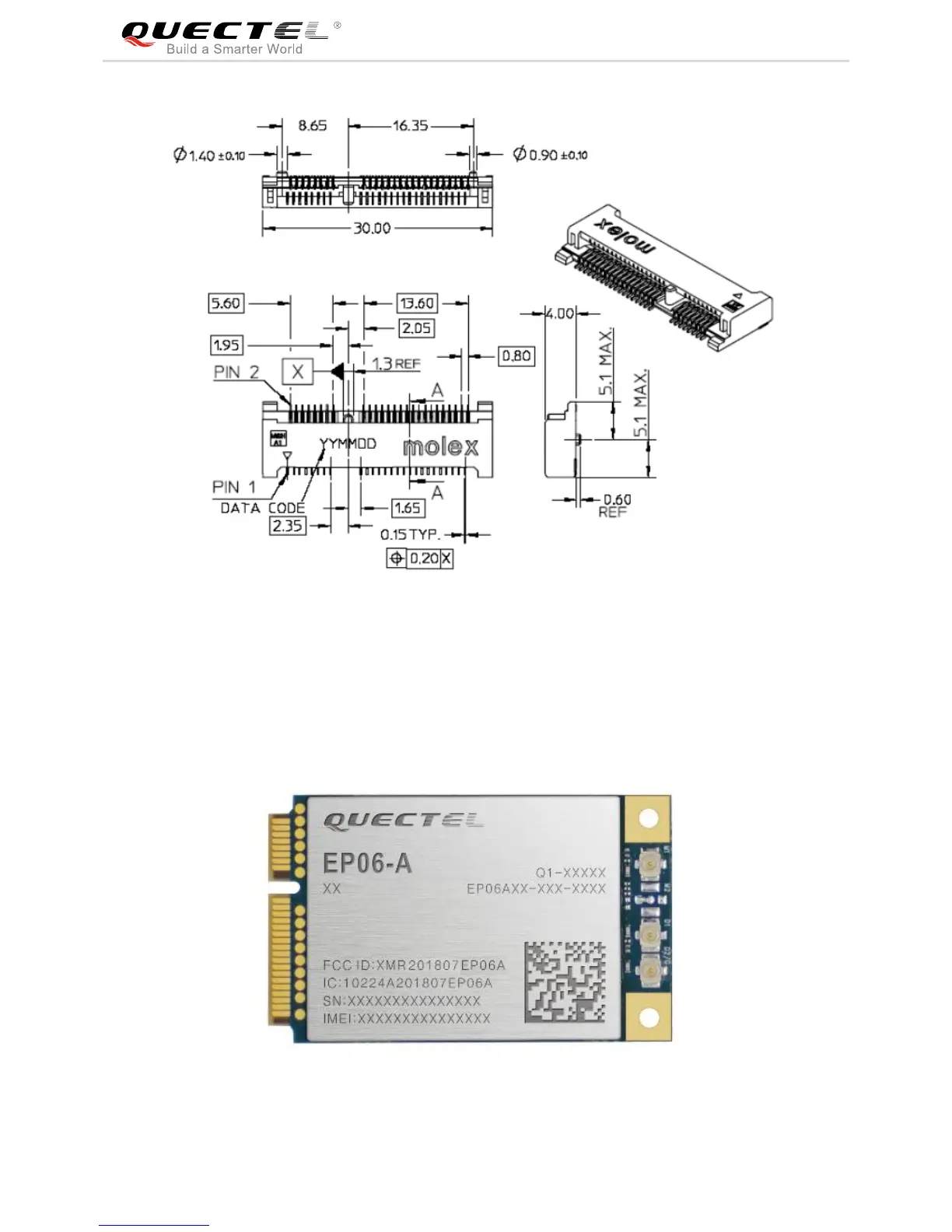

Figure 17: Dimensions of the Mini PCI Express Connector (Molex 679100002, Unit: mm)
5.4. Design Effect Drawings of the Module
Figure 18: Top View of the Module
