2.1.1.2. Receiver Reference Circuit
SPK1P
SPK1N
Differential layout
10pF
10pF
33pF
33pF
33pF
Close to speaker
GND
GND
10pF
Module
ESD
ESD

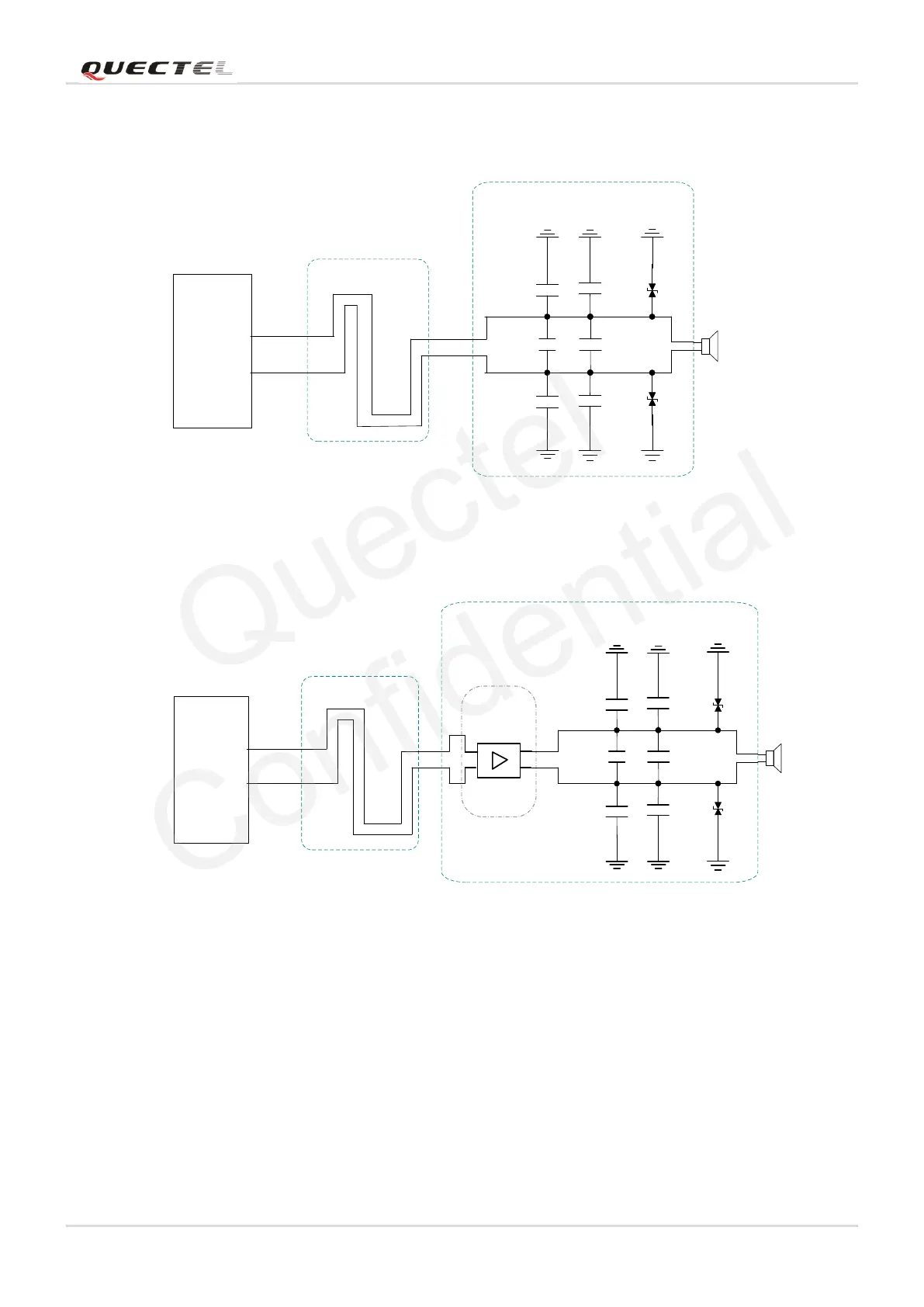

Figure 2: Receiver Reference Circuit for AOUT1
SPK1P
SPK1N
Differential layout
Amplifier
circuit
10pF
10pF
33pF
33pF
33pF
Close to speaker
GND
GND
10pF
Module
ESD
ESD
Figure 3: Receiver Reference Circuit with Audio Power Amplifier for AOUT1
