UMTS/HSPA/LTE Module Series
UMTS&LTE EVB User Guide
UMTS&LTE_EVB_User_Guide Confidential / Released 12 / 32

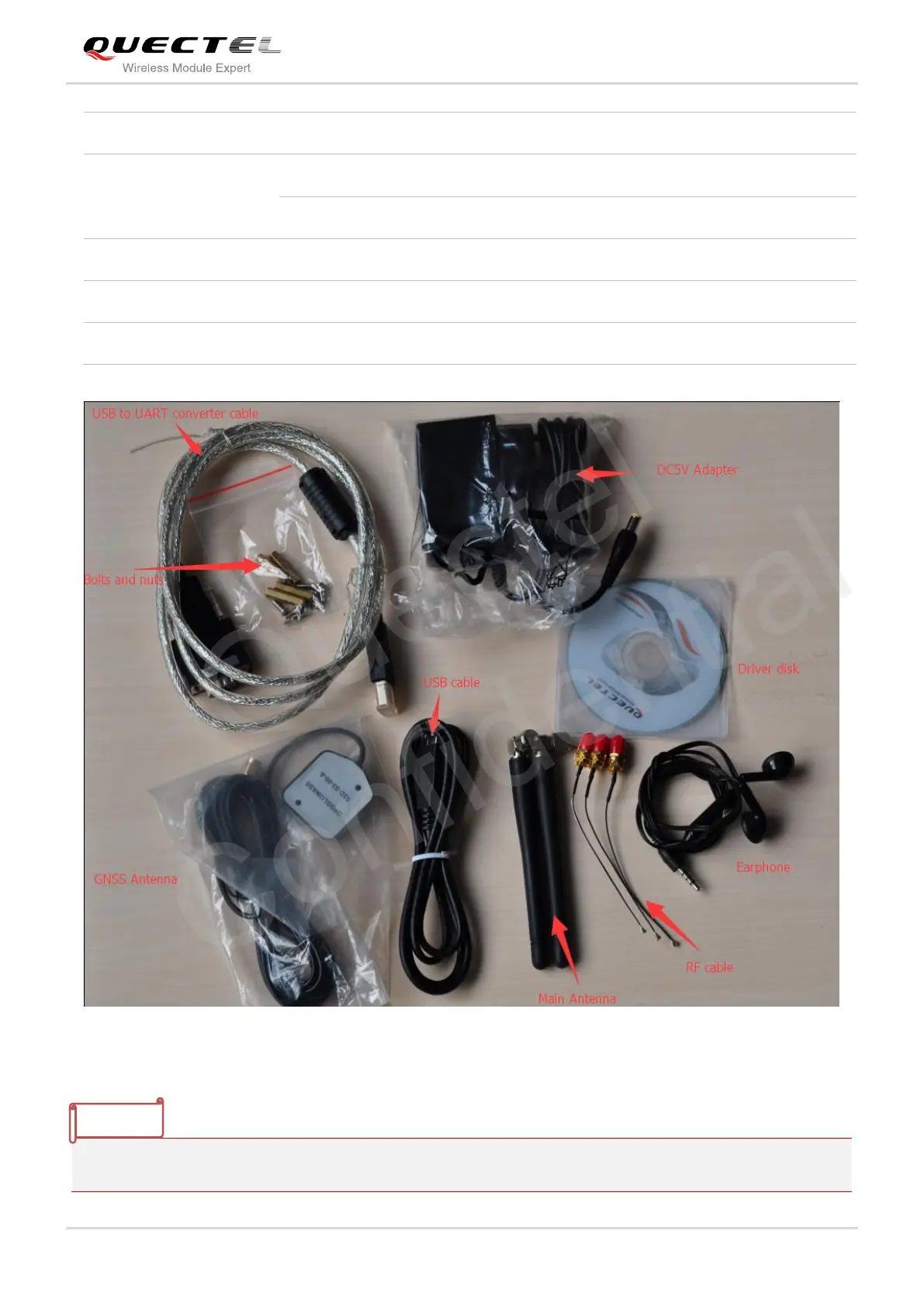

Figure 3: EVB Accessories
The main antenna can also be used as diversity reception.
RF cable
3
Antennas
Main Antenna
2
GNSS Antenna (passive)
1
Audio
Earphone
1
Disk
USB2.0 to RS232 driver and USB driver disk
1
Other
Bolts and nuts for fixing EVB
1
NOTE
Quectel
Confidential
