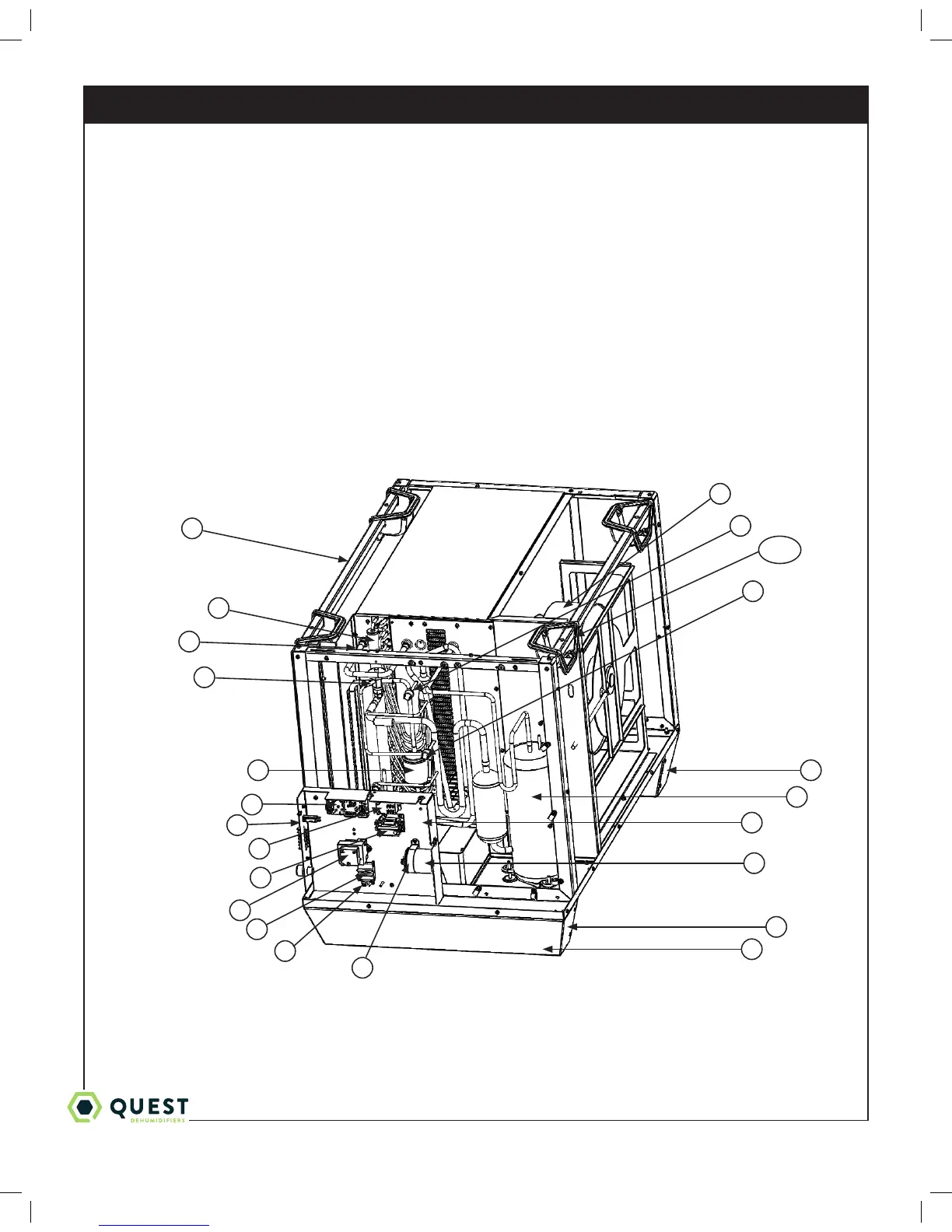

Service Parts List
Item Part No Description
1 4029507 CONTROL,HIGH PRESSURE
2 4029508 CONTROL,LOW PRESSURE
3 4029575 RELAY
4 4031101 CONTACTOR
5 4031406 TRANSFORMER
6 4035949-06 CAPACITOR, COMP.
7 4036164-20 TUBE,CU,CPLRY
8 4036559 CIRCUIT BREAKER
9 4036965 CLAMP,CAPACITOR
10 4037221-06 CAPACITOR
11 4037699 THERMISTOR
12 4037701 CPRSR
13 4037702 FILTER,DRIER
14 4037703-04 COIL,EVAP
Item Part No Description
15 4037704-02 COIL,CONDENSER
16 4037707 TXV,3 TON
17 4037708 FAN,MOTORIZED IMPELLER
18 4037728 CORD
19 4038135 HANDLE,POCKET
20 4038136 BEZEL,HANDLE
21 4038178 WIRE HARNESS
22 4038079 LUG,GROUND
23 4038219 FOOT,RUBBER,1.25” DIA
24 4038225-01 BRACKET,FOOT,RIGHT
25 4038226-01 BRACKET,FOOT LEFT
26 4038215 BLOCK, WIRING
27 4038502 CONTROL ASSY
28 4038233 FILTER
29 4038644 KIT, DRAINTRAP
PART NO. QTY. DESCRIPTION
4020175 1 Controller, Humidity
4028531 1 DEH 3000R Control, Remote
PART NO. QTY. DESCRIPTION
4038643 1 Kit, Pump
4038642 1 Kit, Intake Duct
4038641 1 Kit, Exhaust Duct
Optional Parts List
1
17
2
19,20
6
23
24
25
10
12
3
13
14
28
15
16
8
27
9
4
5
26
22
