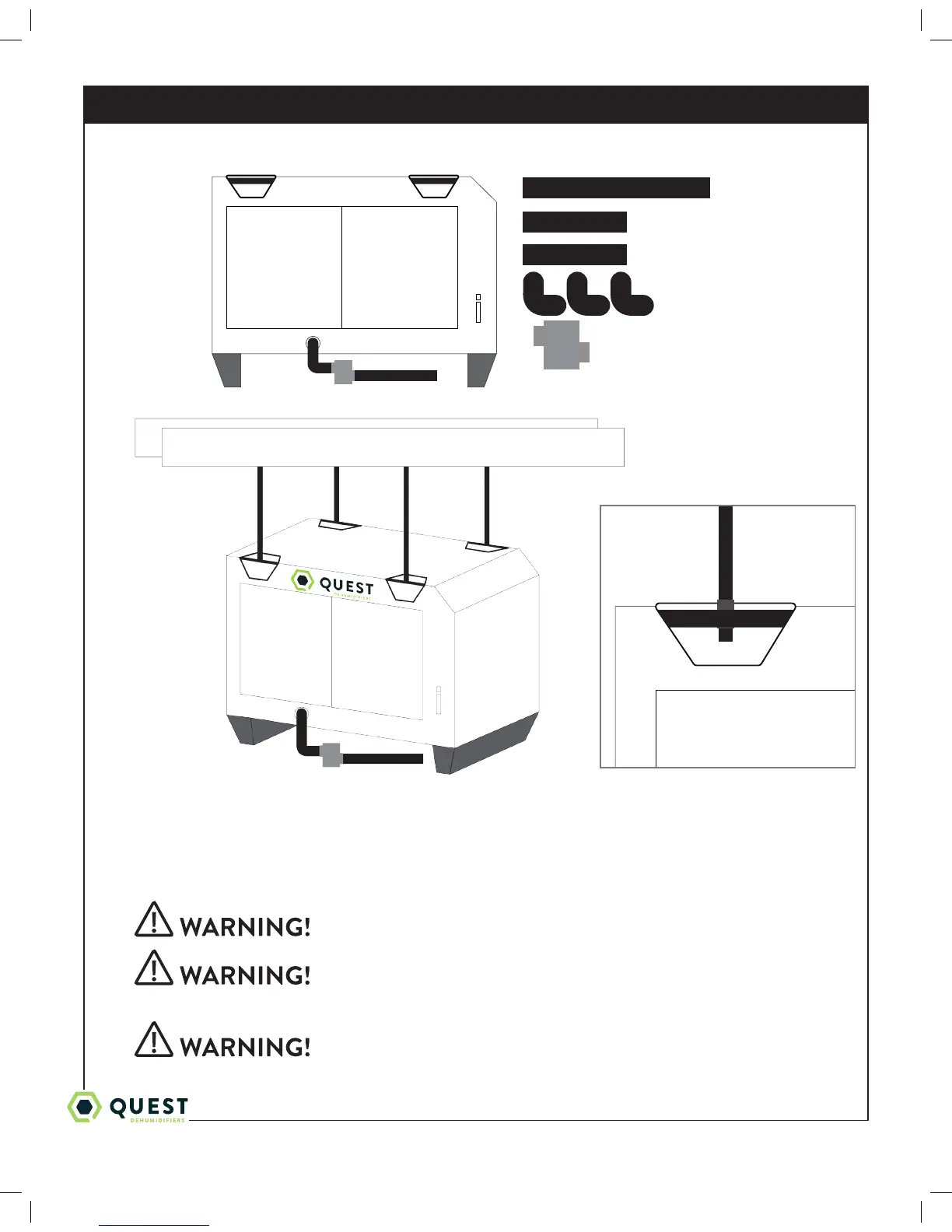

4.4 Hanging Diagram
Hanging installation must meet all state and local codes.
Installation should be done by a qualified agency in accordance with
these instructions. The qualified service agency installing this high
eciency refrigeration system is responsible for the installation.
Check the supporting structure to be used to verify that it has sucient
load carrying capacity to support the weight of the unit. Suspend the
unit only from the threaded nut retainers. Do NOT suspend from the
cabinet. Recommended maximum hanger rod is 6 feet (1.8m)
1 - Check ball style trap
2 - 2 1/2” x 3/4” sch40 pvc pipe
1 - 5” x 3/4” sch40 pvc pipe
2 - 90° glue in elbow 3/4”
Parts Needed: 4 pieces 3/8” threaded rod
4 - 3/8” threaded jam nuts
Instructions: Thread jam nut onto threaded rod
Screw threaded rod into handles
Tighten jam nuts to handle to prevent movement
