BTQ110/1258 - Maintenance
Maintenance operations to be performed once a year
Follow the points below:
• Clean propeller (15), tunnel and gearleg (19).
• Replace the anode (32) (carry out this operation more often if needed).
• Replace the propeller if damaged or worn out.
• Check the tightness of all screws.
• Ensure that there is no water seepage inside.
• Check that all electrical connections are well tightened and oxide-less.
• Check that the batteries are in good conditions.
WARNING: do not paint the anode (32), the sealing and the gearleg’ shaft where the propeller is lodged.
1
10
3
4
5
8
9
2
11
12
13
14
6
7
16
16
15
17

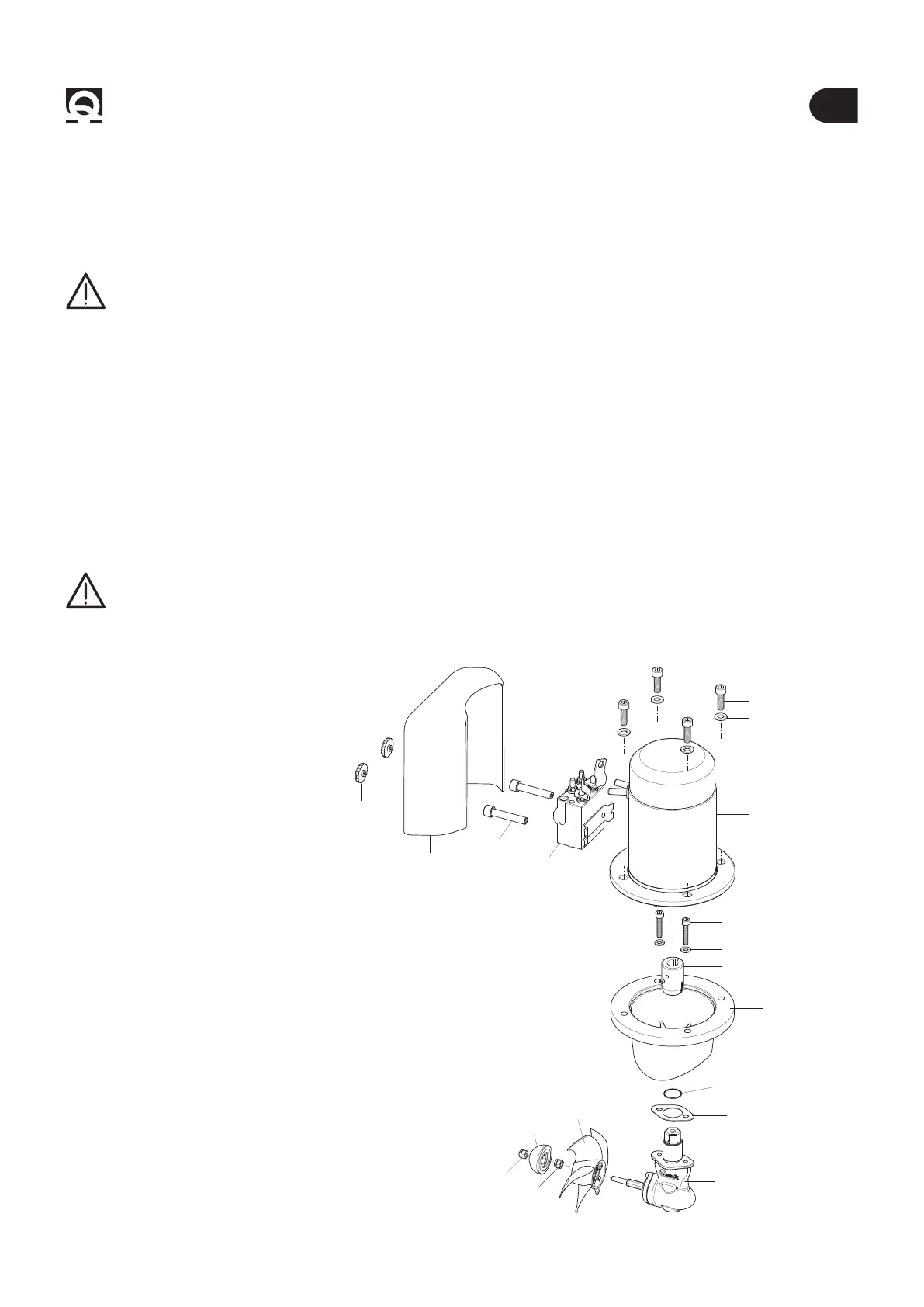

NR. DESCRIPTION
1 MOTOR MOUNTING SCREW
2 MOTOR MOUNTING WASHER
3 MOTOR 1,3KW 12V
4 REVERSING CONTACTOR UNIT T6411-12
5 CARTER “A” SPACER
6 CARTER REVERSING CONTACTOR UNIT
7 FASTENERS CARTER
REVERSING CONTACTOR UNIT
8 GEARLEG MOUNTING SCREW
9 WASHER
10
ELASTIC COUPLING HALVES
BTQ 110-125 PL HEXAG
11 MOTOR FLANGE
12 O-RING
13 GEARLEG GASKET
14 GEARLEG
15 PROPELLER
16 SELF-BRAKING NUT
17 ANODE
8.0 - BTQ110 Maintenance
Quick
®
Thrusters are made in materials that are resistant to the sea environment: In any case, it is indispensable to periodi-
cally remove salt deposits that form on the outer surfaces to avoid corrosions and consequent system inefciency.
ACCORDING TO THE USE WE RECOMMEND CHECKING PERIODICALLY THE OIL SEALS AND IF NECESSARY
REPLACING THEM.
BTQ 1102512
F
WARNING: make sure that the power supply to the electric motor is not switched on when maintenance opera-
tions are carried out.
