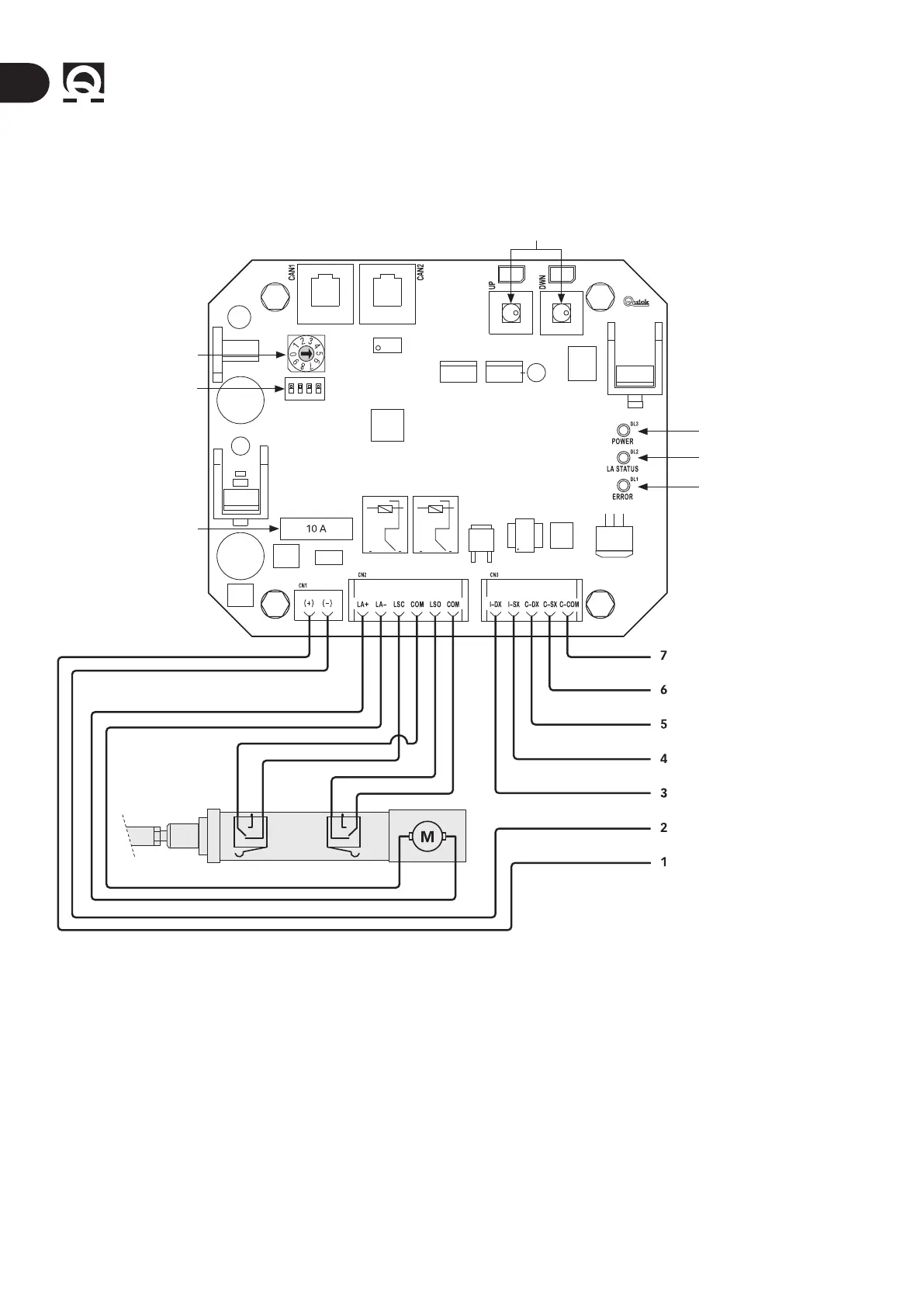

5 - Wiring diagram
5.1 - RTC R1 board
Actuator current
rotary selector
Dip-Switch for
option selection
Actuator fuse
Manual movement buttons
Green LED for CAN bus connection
power supply
Two-colour LED for actuator status
Red LED for problem reporting
Linear actuator
Red
Black
Yellow
Green
Red
White
Reversing contactor unit negative
To the left contactor
To the right contactor
Contact 2 QAJ female connector
Contact 1 QAJ female connector
Power Supply Negative
Power Supply Positive
