9 - Use
As with installation, at the end of this product life, dismantling must be carried out
by qualied personnel.
This product is made up of various materials, some can be recycled and others must be suitably disposed of; enquire about the
recycling or disposal systems provided for by local regulations for this product category.
Some parts of the product may contain pollutants or hazardous substances that, if dispersed, may be harmful to the
environment and human health.
As indicated by the symbol on the side, it is forbidden to dispose of this product as domestic waste.
Separate the products for disposal in accordance with the regulations in force in your area or return the product to
the seller when purchasing a new equivalent product.
Local regulations may impose severe penalties for the improper disposal of this product.
10 - Maintenance
WARNING: Cut off the power to the retractable thruster.
ACTUATOR
LABEL
SLOTTED SCREW

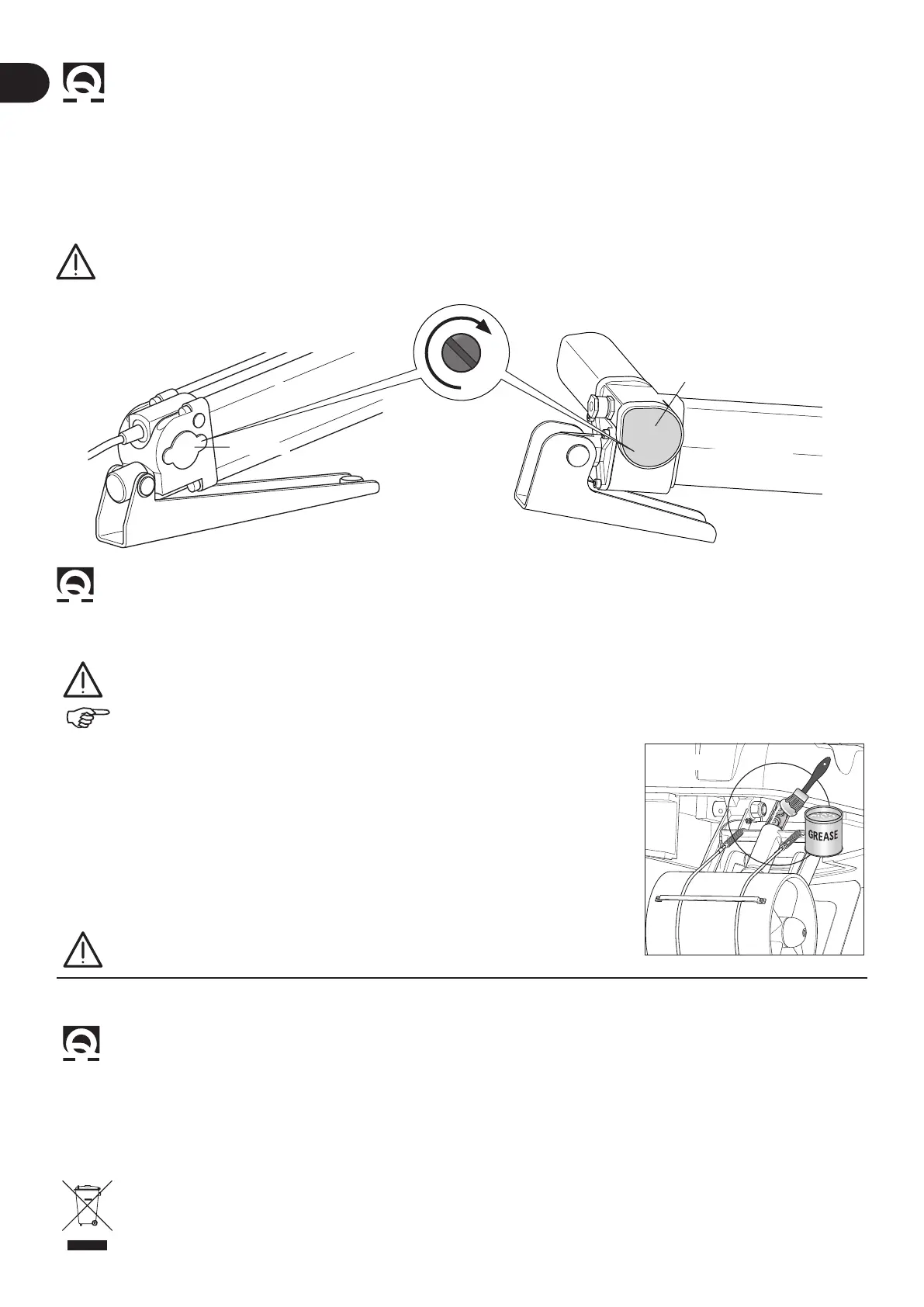

9.1 - Manual closing of the thruster in case of emergency
Ø140/Ø185
Ø250/300
There is a slotted screw on the actuator, under the label (Ø185) or under the cover (Ø250/Ø300); turn it clockwise to close the system.
ACTUATOR
PLASTIC COVER
BTR Series
BTR Series
Quick
®
Thrusters are made in materials that are resistant to the sea environment: in any case, it is indispensable to periodically
remove salt deposits that form on the outer surfaces to avoid corrosions with consequent system inefciency.
WARNING: make sure that the power supply to the electric motor is not switched on when maintenance operations
are carried out.
DEPENDING ON USE, PERIODICALLY CHECK THE TIGHTNESS OF THE OIL SEALS AND REPLACE THEM IF
NECESSARY.
Dismantle once a year, following the points below:
• Clean propellers, tunnel and gearleg.
• Replace the propellers if damaged or worn out.
• Replace the anodes (replace more frequently if necessary) and, if possible, lubricate the
CV joint with marine grease (g. 26).
• Check the tightness of all screws.
• Ensure that there is no water seepage inside.
• Check that all electrical connections are well tightened and oxide-less.
• Check that the batteries are in good conditions.
• Eliminate any graphite residues produced by the normal wear of the motor brushes.
Fig. 26
WARNING: do not paint the anodes, the seals and the gearleg shafts where the
thrusters are lodged.
