8 - Electrical connection
8.0 - Connection system devices
RC REMOTE CONTROL MC
2
The RC Remote Control MC
2
touch is the dashboard device that is used the stabilizer monitoring.
The panel features an LCD display to access the controls to turn the stabilizer on/off,
and to display its status and correct operation (multi-station compatible).
Connection by means of a DB connection cable (CAN-BUS).
RC MC
2
is supplied a drill template. Available in sizes 5" graphic display. IP66.
* Not supplied
The stabilizer is supplied already pre-wired; each connector has a tag with instructions aimed at facilitating electrical
connections.
DO NOT MODIFY THE OUTPUT POSITION OF THE STABILIZER’S PREWIRED CABLES.
Operation range: 12 Vdc - Frequency 50/60 Hz.

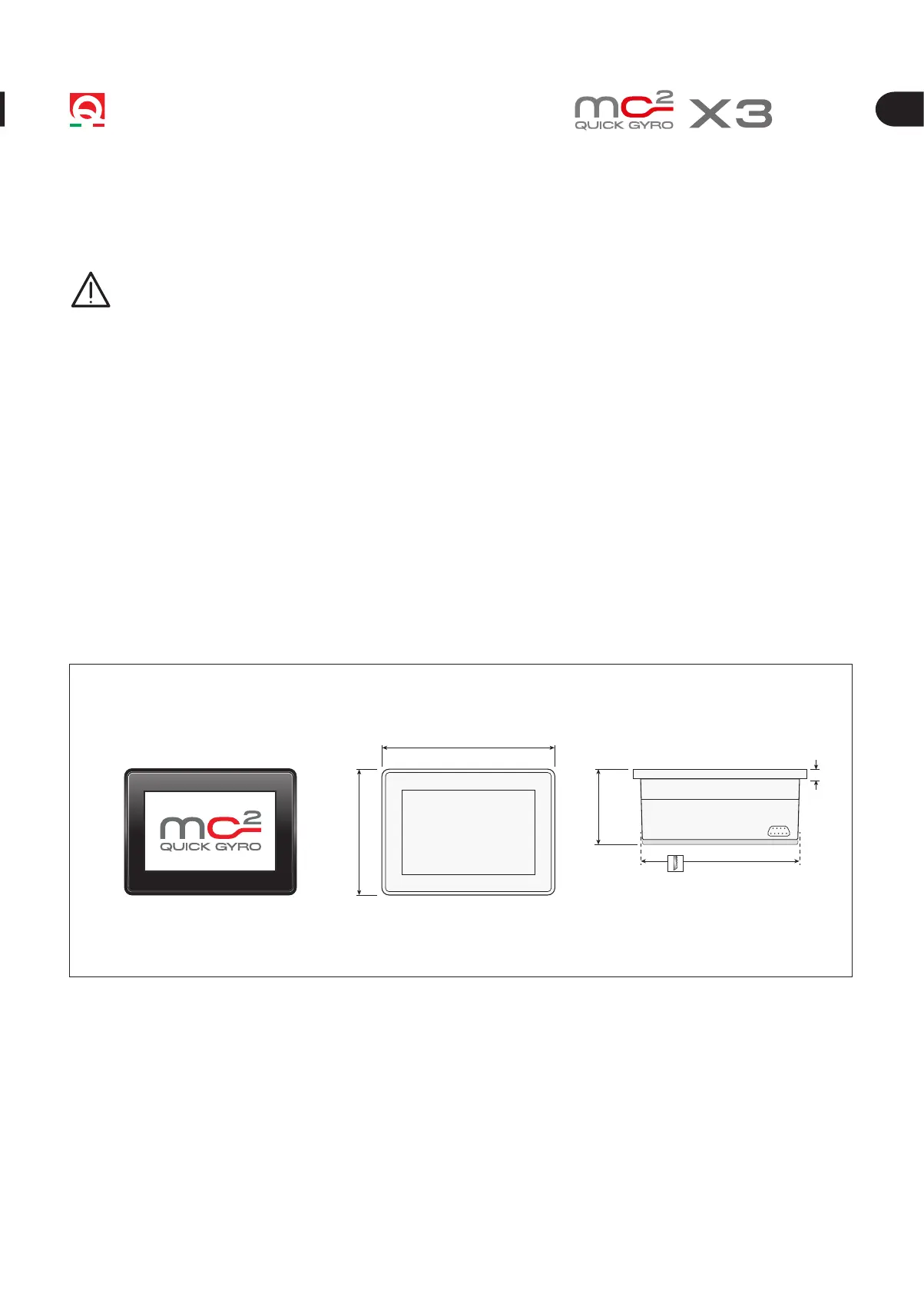

8.1 - Devices dimensions
RC REMOTE CONTROL MC
2
*
147 (5
25
/32)
107 (4
7
/32
)
8 (
5
/16
)
5”
=
64 (2
33
/64
)
136 x 96 (5
23
/64 x 3
25
/32)
Dimensions in mm (inch)* Not supplied.
