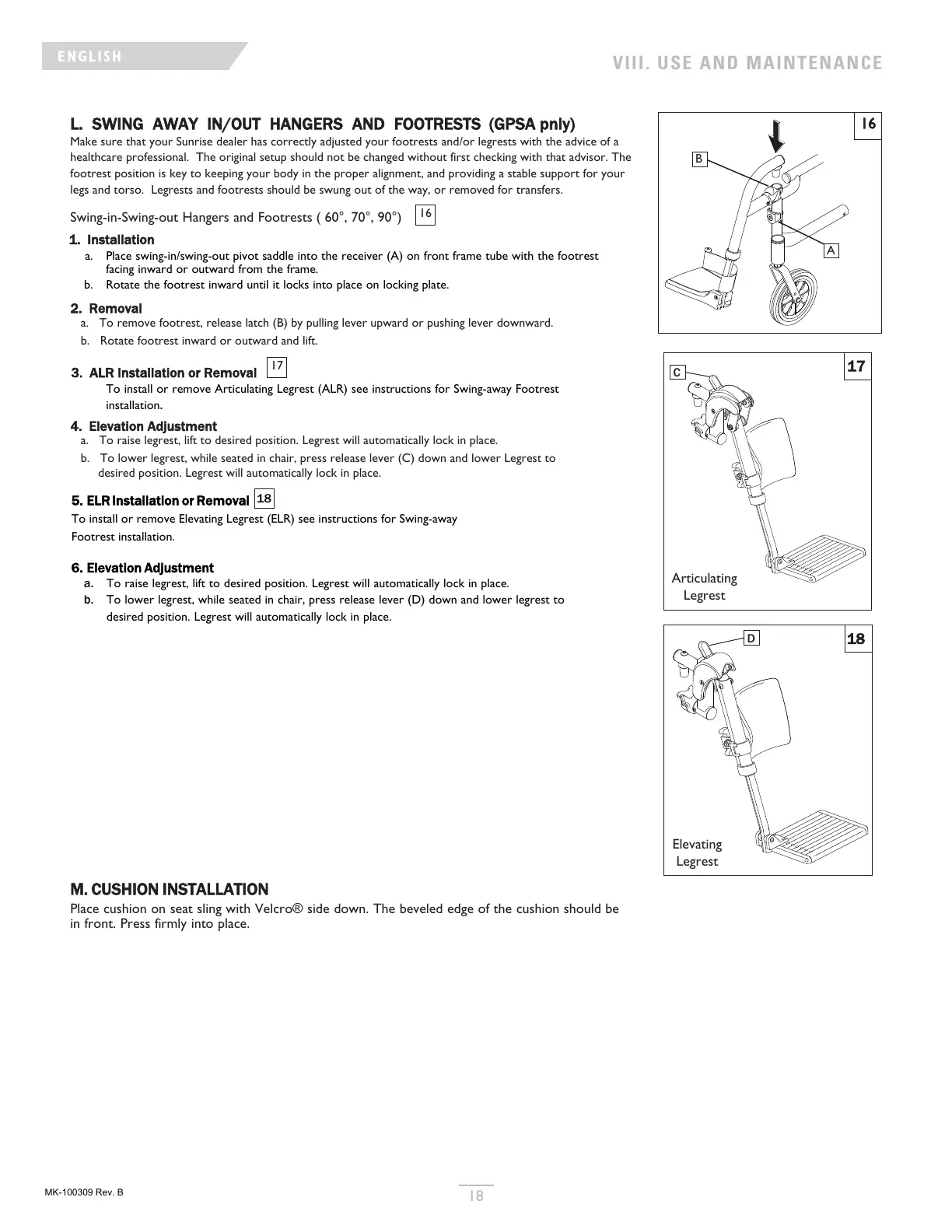

Swing-in-Swing-out Hangers and Footrests ( 60°, 70°, 90°)
M. CUSHION INSTALLATION
Place cushion on seat sling with Velcro® side down. The beveled edge of the cushion should be
in front. Press firmly into place.
16
VI II . USE A N D M A I N TE NA NC E
16
A
B
Elevating
Legrest
18
D
Articulating
Legrest
1
7
C
a.Place swing-in/swing-out pivot saddle into the receiver (A) on front frame tube with the footrest
facing inward or outward from the frame.
b.Rotate the footrest inward until it locks into place on locking plate.
To install or remove Articulating Legrest (ALR) see instructions for Swing-away Footrest
installation.
5. ELR Installation or Removal
18
To install or remove Elevating Legrest (ELR) see instructions for Swing-away
Footrest installation.
6. Elevation Adjustment
a. To raise legrest, lift to desired position. Legrest will automatically lock in place.
b. To lower legrest, while seated in chair, press release lever (D) down and lower legrest to
desired position. Legrest will automatically lock in place.
L. SWING AWAY IN/OUT HANGERS AND FOOTRESTS (GPSA pnly)
Make sure that your Sunrise dealer has correctly adjusted your footrests and/or legrests with the advice of a
healthcare professional. The original setup should not be changed without first checking with that advisor. The
footrest position is key to keeping your body in the proper alignment, and providing a stable support for your
legs and torso. Legrests and footrests should be swung out of the way, or removed for transfers.
3. ALR Installation or Removal
1. Installation
2. Removal
a.To remove footrest, release latch (B) by pulling lever upward or pushing lever downward.
b.Rotate footrest inward or outward and lift.
17
4. Elevation Adjustment
a.To raise legrest, lift to desired position. Legrest will automatically lock in place.
b.To lower legrest, while seated in chair, press release lever (C) down and lower Legrest to
desired position. Legrest will automatically lock in place.
