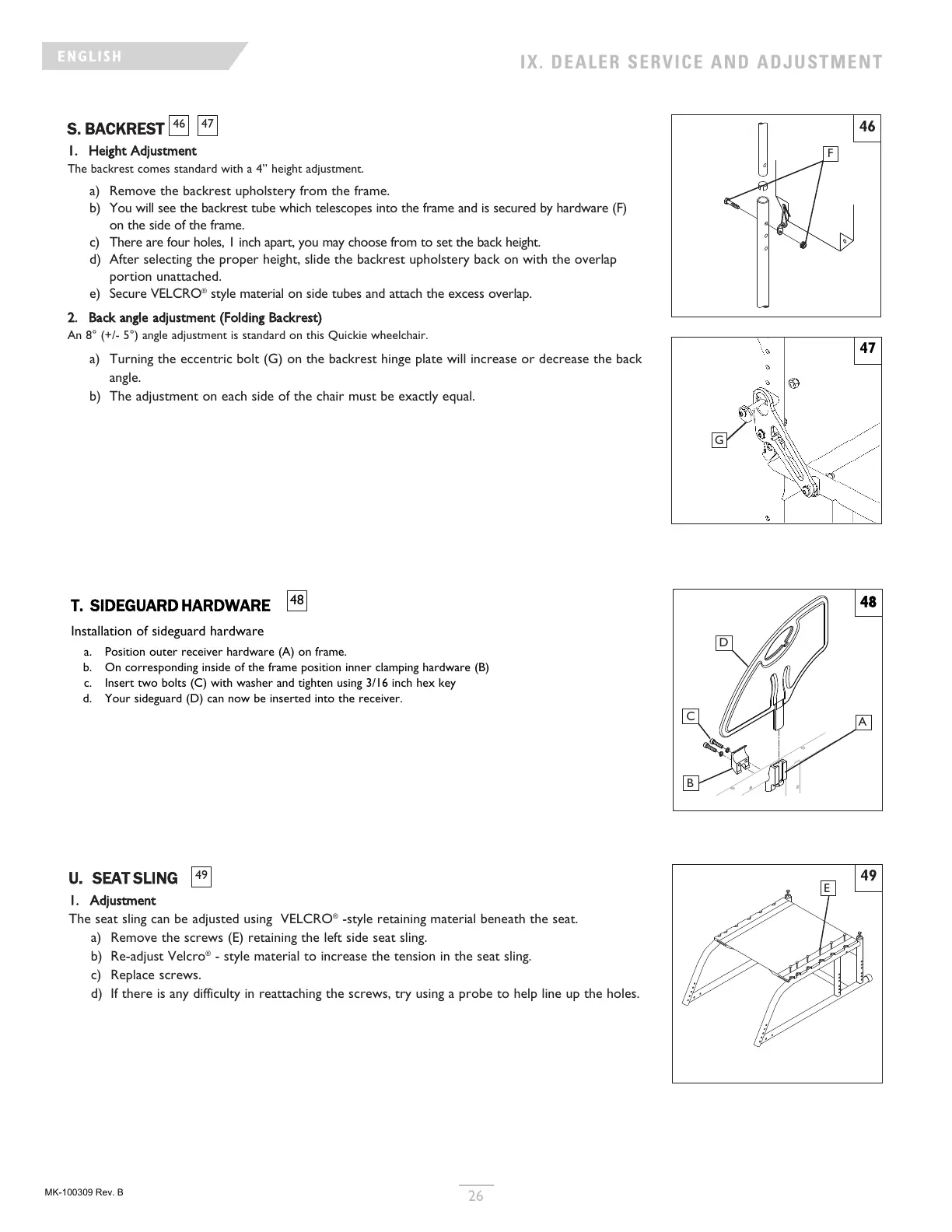

IX . DEA LE R S E R V I C E A ND A DJ US TM EN T
T. SIDEGUARD HARDWARE
Installation of sideguard hardware
a.Position outer receiver hardware (A) on frame.
b.On corresponding inside of the frame position inner clamping hardware (B)
c.Insert two bolts (C) with washer and tighten using 3/16 inch hex key
d.Your sideguard (D) can now be inserted into the receiver.
U. SEAT SLING
1.Adjustment
The seat sling can be adjusted using VELCRO
®
-style retaining material beneath the seat.
a)Remove the screws (E) retaining the left side seat sling.
b)Re-adjust Velcro
®
- style material to increase the tension in the seat sling.
c)Replace screws.
d)If there is any difficulty in reattaching the screws, try using a probe to help line up the holes.
49
48
49
E
48
D
B
C
A
46
F
47
G
S. BACKREST
1.Height Adjustment
The backrest comes standard with a 4” height adjustment.
a)Remove the backrest upholstery from the frame.
b)You will see the backrest tube which telescopes into the frame and is secured by hardware (F)
on the side of the frame.
c)There are four holes, 1 inch apart, you may choose from to set the back height.
d)After selecting the proper height, slide the backrest upholstery back on with the overlap
portion unattached.
e)Secure VELCRO
®
style material on side tubes and attach the excess overlap.
2.Back angle adjustment (Folding Backrest)
An 8° (+/- 5°) angle adjustment is standard on this Quickie wheelchair.
a)Turning the eccentric bolt (G) on the backrest hinge plate will increase or decrease the back
angle.
b)The adjustment on each side of the chair must be exactly equal.
4746
