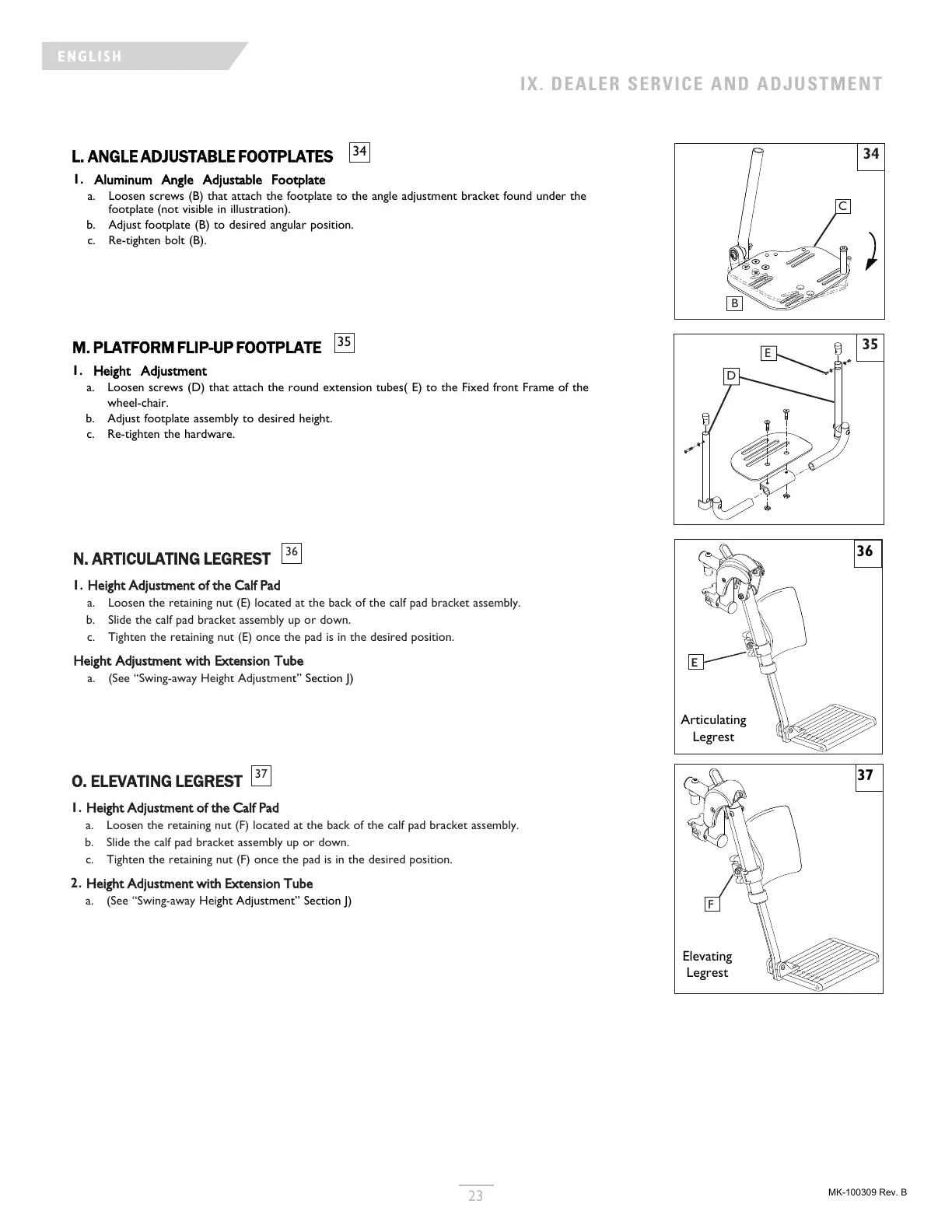

IX . DEA LE R S E R V I C E A ND A DJ US TM EN T
N. ARTICULATING LEGREST
1. Height Adjustment of the Calf Pad
a.Loosen the retaining nut (E) located at the back of the calf pad bracket assembly.
b.Slide the calf pad bracket assembly up or down.
c.Tighten the retaining nut (E) once the pad is in the desired position.
Height Adjustment with Extension Tube
a.(See “Swing-away Height Adjustment” Section J)
O. ELEVATING LEGREST
1. Height Adjustment of the Calf Pad
a.Loosen the retaining nut (F) located at the back of the calf pad bracket assembly.
b.Slide the calf pad bracket assembly up or down.
c.Tighten the retaining nut (F) once the pad is in the desired position.
2. Height Adjustment with Extension Tube
a.(See “Swing-away Height Adjustment” Section J)
36
37
Articulating
Legrest
36
E
Elevating
Legrest
37
F
L. ANGLE ADJUSTABLE FOOTPLATES
1.
Aluminum Angle Adjustable Footplate
a.Loosen screws (B) that attach the footplate to the angle adjustment bracket found under the
footplate (not visible in illustration).
b.Adjust footplate (B) to desired angular position.
c.Re-tighten bolt (B).
M. PLATFORM FLIP-UP FOOTPLATE
1.
Height Adjustment
a.Loosen screws (D) that attach the round extension tubes( E) to the Fixed front Frame of the
wheel-chair.
b.Adjust footplate assembly to desired height.
c.Re-tighten the hardware.
34
35
34
C
B
35
E
D
MK-100309 Rev. B
