Quickie Q7 User Manual

112786 Rev. D
4
ENGLISH
III. YOUR CHAIR AND ITS PARTS
III. YOUR CHAIR AND ITS PARTS

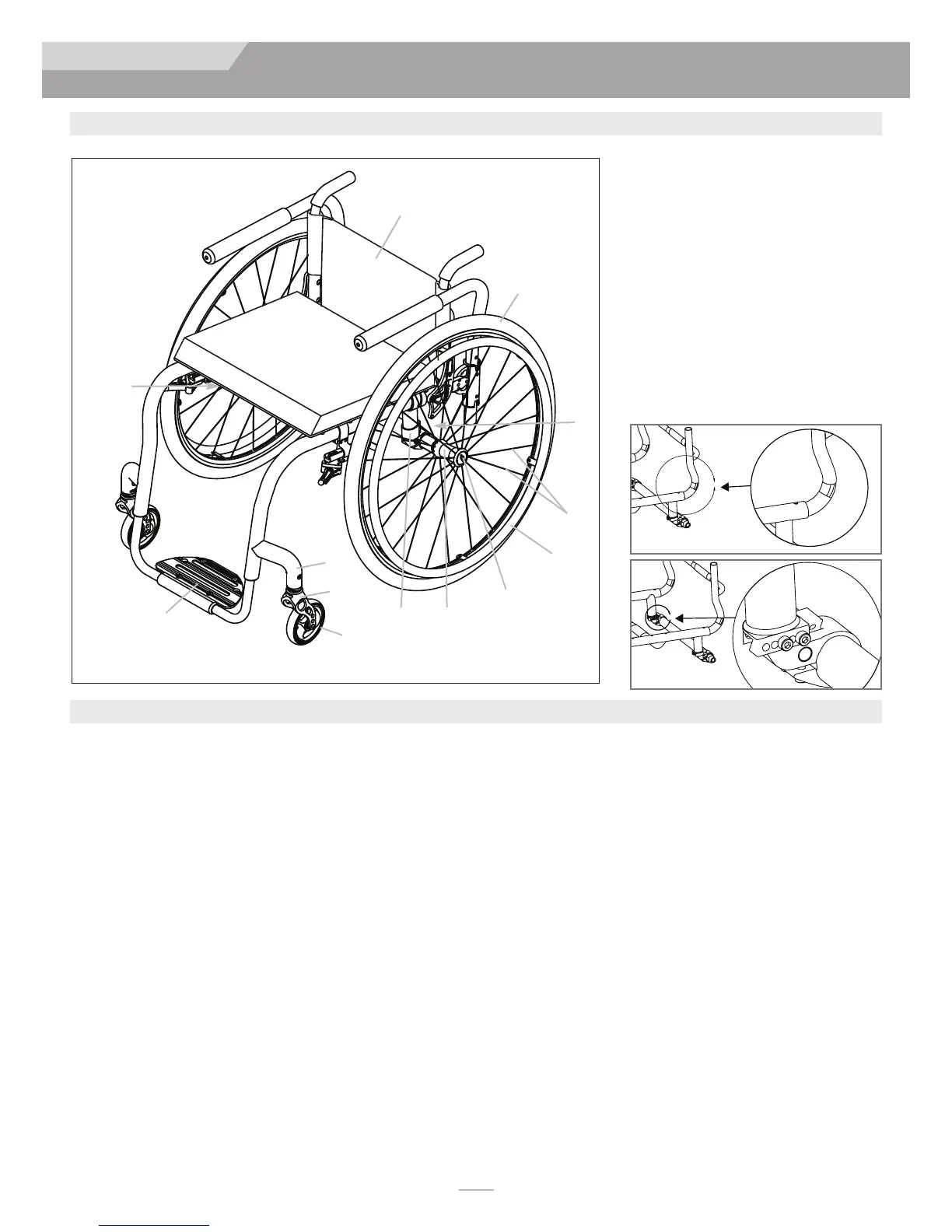

QUICKIE Q7 ADJUSTABLE AND ACTIVE RIGID
1. Backrest
2. Tire
3
. Seat cushion
4. Seat sling (not shown)
5. Footrest
6. Spokes
7. Rear wheel hub
8. Quick-release axle
9. Handrim
10.Axle plate
11.Caster housing
12.Fork
13.Caster wheel
14.Camber tube (not shown)
All features may not be available with some chair setups
or in conjunction with another chair feature. Please
consult your authorized supplier for more information.
1
2
14
6
9
10
7
8
3
11
12
13
5
4
Adjustments
Caster angle, C of G, rear seat height, back
angle, footrest length, rear wheel spacing,
wheel locks, back height
Color
Quickie colors
Frame Dimensions
Frame width: Std 12" - 20"
Seat depth: 12" - 20"
Backrest
Non-folding
Folding Lock Down Angle Adjustable
Height-adjustable & angle: 11"-14", 12"-16",
14"-18", 16"-20"
Fixed Height: 8"-20"
Opt– adjustable upholstery, vented adjustable
upholstery, folding push handles, tele-
scoping push handles
Footrest
Std– Tubular
Opt– Tubular w/Cover,
Angle Adjustable Platform,
ultra lite platform footrest
Casters
Std– 5" Low-profile Polyurethane
Opt– 4" Low-profile Poly,
4" Micro Light Up
4"x1" Aluminum Poly
4"x1.5" Aluminum soft Roll
3" Micro,
3" Micro Light Up
4", 5" & 6" x 1-1/2" wide poly
6" Poly
Frog Legs
Armrests
Opt– Padded Swing-Away
Opt– Single-Post Height-Adjustable
Axle Bracket
Std– Fore/Aft CG Adjustable Bracket
Opt Camber–
0°, 3°, 6°
Axles
Std– stainless steel
Opt– quad-release axle nuts
Anti-tip tubes
Opt– Rear anti-tip tubes
Standard rear wheels
Std– Lite spoke
Opt- Mag
Quickie Performance wheels
Opt– Spinergy, LX & Spox
Opt– Ultra lightweight
Opt– Mountain
Tire size
Std– 24", 25"
Opt– 20", 22", 25", 26"
Tire types
Std - Pneumatic, Full Poly
Opt - Airless insert, High-pressure clinchers
(24",26" only), Mountain bike (24" only),
Kik, Knobby V-TRAK, Schwalbe
Marathon Plus, Urban Assault,
Speed Run
Hand rims
Std– aluminum
Opt– plastic-coated,
Natural Fit, Natural Fit LT,
Spinergy Flex Rim
Wheel locks
High-push, high-pull, ergo scissor
Opt- compact
B
A
Active Rigid
